with Self-Locking Coupling
CONNECTOR DESIGNATOR:
F
MIL-DTL-38999 Series I and II
Basic Part Number
M85049/85
= Straight
M85049/86
= 45°
M85049/87
= 90°
––
= Detented
N
= Non-Detented
Shell Size
(Table I)
Entry Size
(Table I)
M85049/85
N
16
P
02
Finish
N
= Electroless Nickel
P
= Cadmium, Olive Drab over Electroless Nickel with
Polysulfide Sealant Strips
W
= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel
X
= Aluminum, Nickel Fluorocarbon Polymer
YP
= Aluminum, Pure Dense Electrodeposited Aluminum with Polysulfide Sealant Strips
Z
= Aluminum, Zinc-Nickel, Black
ZP
= Aluminum, Zinc Nickel with Polysulphide Sealant Strips
B
O-Ring Typ
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-99
E-Mail: sales@glenair.com
AS85049
AS85049/85, AS85049/86 and AS85049/87
Straight, 45° and 90° Banding Backshells
AS85049/85, AS85049/86 and AS85049/87
Straight, 45° and 90° Banding Backshells
with Self-Locking Coupling
B
AS85049
Shell
Size
08
10
12
14
16
18
20
22
24
A Thread
Class 2B
.438 - 28 UNEF
.562 - 24 UNEF
.688 - 24 UNEF
.813 - 20 UNEF
.938 - 20 UNEF
1.063 - 18 UNEF
1.188 - 18 UNEF
1.313 - 18 UNEF
1.438 - 18 UNEF
.860
.990
1.160
1.280
1.410
1.520
1.640
1.770
1.890
Shell
Size
08
10
12
14
16
18
20
22
24
E Dia
Cable Entry
Size 01
±.010 (0.30)
N/A
N/A
.312 (7.9)
.438 (11.1)
.500 (12.7)
.625 (15.9)
.625 (15.9)
.688 (17.5)
.750 (19.1)
1.
2.
3.
4.
© 2013 Glenair, Inc.

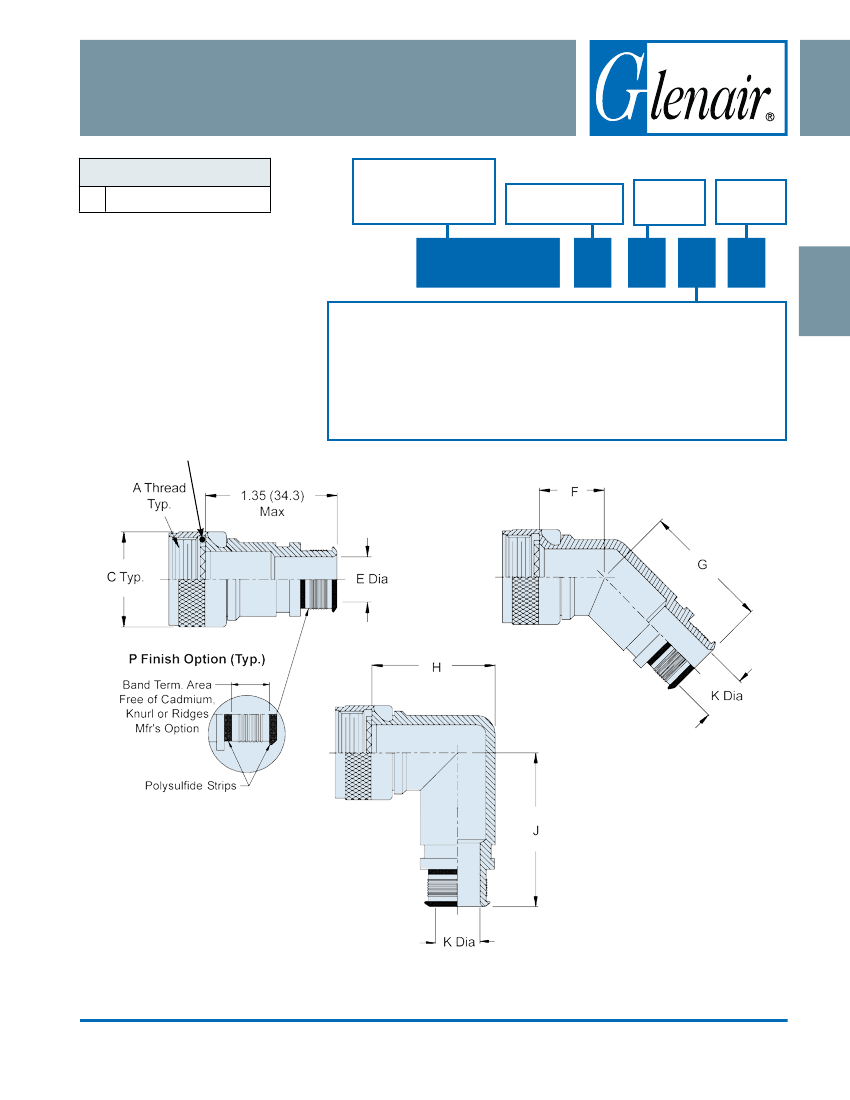

TABLE I: Shell Size, Cable Entry and Backshell Dimensions
C Dia
Max
(21.8)
(25.1)
(29.5)
(32.5)
(35.8)
(38.6)
(41.7)
(45.0)
(48.0)
F
Max
.870
.900
.920
.950
.980
.980
1.010
1.040
1.070
(22.1)
(22.9)
(23.4)
(24.1)
(24.9)
(24.9)
(25.7)
(26.4)
(27.2)
G
Max
1.160
1.190
1.210
1.240
1.260
1.270
1.300
1.330
1.350
(29.5)
(30.2)
(30.7)
(31.5)
(32.0)
(32.3)
(33.0)
(33.8)
(34.3)
H
Max
1.375
1.437
1.562
1.687
1.750
1.875
1.938
2.062
2.125
(34.9)
(36.5)
(39.7)
(42.8)
(44.5)
(47.6)
(49.2)
(52.4)
(54.0)
J
Max
1.375
1.437
1.562
1.687
1.750
1.875
1.938
2.062
2.125
(34.9)
(36.5)
(39.7)
(42.8)
(44.5)
(47.6)
(49.2)
(52.4)
(54.0)
TABLE II: Shell Size and
Cable Entry for Straight
Configuration Only
E Dia
Cable Entry
Size 02
±.010 (0.30)
.250
.312
.438
.562
.625
.750
.812
.938
1.000
(6.4)
(7.9)
(11.1)
(14.3)
(15.9)
(19.1)
(20.6)
(23.8)
(25.4)
TABLE III: Shell Size and
Cable Entry for 45° and 90°
Configurations Only
Shell
Size
08
10
12
14
16
18
20
22
24
K Dia
Cable Entry
Size 02
±.010 (0.30)
N/A
N/A
.312 (7.9)
.438 (11.1)
.500 (12.7)
.625 (15.9)
.625 (15.9)
.688 (17.5)
.750 (19.1)
K Dia
Cable Entry
Size 03
±.010 (0.30)
.250
.312
.438
.562
.625
.750
.812
.938
1.000
(6.4)
(7.9)
(11.1)
(14.3)
(15.9)
(19.1)
(20.6)
(23.8)
(25.4)
APPLICATION NOTES
Assembly identified with manufacturer’s name and part number, space permitting.
For complete dimensions, see the applicable Military Specification.
Metric dimensions (mm) are in parentheses.
For use with AS85049/128 Bands.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-100
E-Mail: sales@glenair.com
