HD14081BRP datasheet, PDF - EEWORLD Datasheet

HD14081BRP: Description4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, PDSO14, FP-14DN; Categorylogic logic; File Size62KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

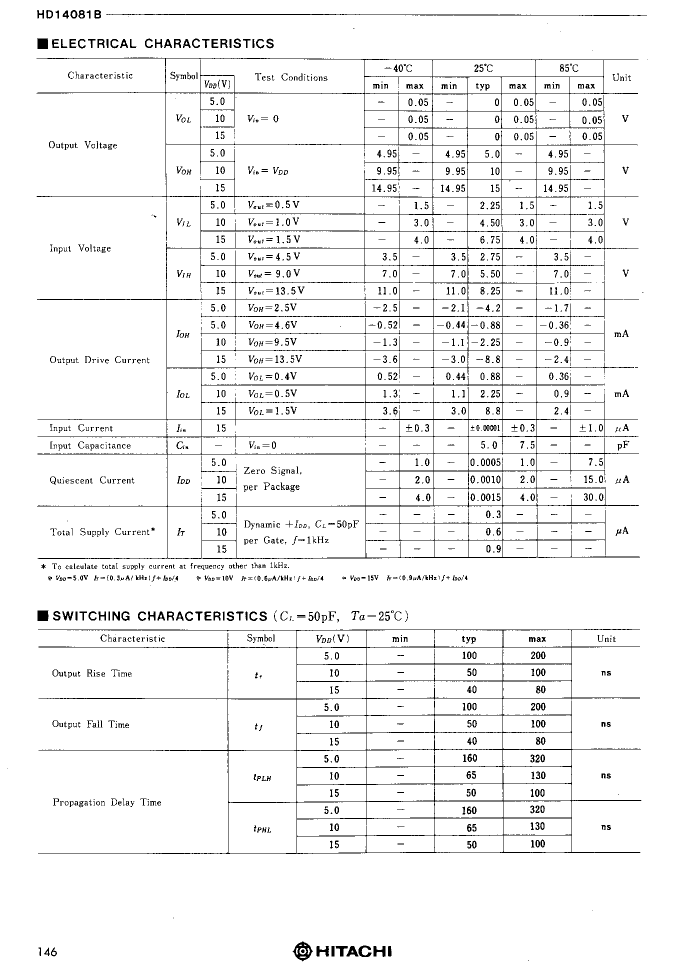

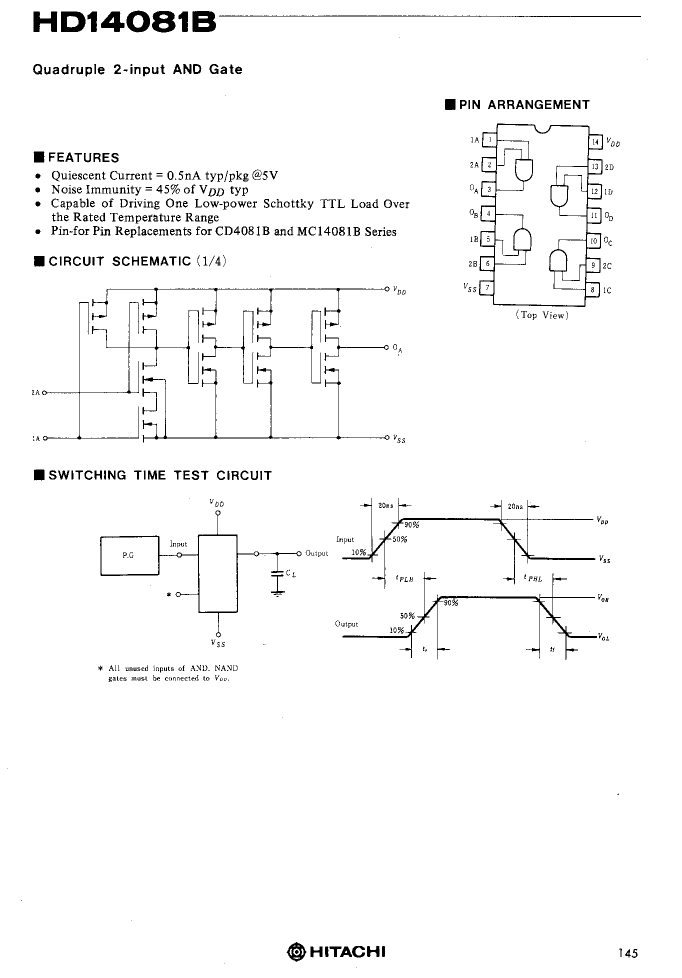

HD14081BRP Overview

4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, PDSO14, FP-14DN

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	compliant
series	4000/14000/40000
JESD-30 code	R-PDSO-G14
length	8.65 mm
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	320 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

	HD14081BRP	HD14081BP	HD14081BFP
Description	4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, PDSO14, FP-14DN	4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, PDIP14, DP-14	4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, PDSO14, FP-14DA
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	DIP	SOIC
package instruction	SOP,	DIP,	SOP,
Contacts	14	14	14
Reach Compliance Code	compliant	compliant	compliant
series	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
length	8.65 mm	19.2 mm	10.06 mm
Logic integrated circuit type	AND GATE	AND GATE	AND GATE
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	320 ns	320 ns	320 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	5.06 mm	2.2 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	5.5 mm
