PS2604L-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2604L-L

Preview

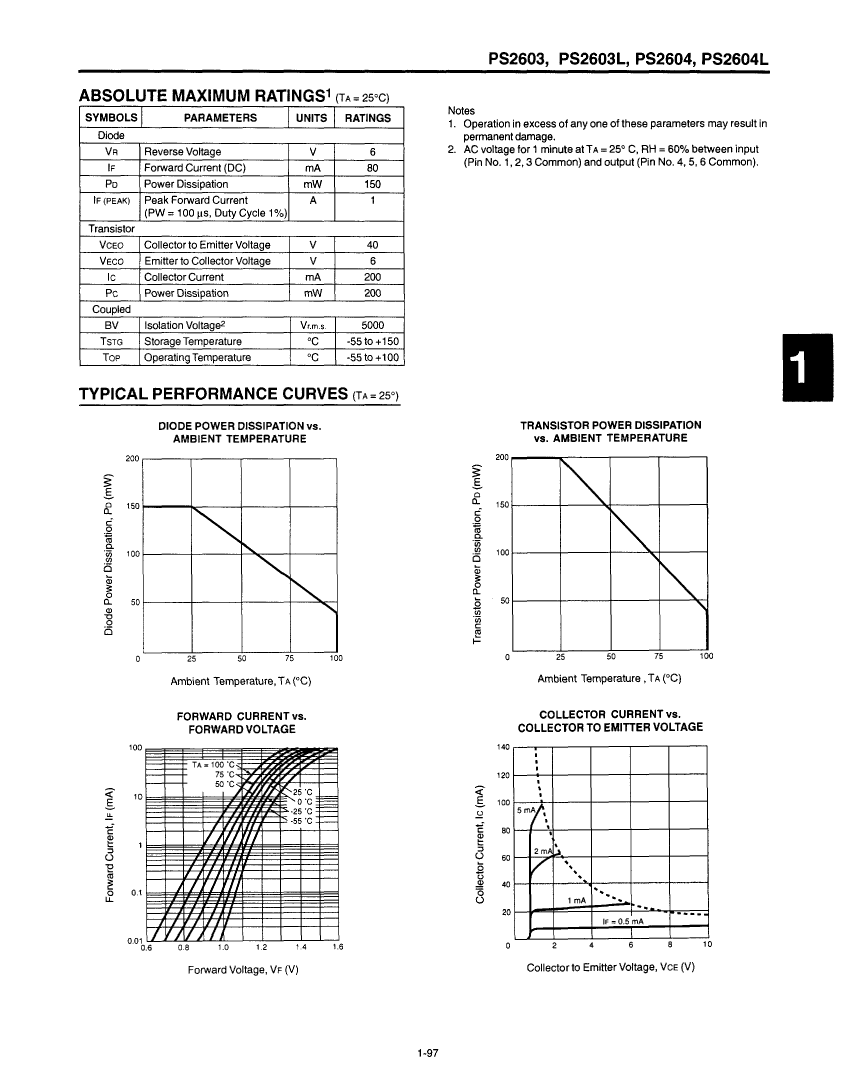

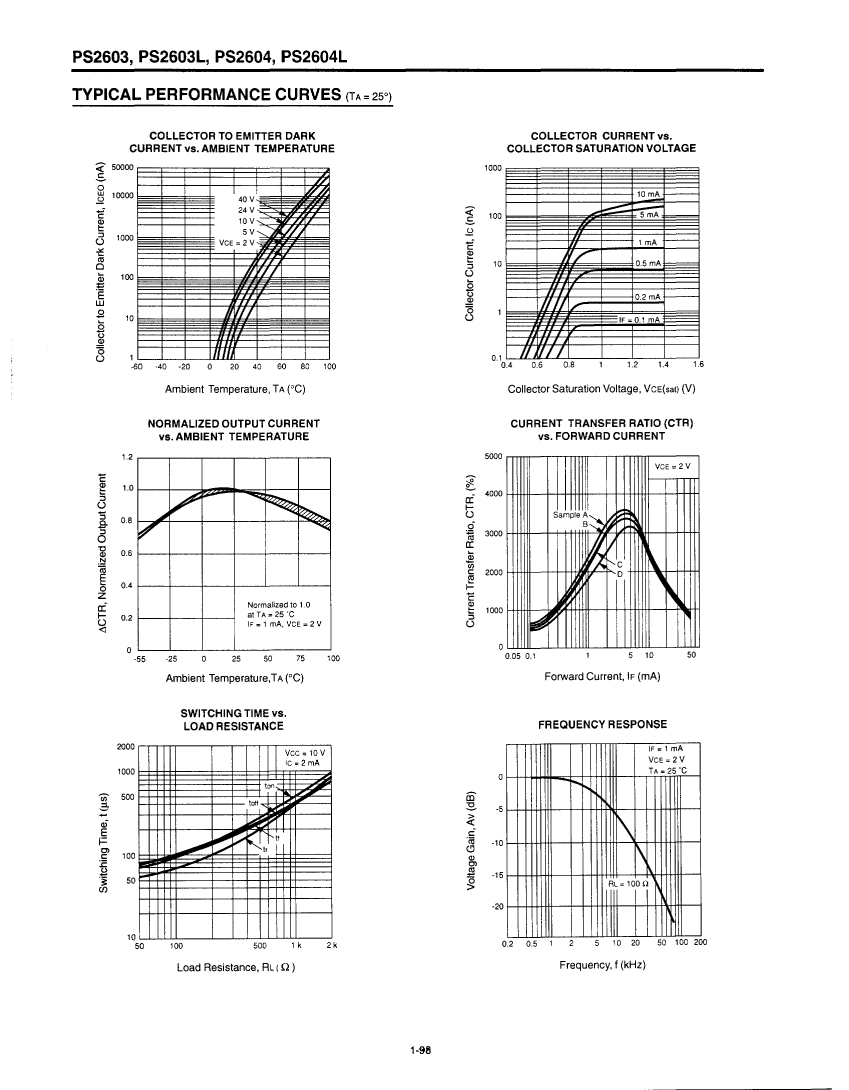

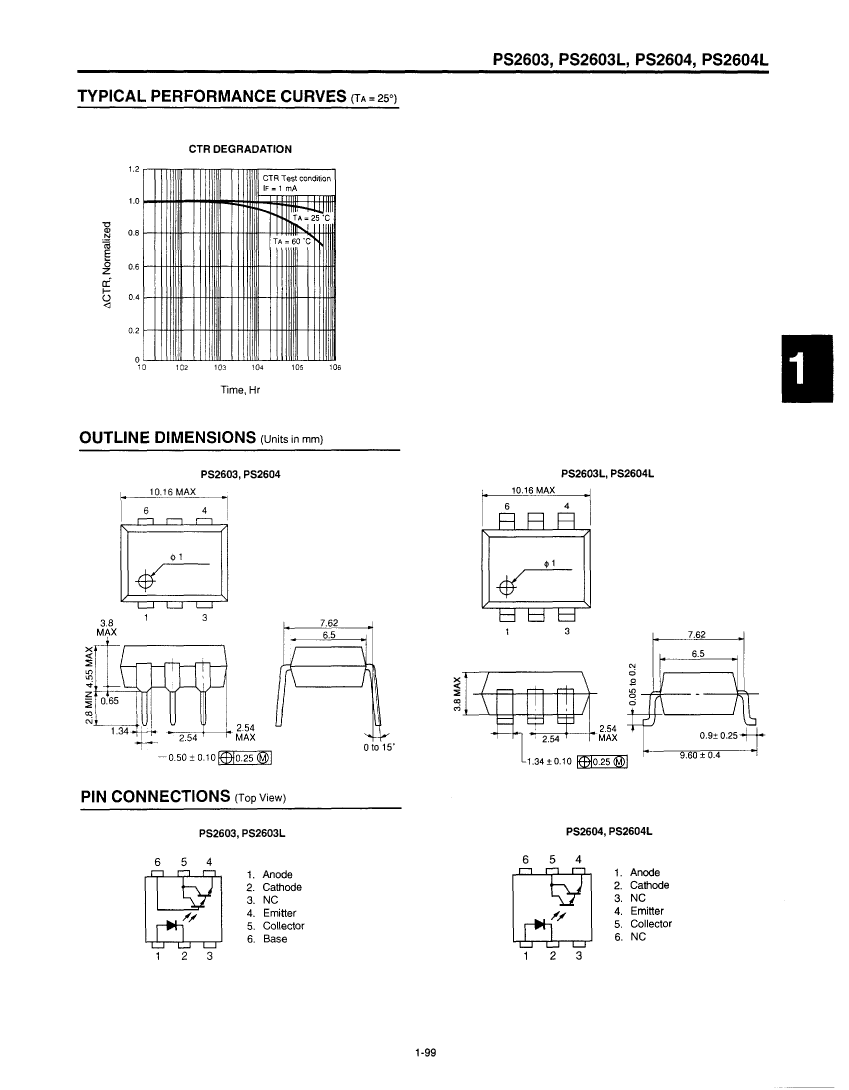

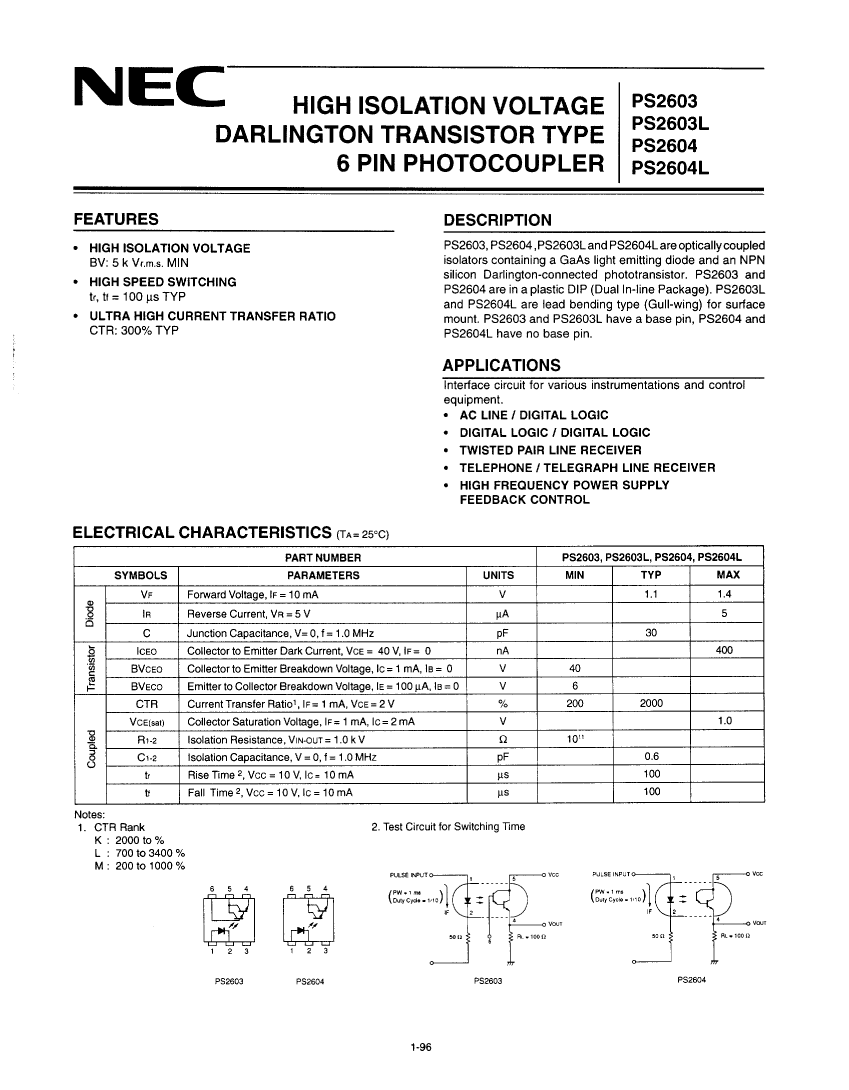

PS2604L-L: DescriptionDarlington Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size209KB，4 Pages; ManufacturerCalifornia Eastern Labs; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

PS2604L-L Overview

Darlington Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6

PS2604L-L Parametric

Parameter Name	Attribute value
Maker	California Eastern Labs
package instruction	GULL-WING, PLASTIC, DIP-6
Reach Compliance Code	compliant
Coll-Emtr Bkdn Voltage-Min	40 V
Configuration	SINGLE
Nominal current transfer ratio	700%
Maximum dark power	400 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

PS2604L-L Related Products

	PS2604L-L	PS2603-K	PS2604L-K	PS2603L-L	PS2603L-K	PS2604-M	PS2603-L	PS2603-M
Description	Darlington Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6
Maker	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs	California Eastern Labs
package instruction	GULL-WING, PLASTIC, DIP-6	PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown	compliant
Coll-Emtr Bkdn Voltage-Min	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	700%	2000%	2000%	700%	2000%	200%	700%	200%
Maximum dark power	400 nA	400 nA	400 nA	400 nA	400 nA	400 nA	400 nA	400 nA
Maximum forward current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Number of components	1	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER
