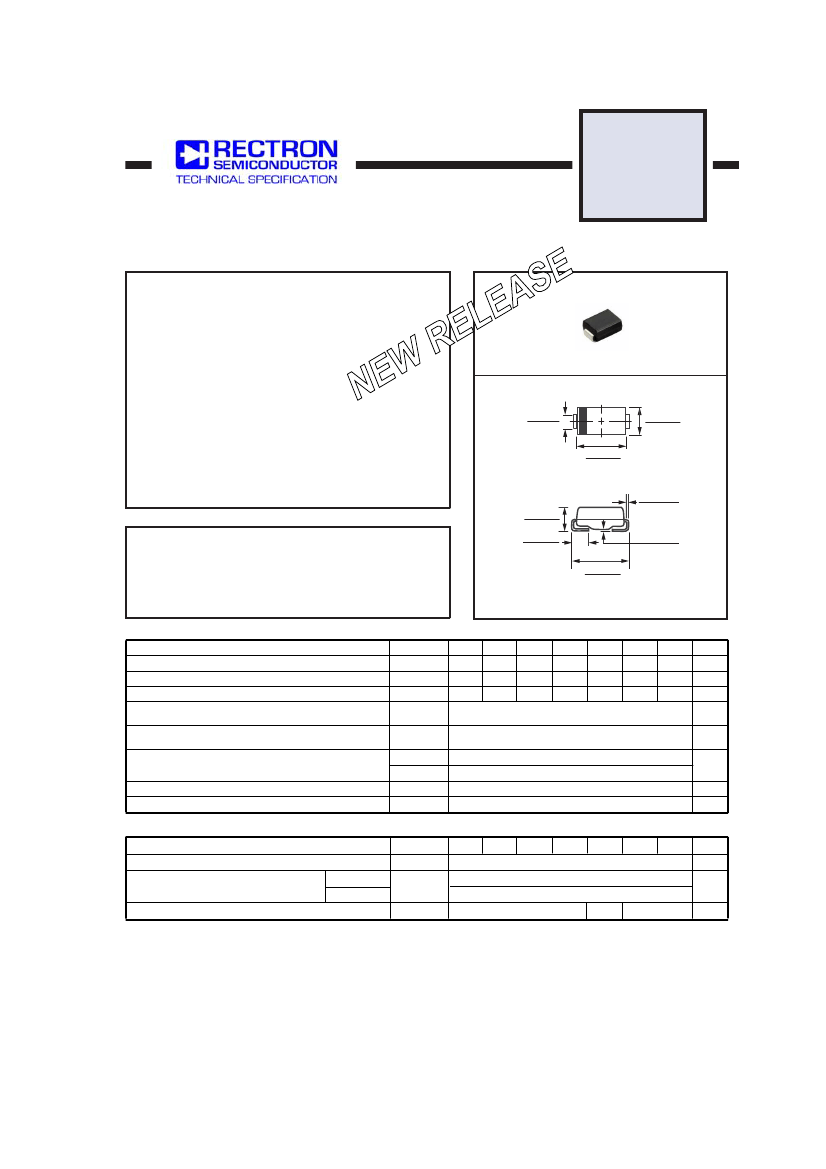

VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Ampere
FEATURES
*
*
*
*
*
*
SURFACE MOUNT GLASS PASSIVATED
FAST RECOVERY SILICON RECTIFIER
FFM201L
THRU
FFM207L
Glass passivated device
Ideal for surface mounted applications
Low leakage current
Metallurgically bonded construction
Mounting position: Any
Weight: 0.098 gram
SMBL
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
0.083 (2.11)
0.077 (1.96)
0.155 (3.94)
0.130 (3.30)
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.085 (2.15)
0.061 (1.55)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
o
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0.004 (0.102)
0.220 (5.59)
0.205 (5.21)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
A
= 55
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 4)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 2.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Maximum Reverse Recovery Time (Note 1)
NOTES :
1. Reverse Re covery Test Conditions: I
F
= 0.5A, I
R
= -1.0A, I
RR
= -0.25A
2. Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
3. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”.
4. Thermal Resistance : Mounted on PCB.
@T
A
= 25 C
@T
A
= 100 C
o
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
qJA
R
qJL
C
J
T
J
, T
STG
FFM201L FFM202L FFM203L FFM204L FFM205L FFM206L FFM207L
UNITS
Volts
Volts
Volts
Amps
Amps
0
50
35
50
100
70
100
200
140
200
400
280
400
2.0
70
55
18
15
-55 to + 150
600
420
600
800
560
800
1000
700
1000
C/W
pF
0
C
SYMBOL
V
F
I
R
trr
FFM201L FFM202L FFM203L FFM204L FFM205L FFM206L FFM207L
UNITS
Volts
mAmps
1.30
2.0
100
150
250
500
nSec
2006-12

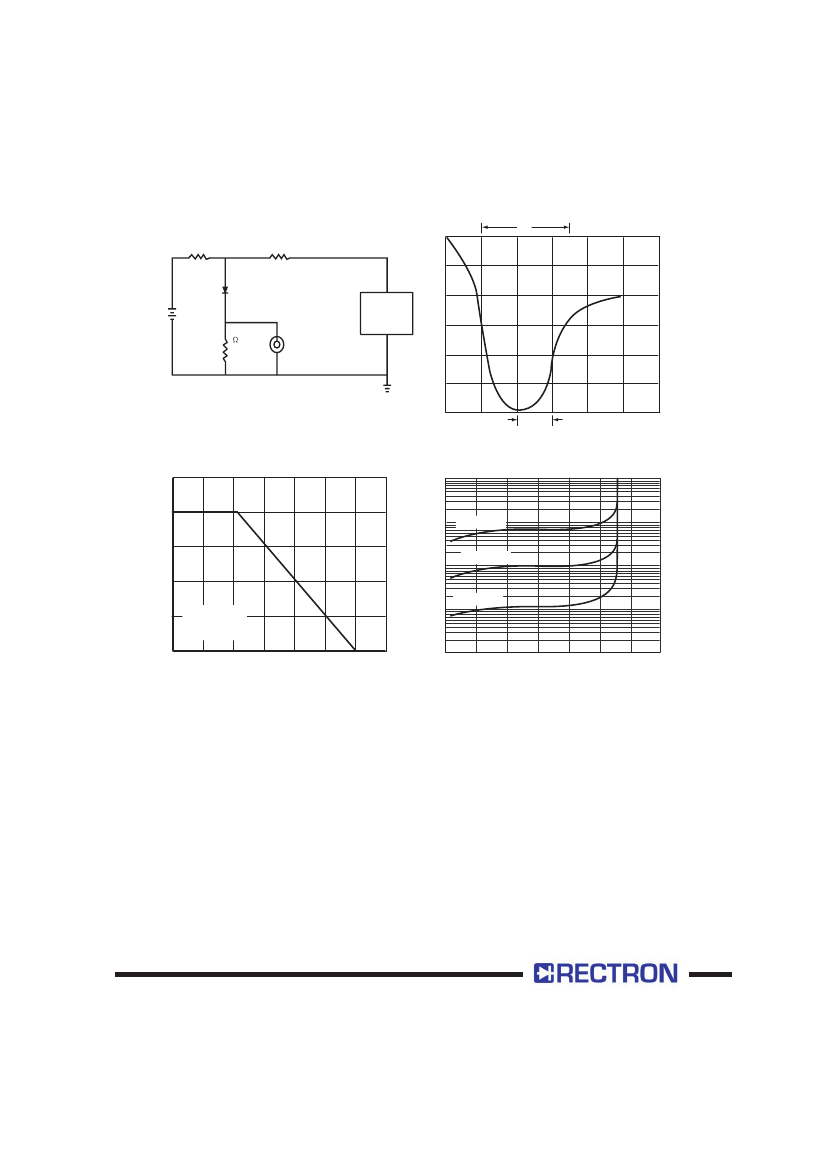

RATING AND CHARACTERISTICS CURVES ( FFM201L THRU FFM207L )
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
+0.5A
trr
(+)
25 Vdc
(approx)
(-)
D.U.T
(-)
PULSE
GENERATOR
(NOTE 2)
0
-0.25A
1
NON-
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
(+)
NOTES: 1 Rise Time = 7ns max. Input Impedance =
1 megohm. 22pF.
2. Rise Time = 10ns max. Source Impedance =
50 ohms.
-1.0A
1cm
SET TIME BASE FOR 50/100 ns/cm
FIG.1 TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
2.5
AVERAGE FORWARD CURRENT, (A)
INSTANTANEOUS REVERSE CURRENT, (mA)
1000
2.0
1.5
1.0
0.5
0
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
100
T
A
= 100
O
C
T
A
= 75
O
C
10
1.0
T
A
= 25
O
C
0
25
50
75
100
125
150
175
0.1
0
20
40
60
80
100
120
140
AMBIENT TEMPERATURE, (
O
C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
FIG.2 TYPICAL FORWARD CURRENT
DERATING CURVE
FIG.3 TYPICAL REVERSE
CHARACTERISTICS
RATING AND CHARACTERISTICS CURVES ( FFM201L THRU FFM207L )
INSTANTANEOUS FORWARD CURRENT, (A)
PEAK FORWARD SURGE CURRENT, (A)
20
10
3.0
1.0
0.3
0.1
0.03
0.01
0
200
100
T
J
= 25
O
C
8.3ms Single Half Sine-Wave
(JEDED Method)
50
30
20
10
Pulse Width=300uS
1% Duty Cycle
0.5
1.0
1.5
2.0
2.5
3.0
3.5
1
5
10
50
100
INSTANTANEOUS FORWARD VOLTAGE, (V)
NUMBER OF CYCLES AT 60Hz
FIG.4 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
200
JUNCTION CAPACITANCE, (pF)
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
60
40
20
10
6
4
2
1
0.1 0.2
0.4
1.0
2
4
10
T
J
= 25
O
C
20
40
100
REVERSE VOLTAGE, (V)
FIG.6 TYPICAL JUNCTION CAPACITANCE
