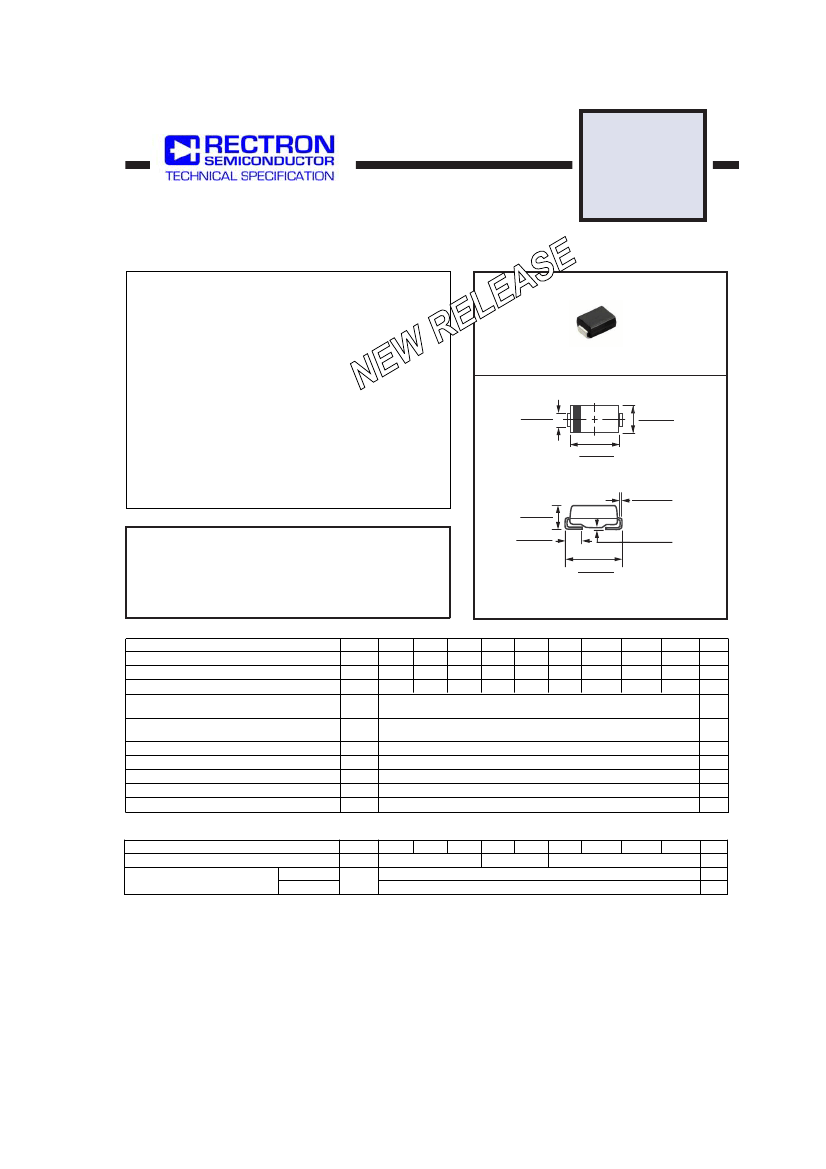

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
VOLTAGE RANGE 20 to 200 Volts CURRENT 2.0 Ampere
FEATURES
*
*
*
*
*
Ideal for surface mounted applications
Low leakage current
Metallurgically bonded construction
Mounting position: Any
Weight: 0.098 gram
FM220L
THRU
FM2200L
MECHANICAL DA TA
* Epoxy: Device has UL flammability classification 94V-O
0.083 (2.11)
0.077 (1.96)
0.155 (3.94)
0.130 (3.30)
SMBL
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.085 (2.15)
0.061 (1.55)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0.004 (0.102)
0.220 (5.59)
0.205 (5.21)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Ambient Temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 1)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
FM220L FM230L FM240L FM250L FM260L FM280L FM2100L
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
q
JA
R
q
JL
C
J
T
J
T
STG
20
14
20
30
21
30
40
28
40
50
35
50
60
42
60
2.0
60
75
17
130
150
-55 to + 150
80
56
80
100
70
100
FM2150L FM2200L
UNITS
150
105
150
200
140
200
Volts
Volts
Volts
Amps
Amps
0
0
C/W
C/W
pF
0
0
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 2.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25 C
@T
A
= 100 C
o
o
SYMBOL
FM220L FM230L FM240L FM250L FM260L FM280L FM2100L
V
F
I
R
.55
.70
0.2
2
FM2150L FM2200L
UNITS
.85
Volts
mA
mA
2006-12
NOTES : 1. Thermal Resistance :Mounted on PCB.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. "Fully ROHS compliant","100% Sn plating (Pb-free)".

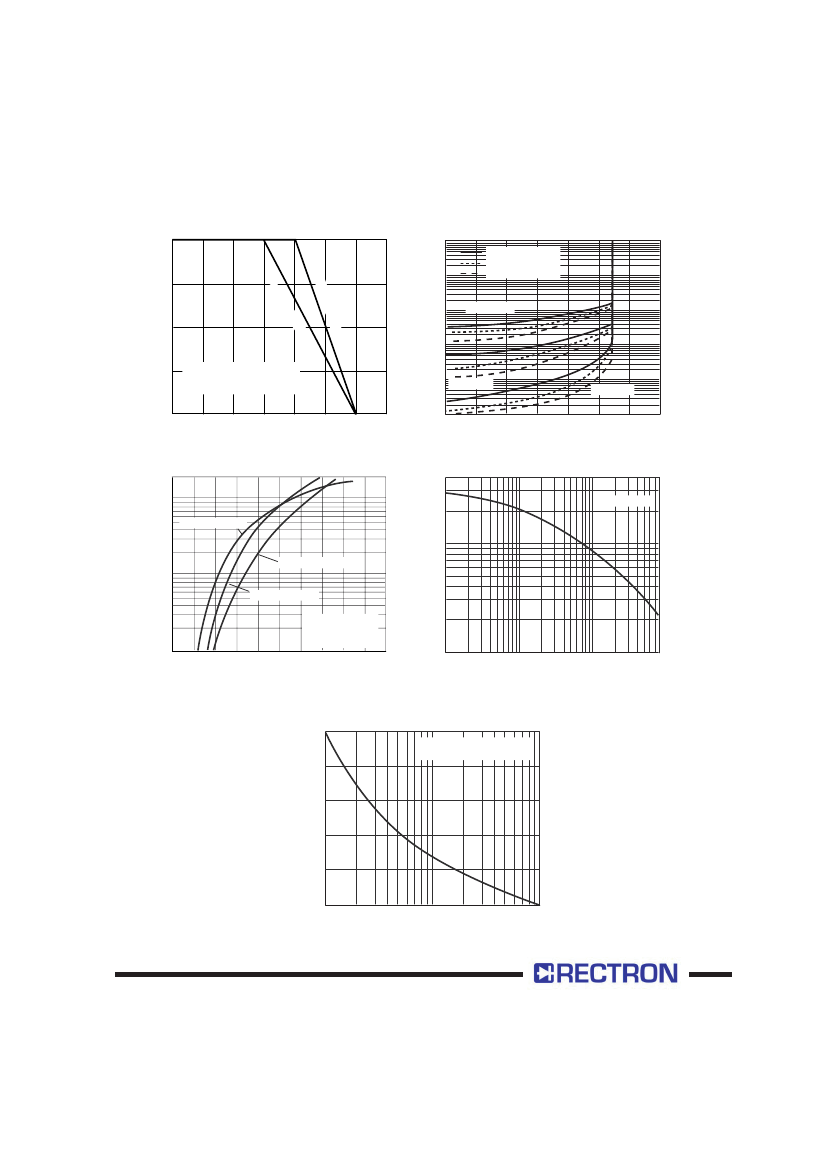

RATING AND CHARACTERISTICS CURVES ( FM220L THRU FM2200L )
INSTANTANEOUS FORWARD CURRENT, (mA)
AVERAGE FORWARD CURRENT, (A)
2.0
100
10
1.0
0.1
0.01
T = 75
O
C
A
0.001
0
20
40
60
80
FM220L
~
FM240L
FM250L~FM260L
FM280L~FM2200L
T
A
= 100
O
C
1.5
FM2
FM
22
0L
~
F
50L
~
F M
1.0
220
0.5
Single Phase Half Wave 60Hz
Resistive or Inductive Load
0.375" (9.5mm) Lead Length
M2
40
L
0L
T
A
= 25
O
C
0
0
25
50
75
100
125
O
150
175
100
120
140
AMBIENT TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
INSTANTANEOUS REVERSE CURRENT, (A)
10
FM220L
~
FM240L
C
J
, JUNCTION CAPACITANCE, (pF)
20
FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
400
200
100
80
60
40
20
10
FIG.2 TYPICAL REVERSE
CHARACTERISTICS
T
J
= 25
O
C
1.0
FM280L
~
FM2200L
FM250L
~
FM260L
T
J
= 25
O
C
Pulse width=300mS
1% Duty Cycle
0.1
0.1
0.3
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9 2.1
0.1
0.4
1.0
4
10
40 80
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, (V)
FIG.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT, (A)
FIG.4 TYPICAL JUNCTION CAPACITANCE
60
50
40
30
20
10
1
8.3mS Single Half Sine-Wave
JEDEC Method
2
4
6
8 10
20
40
80 100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
