HMC434
/
434E
v04.0410
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 8 GHz
Typical Applications
Features
Ultra Low SSB Phase Noise: -150 dBc/Hz
Single-Ended I/O’s
Output Power: -2 dBm
Single DC Supply: +3V @ 62 mA
9 mm
2
Ultra Small Package: SOT26
4
FREQUENCY DIVIDERS & DETECTORS - SMT
Prescaler for DC to C Band PLL Applications:
• UNII, Pt. - Pt. & VSAT Radios
• 802.11a & HiperLAN WLAN
• Fiber Optic
• Cellular / 3G Infrastructure
Functional Diagram
General Description
The HMC434(E) is a low noise Divide-by-8 Static
Divider utilizing InGaP GaAs HBT technology in
ultra small surface mount SOT26 plastic packages.
This device operates from DC (with a square wave
input) to 8 GHz input frequency with a single +3V
DC supply. Single-ended inputs and outputs reduce
component count and cost. The low additive SSB
phase noise of -150 dBc/Hz at 100 kHz offset helps
the user maintain good system noise performance.
Electrical Specifi cations,
T
A
= +25° C, 50 Ohm System, Vcc= +3V
Parameter
Maximum Input Frequency
Minimum Input Frequency
Input Power Range
Output Power
Reverse Leakage
SSB Phase Noise (100 kHz offset)
Output Transition Time
Supply Current (Icc)
Sine Wave Input. [1]
Fin= 1 to 3 GHz
Fin= 3 to 7 GHz
Fin= 7 to 8 Ghz
Fin= 1 to 8 GHz
RF Output Terminated, Fin= 4 GHz, Pin= 0 dBm
Pin= 0 dBm, Fin= 4 GHz
Pin= 0 dBm, Fout= 882 MHz
Vcc= +3.0V
-10
-3
0
-5.0
-2.0
-20
-150
140
62
83
Conditions
Min.
8
Typ.
8.5
0.2
+12
+12
+10
Max.
Units
GHz
GHz
dBm
dBm
dBm
dBm
dBm
dBc/Hz
ps
mA
1. Divider will operate down to DC for square-wave input signal.
4 - 78
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC434 / 434E
v04.0410
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 8 GHz

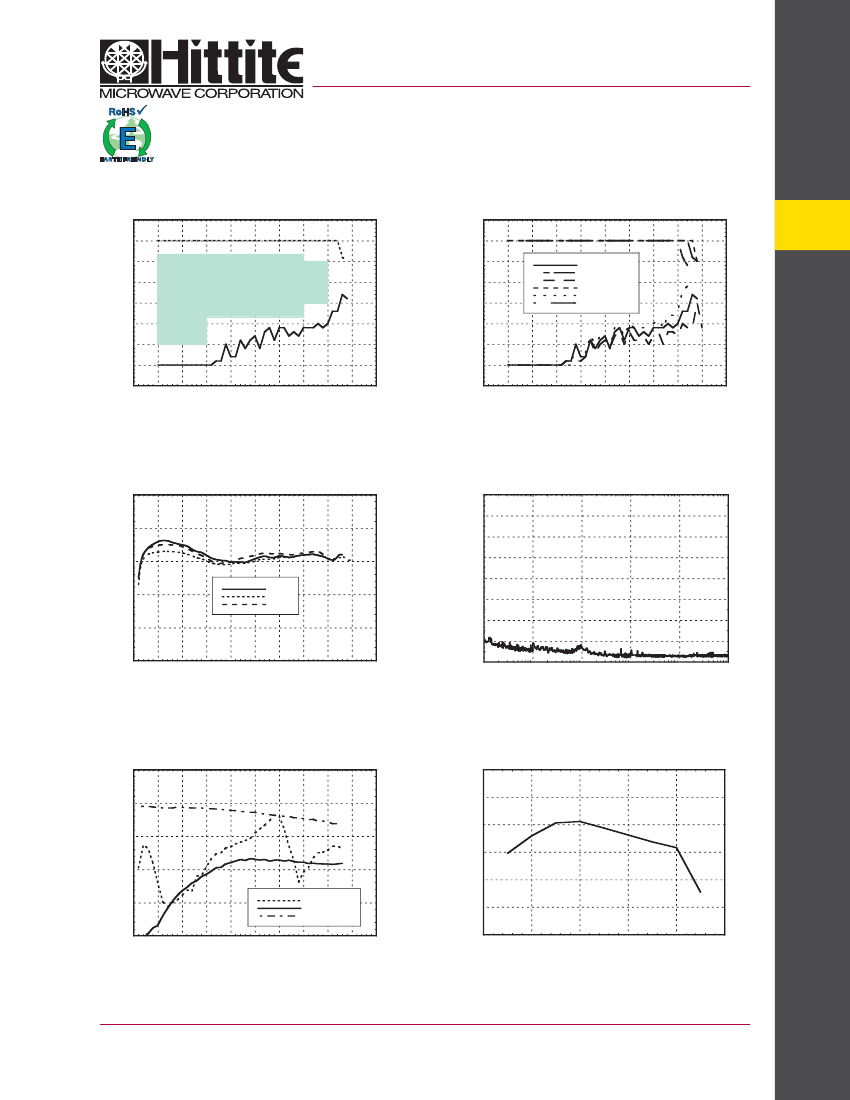

Input Sensitivity Window, T= 25 °C
20
15
INPUT POWER (dBm)
INPUT POWER (dBm)
10
5
0
-5
-10
-15
-20
0
1
2
3
4
5
6
7
8
9
10
INPUT FREQUENCY (GHz)
Input Sensitivity Window vs. Temperature
20
15
10
5
0
-5
-10
-15
-20
0
1
2
3
4
5
6
7
8
9
10
INPUT FREQUENCY (GHz)
Min Pin +25 C
Max Pin +25 C
Min Pin -40 C
Max Pin -40 C
Min Pin +85 C
Max Pin +85 C
4
FREQUENCY DIVIDERS & DETECTORS - SMT
4 - 79
Recommended
Operating Window
Output Power vs. Temperature
0
SSB Phase Noise
Performance, Pin= 0 dBm, T= 25 °C
0
SSB PHASE NOISE (dBc/Hz)
-20
-40
-60
-80
OUTPUT POWER (dBm)
-1
-2
+25 C
-40 C
+75 C
-3
-100
-120
-140
-160
2
10
-4
-5
0
1
2
3
4
5
6
7
8
9
10
INPUT FREQUENCY (GHz)
10
3
10
4
10
5
10
6
10
7
OFFSET FREQUENCY (Hz)
Output Harmonic
Content, Pin= 0 dBm, T= 25 °C
0
Reverse Leakage, Pin= 0 dBm, T= 25 °C
0
-10
POWER LEVEL (dBm)
-20
-30
-40
-50
-60
OUTPUT LEVEL (dBm)
-10
-20
-30
-40
Pfeedthru
2nd Harmonic
3rd Harmonic
-50
0
1
2
3
4
5
6
7
8
9
10
INPUT FREQUENCY (GHz)
0
2
4
6
8
10
INPUT FREQUENCY (GHz)
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC434 / 434E
v04.0410
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 8 GHz

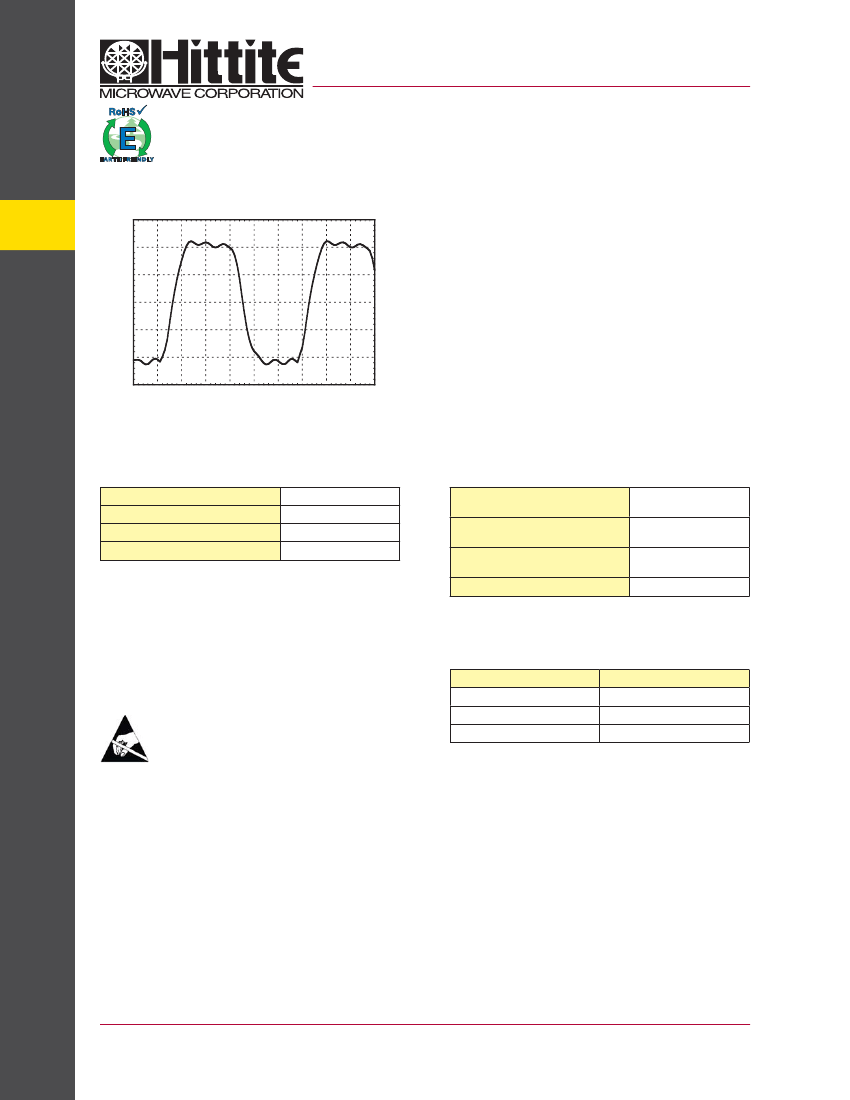

Output Voltage Waveform,
Pin= 0 dBm, Fout= 882 MHz, T= 25 °C
4
AMPLITUDE (mV)
300
200
100
0
-100
-200
-300
22.7
FREQUENCY DIVIDERS & DETECTORS - SMT
23.1
23.5
23.9
24.3
24.7
TIME (nS)
Absolute Maximum Ratings
RF Input Power (Vcc = +3V)
Nominal +3V Supply to GND
Max Peak Flow Temperature
Storage Temperature
15 dBm
-0.3V to +3.5V
260 °C
-65 to +125 °C
Reliability Information
Junction Temperature to Maintain
1 Million Hour MTTF
Nominal Junction Temperature
(T = 85 °C)
Thermal Resistance
(Junction to GND Paddle, 3V Supply)
Operating Temperature
135 °C
99 °C
70 °C/W
-40 to +85 °C
Typical Supply Current vs. Vcc
DC blocking capacitors are required at RF input and RF output ports.
Choose value for lowest frequency of operation.
Vcc (V)
2.70
3.0
Icc (mA)
50
62
74
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
3.30
Note: Divider will operate over full voltage range shown above
4 - 80
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC434 / 434E
v04.0410
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 8 GHz

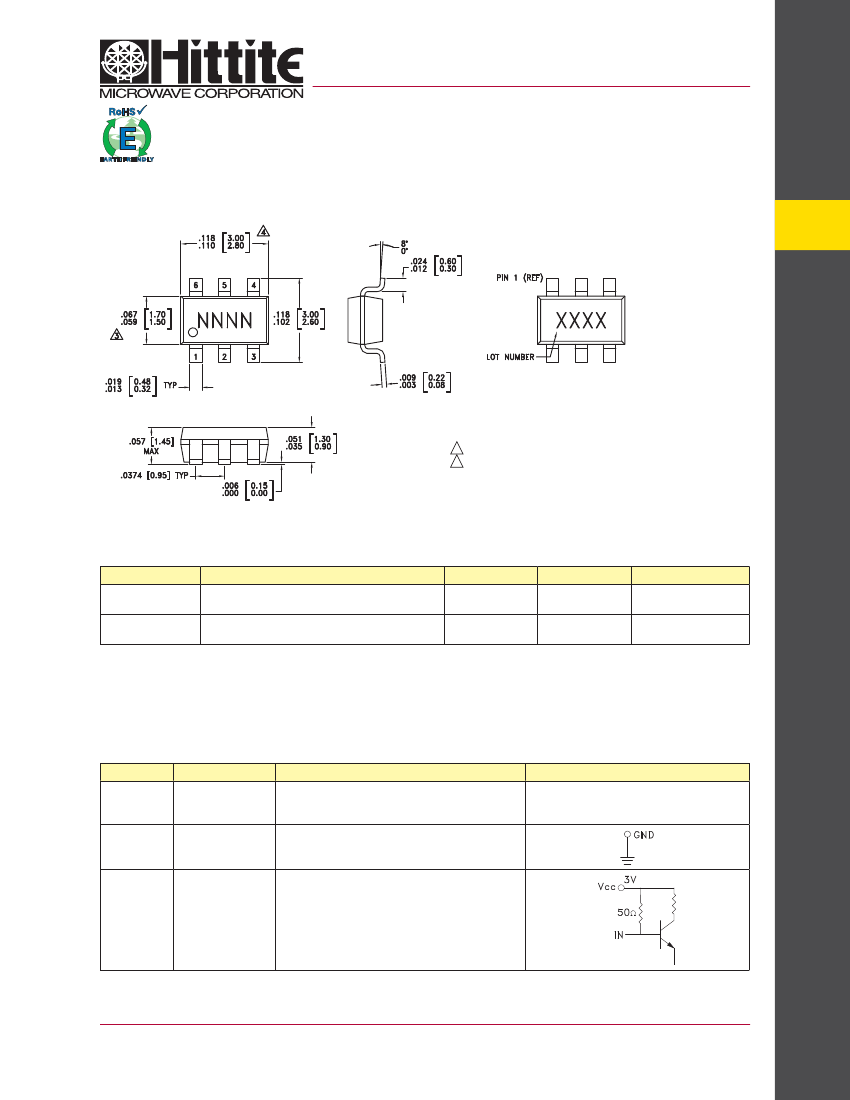

Outline Drawing
4
FREQUENCY DIVIDERS & DETECTORS - SMT
4 - 81
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM.
PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
7. REFER TO HITTITE APPLICATION NOT FOR SUGGESTED
LAND PATTERN.
Package Information
Part Number
HMC434
HMC434E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
H434
XXXX
434E
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
Pin Description
Pin Number
1, 4
Function
N/C
Description
The pins are not connected internally; however, all
data shown herein was measured with these pins
connected to RF/DC ground externally.
Pin must connect ro RF/DC ground.
Interface Schematic
2
GND
3
IN
RF input must be DC blocked.
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC434 / 434E
v04.0410
SMT GaAs HBT MMIC
DIVIDE-BY-8, DC - 8 GHz
Pin Description
(Continued)
4
FREQUENCY DIVIDERS & DETECTORS - SMT
Pin Number
Function
Description
Interface Schematic
5
Vcc
Supply voltage 3V ± 0.3V.
6
OUT
Divided output must be DC blocked.

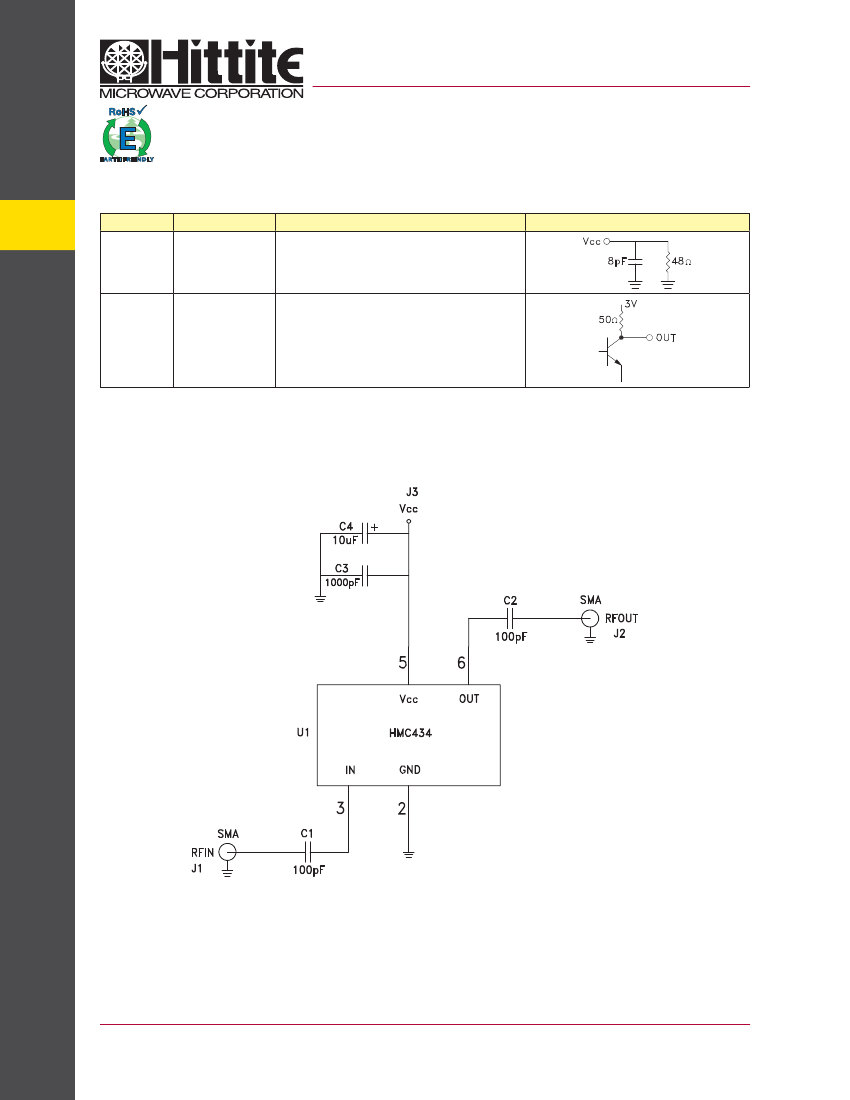

Application Circuit
Note: Line lengths on pins 1 & 4
(N/C) are not necessary.
Note:
DC blocking capacitor values (C1, C2) and DC decoupling capacitor
values (C3, C4) are chosen for lowest frequency of operation.
4 - 82
