MDFLDL-TTL-90T datasheet, PDF - EEWORLD Datasheet

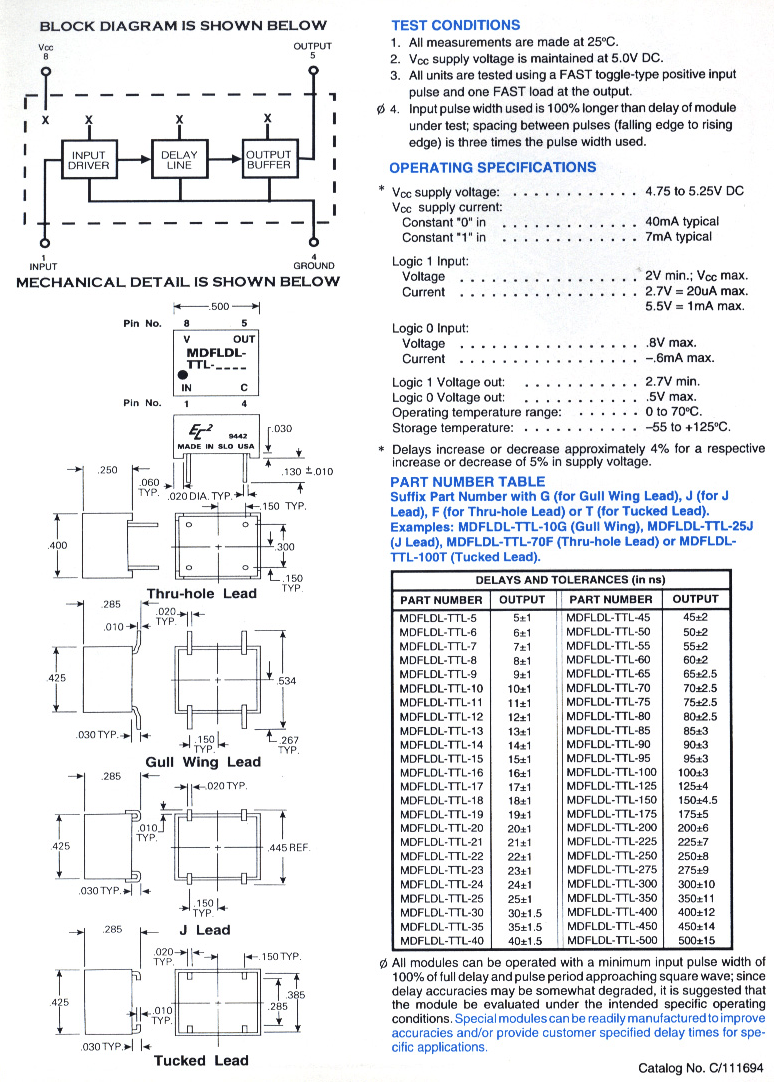

MDFLDL-TTL-90T: DescriptionActive Delay Line, 1-Func, 1-Tap, True Output, TTL, TUCKED LEAD, MODULE-8/4; Categorylogic logic; File Size475KB，1 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

MDFLDL-TTL-90T Overview

Active Delay Line, 1-Func, 1-Tap, True Output, TTL, TUCKED LEAD, MODULE-8/4

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Engineered Components Co.
Parts packaging code	SOIC
package instruction	SOL, SMDIP4/8,.38
Contacts	4
Reach Compliance Code	unknown
Other features	TYP. ICC = 40MA; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	F
JESD-30 code	R-XDSO-L4
length	12.7 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Humidity sensitivity level	1
Number of functions	1
Number of taps/steps	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOL
Encapsulate equivalent code	SMDIP4/8,.38
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	93 ns
Certification status	Not Qualified
Maximum seat height	7.239 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	L BEND
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	90 ns
width	10.795 mm
