MC74AC04DT datasheet, PDF - EEWORLD Datasheet

MC74AC04DT: DescriptionInverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, SOIC-14; Categorylogic logic; File Size76KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

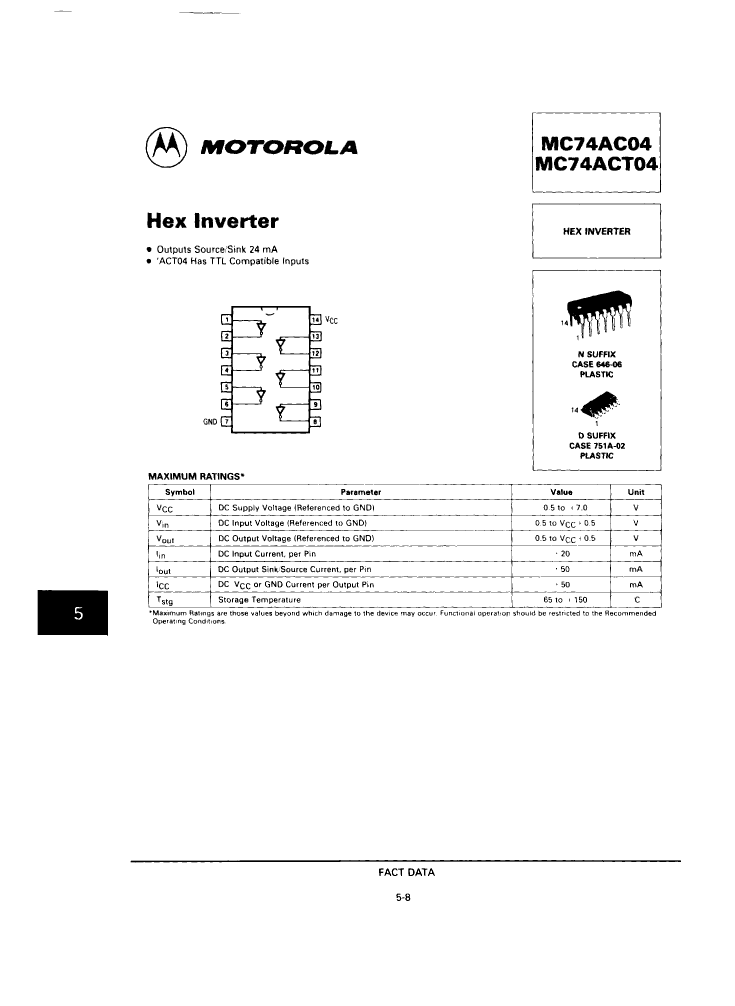

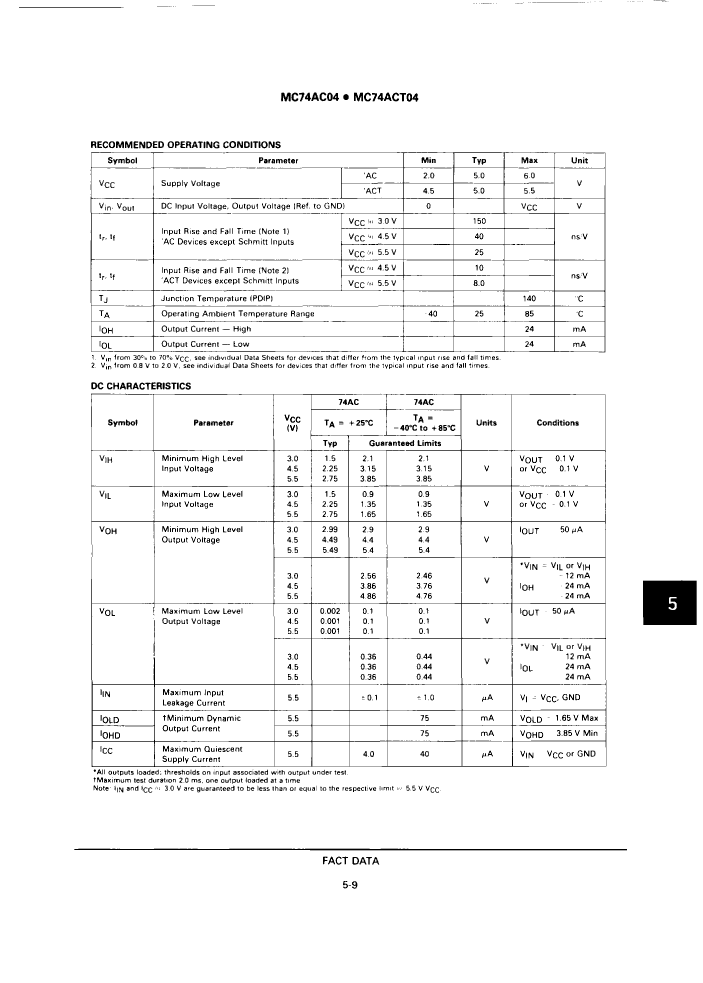

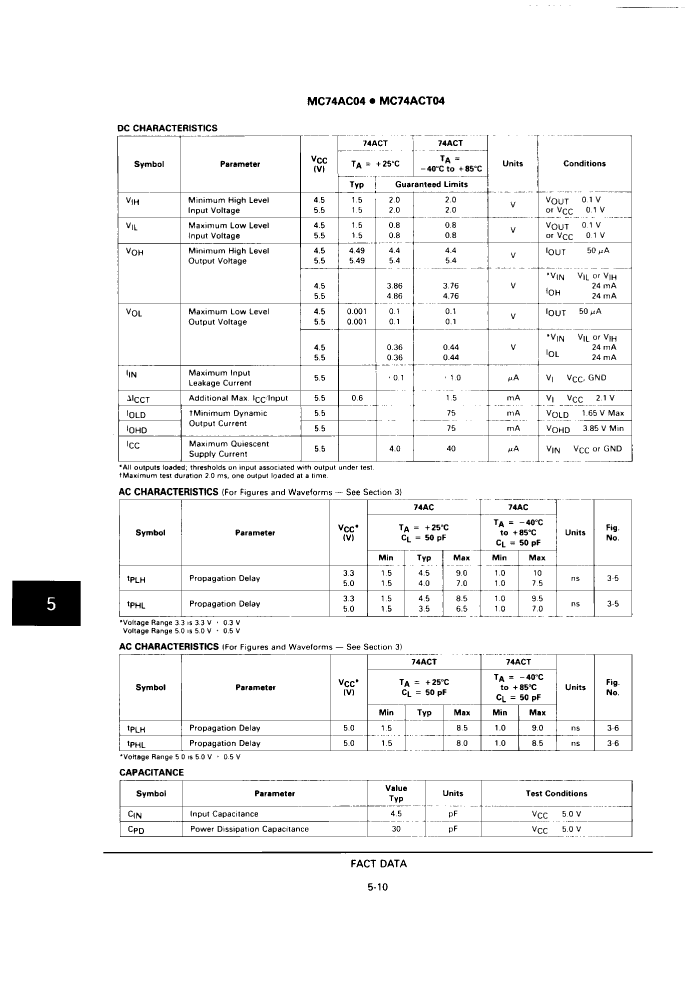

MC74AC04DT Overview

Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, SOIC-14

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	SOP,
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-PDSO-G14
length	8.65 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

	MC74AC04DT	MC74ACT04DT
Description	Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, SOIC-14	ACT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOIC-14
package instruction	SOP,	SOP,
Reach Compliance Code	unknown	unknown
series	AC	ACT
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	8.65 mm	8.65 mm
Logic integrated circuit type	INVERTER	INVERTER
Number of functions	6	6
Number of entries	1	1
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	7 ns	8.5 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
