PD37S30B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PD37S30B

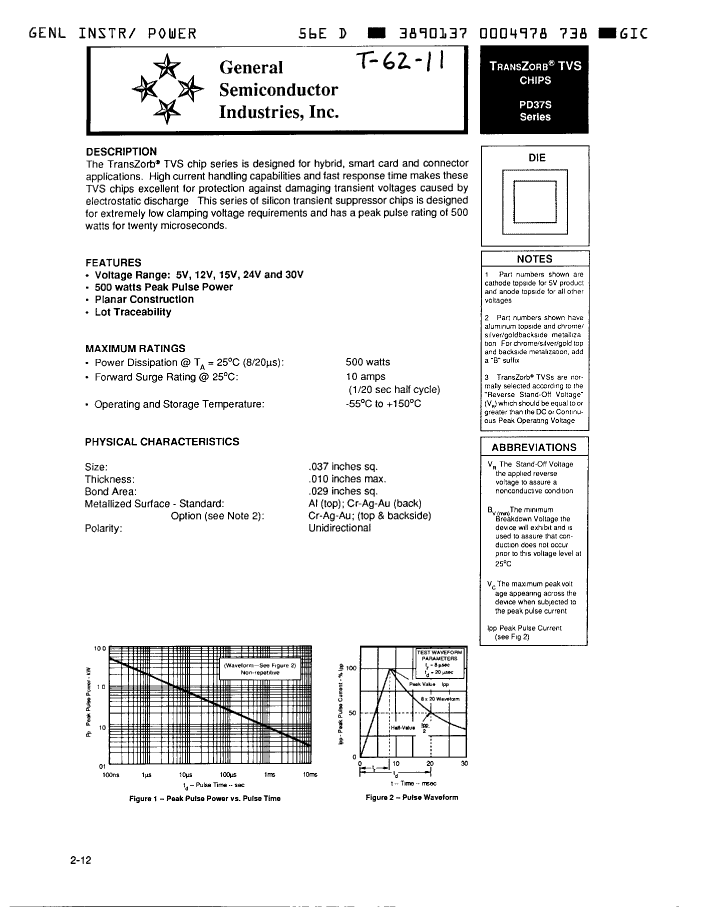

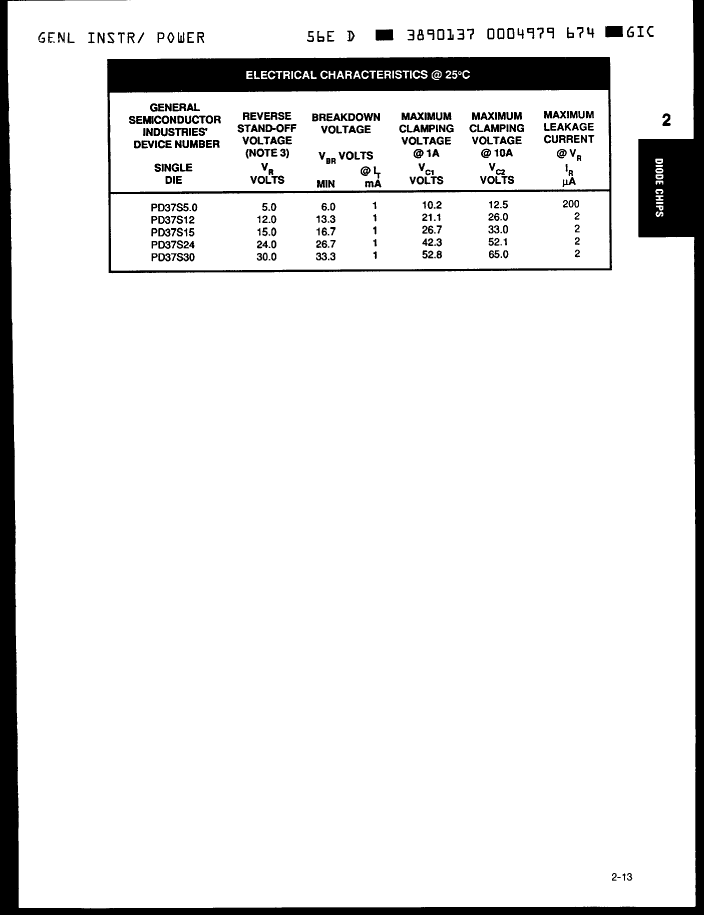

PD37S30B: DescriptionTrans Voltage Suppressor Diode, 500W, 30V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1; CategoryDiscrete semiconductor diode; File Size53KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

PD37S30B Overview

Trans Voltage Suppressor Diode, 500W, 30V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1

PD37S30B Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DIE
package instruction	S-XUUC-N
Contacts	1
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	33.3 V
Maximum clamping voltage	52.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	S-XUUC-N
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	1
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	AVALANCHE
Terminal form	NO LEAD
Terminal location	UPPER

Preview

Download Datasheet

View All

PD37S30B Related Products

	PD37S30B	PD37S24	PD37S12B	PD37S30	PD37S24B	PD37S5.0B	PD37S12	PD37S15	PD37S15B	PD37S5.0
Description	Trans Voltage Suppressor Diode, 500W, 30V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 24V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 12V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 30V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 24V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 5V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 12V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1	Trans Voltage Suppressor Diode, 500W, 5V V(RWM), Unidirectional, 1 Element, Silicon, 0.037 X 0.037 INCH, DIE-1
Parts packaging code	DIE	DIE	DIE	DIE	DIE	DIE	DIE	DIE	DIE	DIE
package instruction	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N
Contacts	1	1	1	1	1	1	1	1	1	1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	33.3 V	26.7 V	13.3 V	33.3 V	26.7 V	6 V	13.3 V	16.7 V	16.7 V	6 V
Maximum clamping voltage	52.8 V	42.3 V	21.1 V	52.8 V	42.3 V	10.2 V	21.1 V	26.7 V	26.7 V	10.2 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N	S-XUUC-N
Maximum non-repetitive peak reverse power dissipation	500 W	500 W	500 W	500 W	500 W	500 W	500 W	500 W	500 W	500 W
Number of components	1	1	1	1	1	1	1	1	1	1
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	24 V	12 V	30 V	24 V	5 V	12 V	15 V	15 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Objectid	-	1449787434	1449787419	-	-	1449787443	1449787422	1449787428	-	1449787446
