M22-6122206 datasheet, PDF - EEWORLD Datasheet

M22-6122206: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Socket; CategoryThe connector The connector; File Size250KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

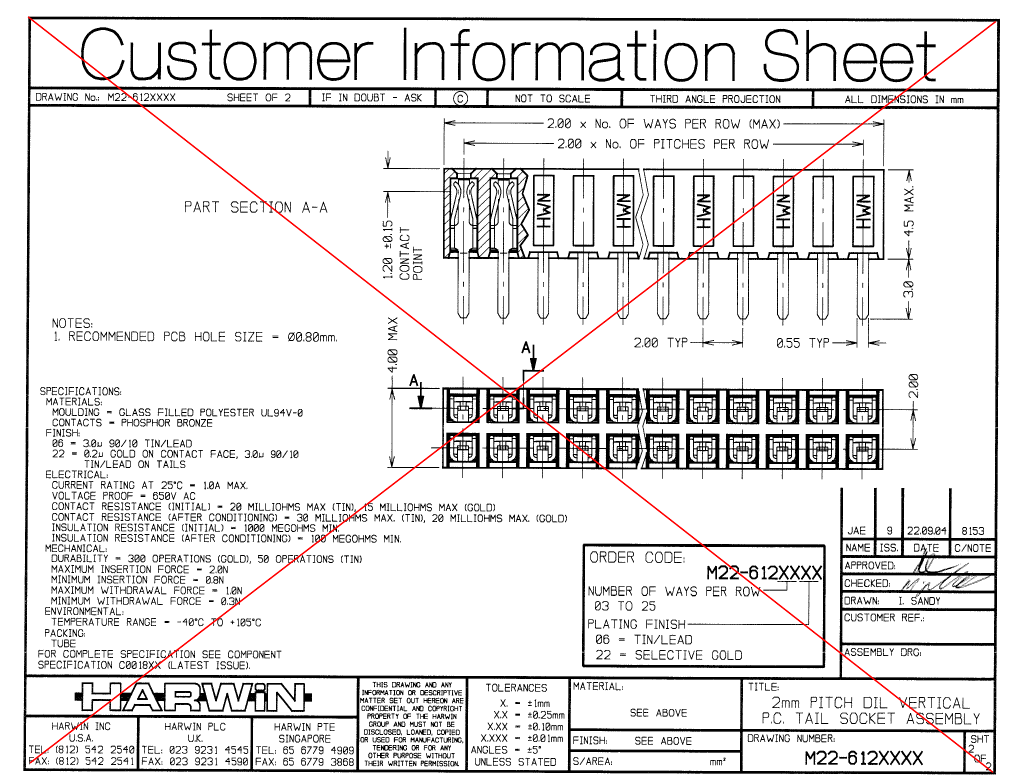

M22-6122206 Overview

Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Socket

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.157 inch
subject depth	0.177 inch
body length	1.732 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (118)
Contact completed and terminated	TIN LEAD (118)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VDC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.0016 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M22-612
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

OBSOLETE
