SF85K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SF85K

SF85K: Description8 A, 300 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size135KB，3 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SF85K Overview

8 A, 300 V, SILICON, RECTIFIER DIODE

SF85K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, DPAK-3
Contacts	3
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	SUPER FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

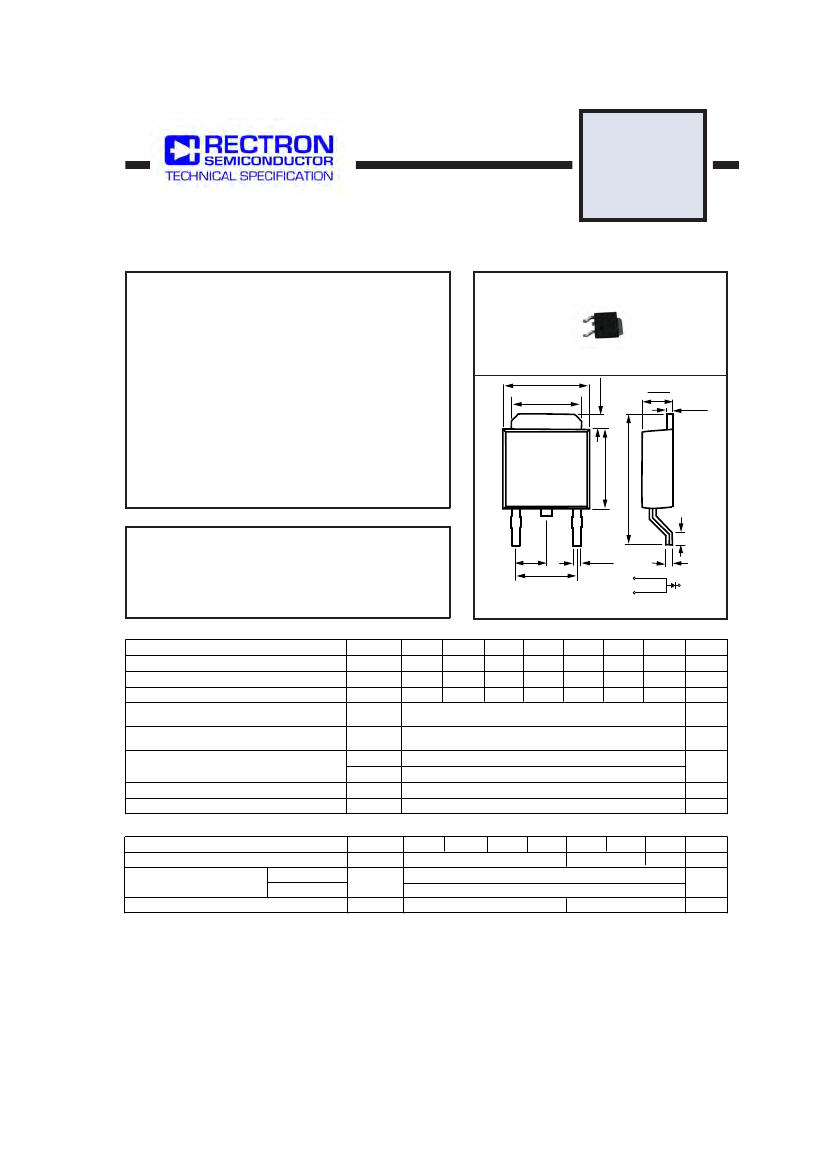

GLASS PASSIVATED SUPER FAST RECTIFIER

VOLTAGE RANGE 50 to 600 Volts CURRENT 8.0 Amperes

FEATURES

SF81K

THRU

SF87K

.051 (1.3)

.035 (0.9)

Low switching noise

Low forward voltage drop

Low thermal resistance

High current capability

Super fast switching speed

High reliability

Good for switching mode circuit

Case: D-PAK molded plastic

Epoxy: Device has UL flammability classification 94V-O

Lead: MIL-STD-202E method 208C guaranteed

Mounting position: Any

Weight: 0.33 gram

PIN1

D-PAK

.264 (6.7)

.248 (6.3)

.217 (5.5)

.201 (5.1)

.098 (2.5)

.083 (2.1)

.024 (0.6)

.016 (0.4)

MECHANICAL DATA

PIN3

.244 (6.2)

.228 (5.8)

.398 (10.11)

.382 (9.71)

PIN2

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYP .091

(2.30)

.183 (4.65)

.179 (4.55)

.031 (0.8)

.016 (0.4)

PIN 1

PIN 2

PIN 3

TYP 1.00

TYP .020

(0.50)

HEATSINK

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(@ T

=25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

at T

= 100

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Typical Thermal Resistance (Note 1)

Typical Junction Capacitance (Note 2)

Operating and Storage Temperature Range

SYMBOL

RRM

RMS

FSM

, T

STG

SF81K

SF82K

100

SF83K

150

105

150

SF84K

200

140

200

8.0

125

150

-55 to + 150

SF85K

300

210

300

SF86K

400

280

400

SF87K

600

420

600

UNITS

Volts

Amps

C/ W

ELECTRICAL CHARACTERISTICS

(@T

=25

C unless otherwise noted)

CHARACTERISTICS

Maximum Instantaneous Forward Voltage at 8.0A DC

Maximum DC Reverse Current

at Rated DC Blocking Voltage

= 25 C

= 100 C

SYMBOL

trr

SF81K

SF82K

1.0

SF83K

SF84K

100

SF85K

1.35

SF86K

SF87K

1.70

UNITS

Volts

uAmps

Maximum Reverse Recovery Time (Note 3)

nSec

2007-3

NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted.

2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.

3. Test conditions: I

= 0.5A, I

= -0.1A, I

=-0.25A.

4. "Fully ROHS compliant", "100% Sn plating (Pb-free)".

5. Suffix "R" for Reverse Polarity.

6. Suffix "S" for D2-PAK Pkg.

SF85K Related Products

	SF85K	SF81K	SF82K	SF83K	SF84K	SF87K	SF86K
Description	8 A, 300 V, SILICON, RECTIFIER DIODE	8 A, 50 V, SILICON, RECTIFIER DIODE	8 A, 100 V, SILICON, RECTIFIER DIODE	8 A, 150 V, SILICON, RECTIFIER DIODE	8 A, 200 V, SILICON, RECTIFIER DIODE	8 A, 600 V, SILICON, RECTIFIER DIODE	8 A, 400 V, SILICON, RECTIFIER DIODE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, DPAK-3	R-PSSO-G2	ROHS COMPLIANT, PLASTIC, DPAK-3	ROHS COMPLIANT, PLASTIC, DPAK-3	ROHS COMPLIANT, PLASTIC, DPAK-3	R-PSSO-G2	ROHS COMPLIANT, PLASTIC, DPAK-3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	_compli	_compli	compli	_compli	_compli	_compli	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A	125 A	125 A	125 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265	265	265	265	265	265	265
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	50 V	100 V	150 V	200 V	600 V	400 V
Maximum reverse recovery time	0.05 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
