LV2501A

Description
VHF BAND, 200pF, 22V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE, DO-7, GLASS PACKAGE-2
CategoryDiscrete semiconductor    diode
File Size106KB,2 Pages
ManufacturerAeroflex
Websitehttp://www.aeroflex.com/
Download Datasheet Parametric View All

LV2501A Overview

VHF BAND, 200pF, 22V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE, DO-7, GLASS PACKAGE-2

LV2501A Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAeroflex
Parts packaging codeDO-7
package instructionO-LALF-W2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Minimum breakdown voltage22 V
Shell connectionISOLATED
ConfigurationSINGLE
Diode Capacitance Tolerance5%
Minimum diode capacitance ratio5.8
Nominal diode capacitance200 pF
Diode component materialsSILICON
Diode typeVARIABLE CAPACITANCE DIODE
frequency bandVERY HIGH FREQUENCY
JEDEC-95 codeDO-7
JESD-30 codeO-LALF-W2
JESD-609 codee0
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
minimum quality factor60
Maximum reverse current5e-7 µA
Reverse test voltage20 V
surface mountNO
Terminal surfaceTIN LEAD
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Varactor Diode ClassificationHYPERABRUPT

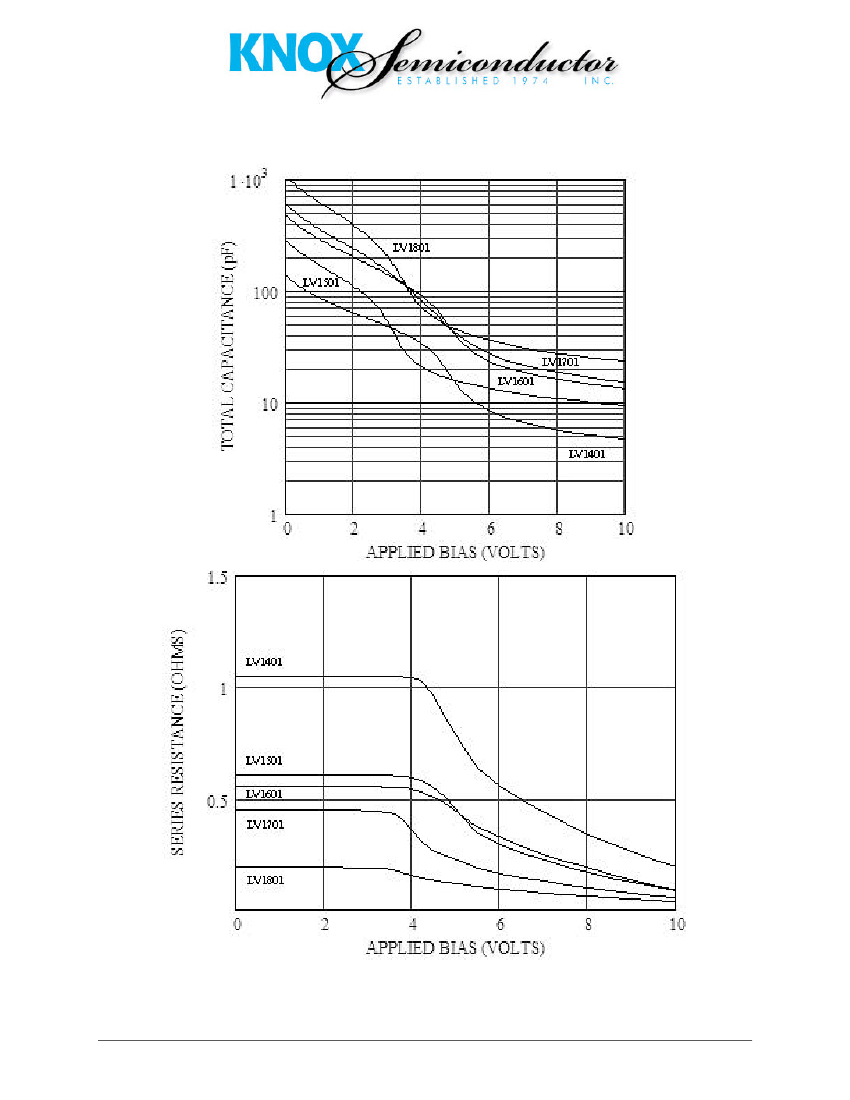

CHARACTERIZATION CURVES
P.O. BOX 609
?
ROCKPORT, MAINE 04856
?
207-236-6076
?
FAX 207-236-9558
