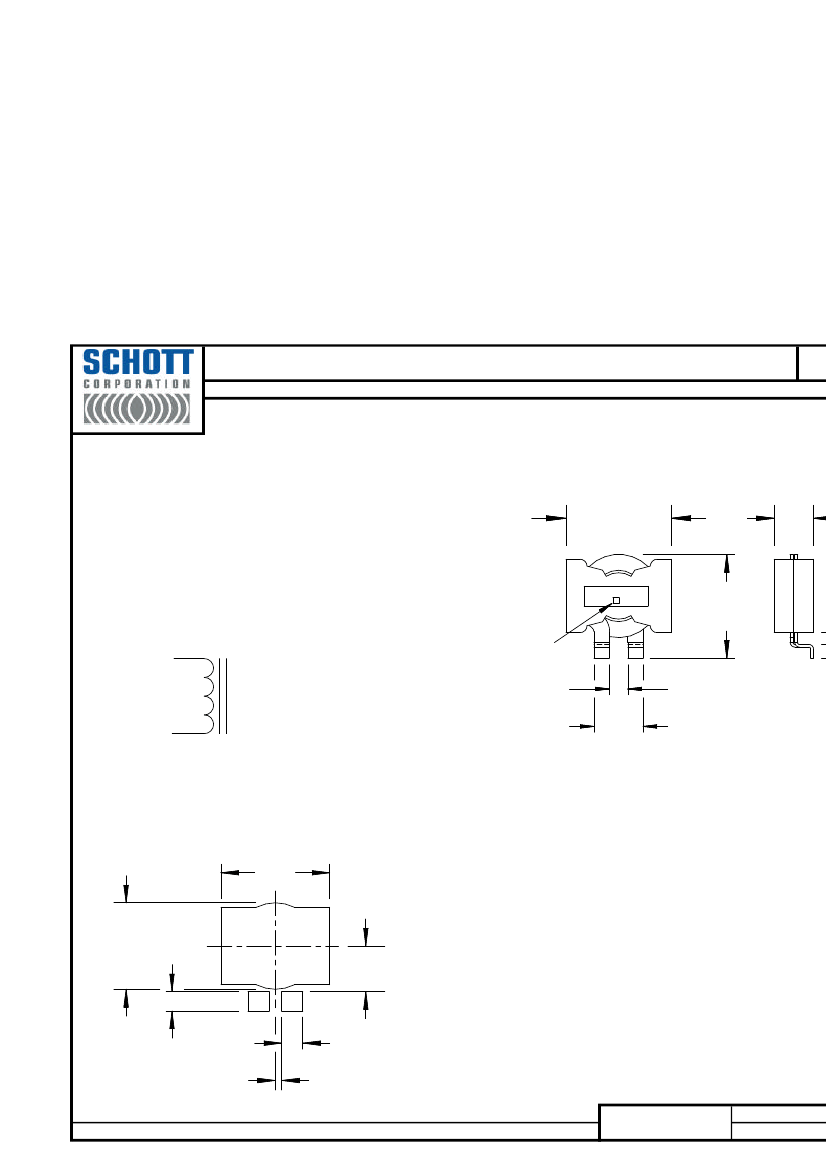

TITLE

INDUCTOR, PQ26X10.2 mm, 1 µH, 50 ADC

AGENCY APPROVAL: NA

SPECIFICATIONS:

TEMPERATURE RATING: 130°C STORAGE, 100°C OPERATIONAL.

1. INDUCTANCE: 0.9 - 1.1 µH @ 0.1 VRMS, 100 kHz.

2. DC RESISTANCE: 0.82 mOHMS MAX.

3. HIPOT (2 SECONDS, 5 mA MAX): 300 VRMS

WINDING TO CORE.

1.090 MAX

[27.69]

39774 SCHOTT

YYWW-

1.100 MAX

[27.94]

PLANT CODE

.188 ± .020

[4.78]

.500 ± .020

[12.70]

COPLANARITY

LEADS

SUGGESTED PCB

FOOTPRINT

1.110

[28.19]

(mm)

.880

[22.35]

.200

[5.08]

.464

[11.79]

.216

[5.49]

.064

[1.63]

TOLERANCES UNLESS

OTHERWISE SPECIFIED

INCHES / DECIMAL

MILLIMETERS (mm)

1000 Parkers Lake Road, Wayzata, MN 55391, (952) 475-1173, www.schottcorp.com
