39761: DescriptionTRANSFORMER,ADSL; File Size34KB，1 Pages; ManufacturerSCHOTT; Websitehttp://www.schottcorp.com/default.asp

Download Datasheet View All

39761 Overview

TRANSFORMER,ADSL

Preview

Download Datasheet

View All

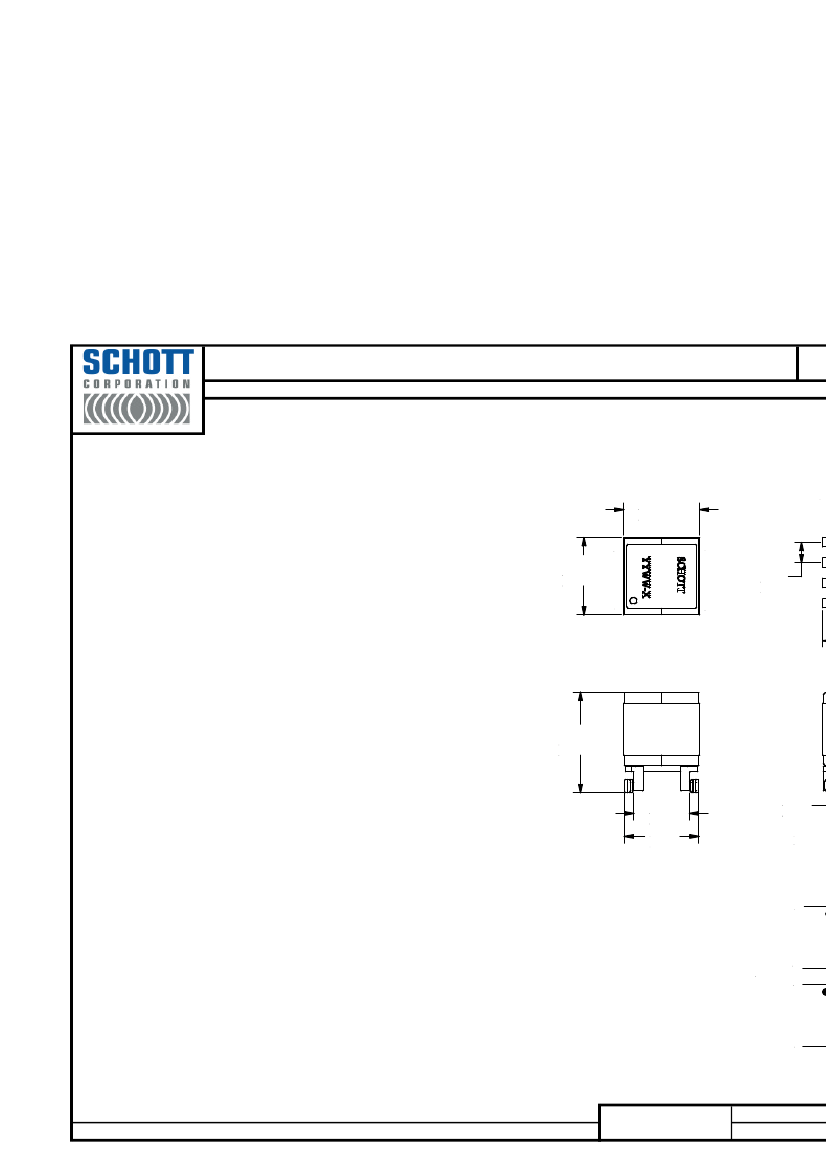

TITLE

TRANSFORMER,ADSL

AGENCY APPROVAL: PENDING

SPECIFICATIONS

Designed to meet UL1950/EN60950 with supplementary

insulation for a working voltage of 250V.

TEMP CLASS: 155° C, FLAMABILITY: UL94V-0

OPERATING TEMPERATURE RANGE -40°C TO +85°C

1. INDUCTANCE: @ 0.1 Vrms, 10 kHz

1-4(tie 2-3)= 1.3-1.5mH (1.4mH NOM)

2. LEAKAGE INDUCTANCE: @ 0.1 Vrms, 100 kHz

1-4 (tie2-3) short 8-5(tie 6-7)=10uH MAX

3. IWC: @ 100 kHz, 0.1 Vrms

1-4 tie (3&2) to 8-5 tie (6-7) = 55 pF

4. TURNS RATIO: 1-3 : 2-4 : 8-6 : 7-5 = 1.33 : 1.33 : 1 : 1 ± 2%

5. DC RESISTANCE: OHMS MAX

1-3=2-4=1.8

8-6=7-5=0.95

6. HIPOT: 1500 Vrms, 1 MINUTE

(1800 Vrms OR 2500 VDC FOR 1 SECOND)

1&2 TO 8&7

7. LONGITUDINAL BALANCE:

40dB MIN 25kHz-1.1MHz

8. HARMONIC DISTORTION: 4.24Vrms

80 dB MAX @30kHz w/30 mA line current

75 dB MAX @200kHz w/30 mA line current

9. INSERTION LOSS:

.5dB MAX @ 100kHz

.350 MAX

[8.89]

39761

.385 MAX

[9.78]

.098

[2.50]

.488 MAX

[12.40]

.250

[6.35]

.335

[8.51]

.098

[2.50]

NOTE

COPLA

LINE

1000 Parkers Lake Road, Wayzata, MN 55391, (952) 475-1173, www.schottcorp.com

TOLERANCES UNLESS

OTHERWISE SPECIFIED

INCHES / DECIMAL

MILLIMETERS (mm)
