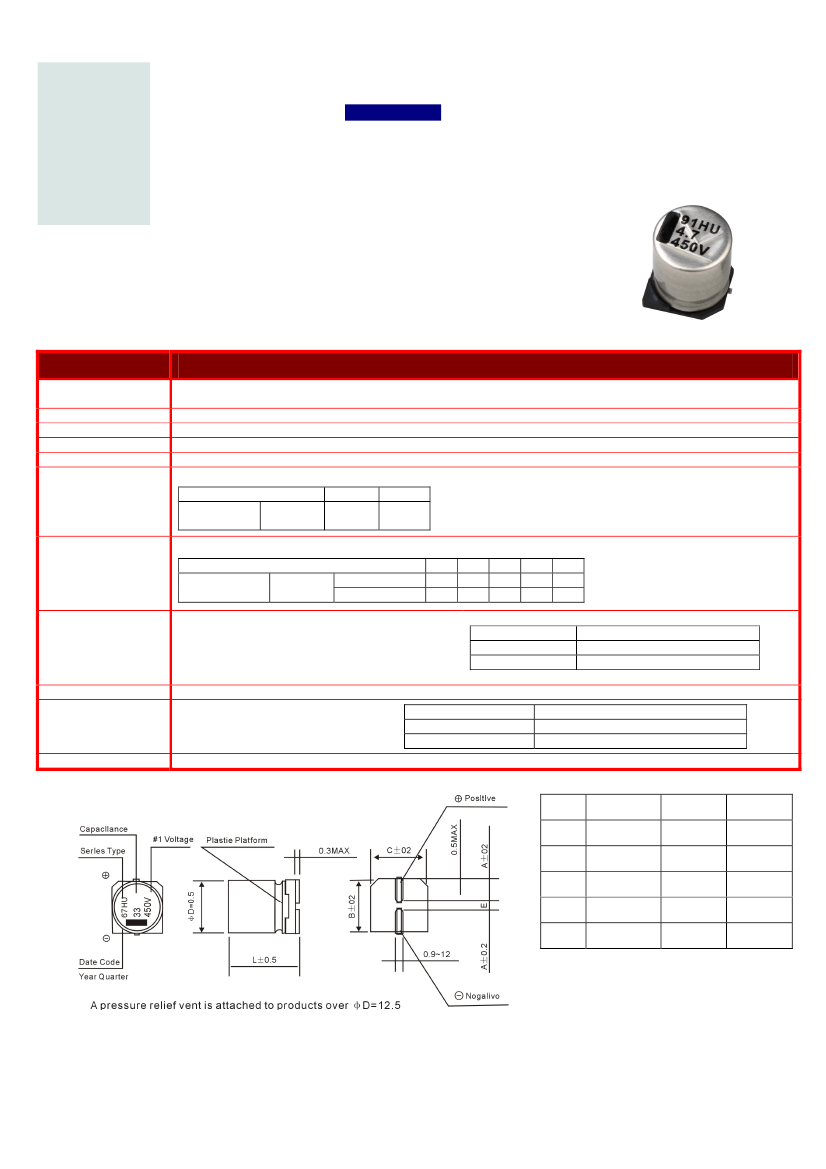

ALUMINUM ELECTROLYTIC CAPACITORS
C H IP TYPE S ER IE S
Suntan
®
TS13CC
Mid-To-High Voltage
Specifications
Operating
Temperature
Range
Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
-40℃ ~ +125℃
FEATU R E S
‧
Load life of 5000 hours with temperature up to +125℃
‧
Case size from Ø12.5 to Ø16
‧
Lead-free reflow soldering is available subject to customers’ request.
I T E M S P E R F O R M A N C E
C H A R A C T E R I S T I C S
160~450V
3.3~68μF
±20% at 120Hz, 20℃
After 2 minutes’ application of rated voltage, leakage current is not more than 0.04CV or 100μA
Measurement frequency : 120Hz, Temperature : 20℃
Rated voltage (V)
160~250 400,450
Tan
δ
(MAX)
Ø12.5~Ø16
0.15
0.20
Measurement frequency : 120Hz
Rated voltage (V)
Impedance ratio
Z-25℃ / Z+20℃
Ø12.5~Ø16
ZT / Z20 (MAX)
Z-40℃ / Z+20℃
Tan
δ
Stability at
Low Temperature
160
3
6
200
3
6
250
3
6
400
6
10
450
6
10
Within
±
30% of initial value
Initial specified value or less
300% or less of initial specified value
Load Life
After 5000 hours’ application of rated voltage at 105℃,
capacitors meet the characteristics requirements listed at right
Capacitance Change
Leakage Current
Tan
δ
Self Life
Resistance to Soldering
Heat
Applicable Standards
After leaving capacitors under no load at 105℃ for 1000 hours, they meet the specified value for load life characteristics listed above.
After reflow soldering according and restored
at room temperature, they meet the
characteristics requirements listed at right.
JIS C-5141 and JIS C-5102
Capacitance Change
Tan
δ
Leakage Current
Within
±
10% of initial value
Initial specified value or less
Initial specified value or less
Chip type
D×L
A
B
C
E±0.2
L
Φ12.5×13.5
4.7
13.0
13.0
4.6
13.5
Φ12.5×16
4.7
13.0
13.0
4.6
16.0
Φ16×16.5
5.5
17.0
17.0
6.7
16.5
Re: Date code and series type—1stdigit for Year;
3rd&4thcharacters for Series.
2nddigit for Quarter, 4 quarter codes in one year are 1, 4, 7, O;
Suntan
®
Technology Company Limited
Website: www.suntan.com.hk
Email: info@suntan.com.hk
Tel: (852) 8202 8782
Fax: (852) 8208 6246
ALUMINUM ELECTROLYTIC CAPACITORS
C H IP TYPE S ER IE S
Suntan
®
TS13CC
Standard size & Maximum permissible ripple current
WV
Cap.(μF)
3.3
4.7
10
22
33
47
68
3R3
4R7
100
220
330
470
680
12.5×13.5
12.5×13.5
16×16.5
16×21.5
85
95
260
320
CaseSize
12.5×13.5
12.5×16
16×16.5
80
110
220
Ripple
Current
12.5×13.5
12.5×16
16×16.5
65
105
180
12.5×16
16×16.5
50
85
160
2C
200
2D
250
2E
400
2G
450
2W
12.5×13.5
12.5×16
16×16.5
40
50
85
Ripple Current (mA rms) at 105
℃
120Hz
Frequency Coefficient Factor of Rated Ripple Current
Frequency
Coefficient
50Hz
0.80
120Hz
1.00
300Hz
1.25
1kHz
1.40
10kHz~
1.60
Note: Specification are subject to change without notice. For more detail and update, please visit our website.
