REV.
A
REVISION
DESCRIPTION
Changed P1 Pin Out
DATE
03-12-07
APPROVED
DP
1
5
3
1
2
6
4
2
3
4 5 6 7
1830 ± 50
8
7 6 5 4
3
5
3
2 1
6
4
2
P2
10.2 ± 0.5
10.2 ± 0.5
1
FRONT

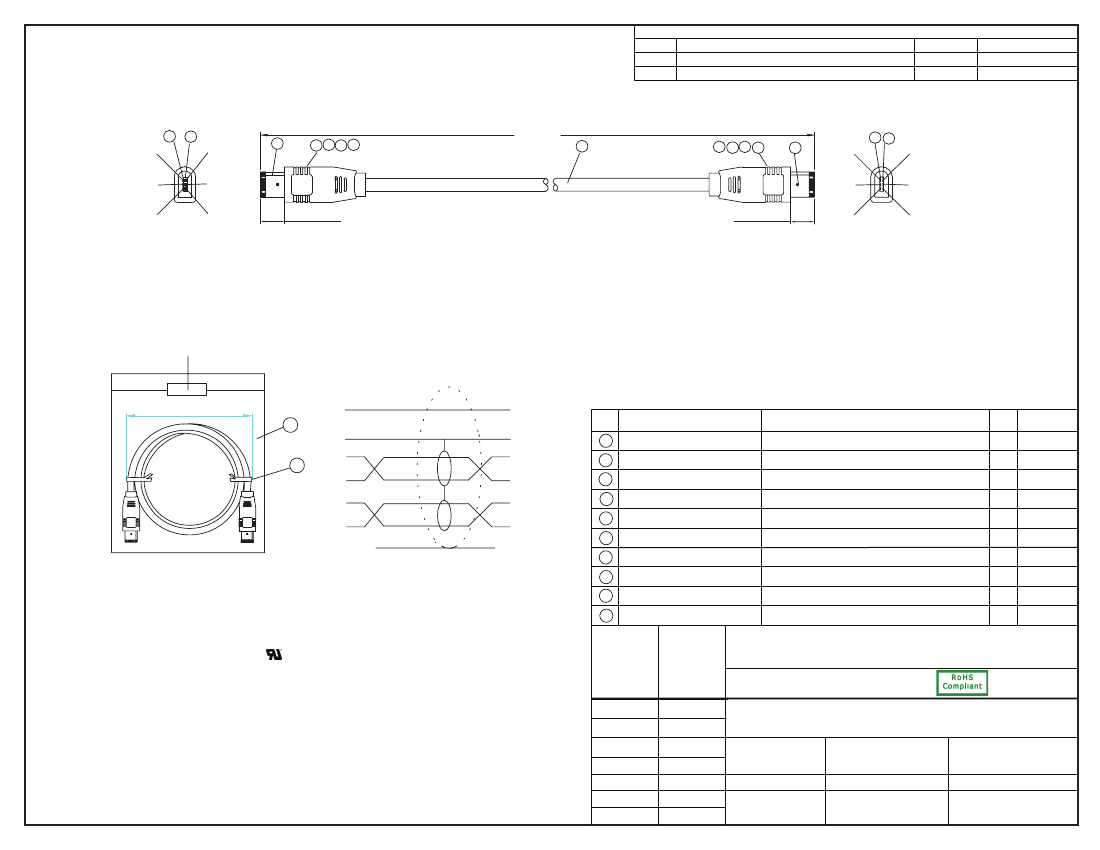

IEEE 1394 6P/M MOLDING TYPE
(TOOLING NO: G102-216)
IEEE 1394 6P/M MOLDING TYPE
(TOOLING NO: G102-216)
FRONT
TAPE
P1
120 ± 20
10
2
9
3
4
5
6
SHELL
1
PIN OUT
P2
WHITE
BLACK
TWIST PAIR SPIRAL
GREEN
RED
BLUE
ORANGE
OUTER BRAID
1
2
5
6
3
4
SHELL
No.
1
2
3
4
5
6
7
8
9
10
PARTS NAME
6P/M - CONTACT
6P/M - INSULATOR
6P/M - SHELL 1
6P/M - SHELL 2
COPPER FOIL
6P/M - INNER MOLD
6P/M - OUTER MOLD
KL02001ABK01A
MINI TIE
POLYBAG
SPECIFICATION STANDARD
PHOSPHOR BRONZE / GOLD FLASH
PBT / BLACK UL94V-0
IRON / NICKEL PLATED
IRON / NICKEL PLATED
5x10mm
PE / NATURAL
45P PVC / COLOR: BLACK
[(30AWGx1P+FOIL+SP)x2+24AWGx2C+MYLAR
+FOIL+BD]x1 COLOR: BLACK
QTY REMARKS
12
2
2
2
2
2
2
1
2
1
NOTES:
1. CABLE: UL20276 IEEE1394
[(30AWGx1P+FOIL+SP)x2+24AWGx2C+MYLAR+FOIL+BD]x1
OUTER PVC JACKET: BLACK, OD: 5.7 ± 0.2mm
PRINTING: “E166307
AWM 20276 30AWG VW-1 IEEE
Std 1394 Compliant”
2. CONNECTORS: IEEE 1394 6P MALE TO IEEE 1394 6P MALE
3. HOOD: MOLDED TYPE, COLOR: BLACK
4. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
<2>. INSULATION RESISTANCE: DC400V 10M ohm MIN.
<3>. CONDUCTOR RESISTANCE: 3 ohm MAX.
5. PACKING: 1PC/POLYBAG
PE / BLACK
PE / 0.08x160x180mm
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Qualtek Electronics Corp.
Part Number:
Description:
WCT DIVISION
1821007-06
IEEE 1394 6P/M - IEEE 6P/M
REV. A
Drawn / Date
B. Grubb
01-25-07
Checked / Date
01-25-07
Approved / Date
JJH / 01-25-07
