98426-F15-13-290LF datasheet, PDF

98426-F15-13-290LF: DescriptionBoard Stacking Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Cream Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

98426-F15-13-290LF Overview

Board Stacking Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Cream Insulator, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHROUDED
body width	0.228 inch
subject depth	1.142 inch
body length	1.102 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	910VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	CREAM
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	98426
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0

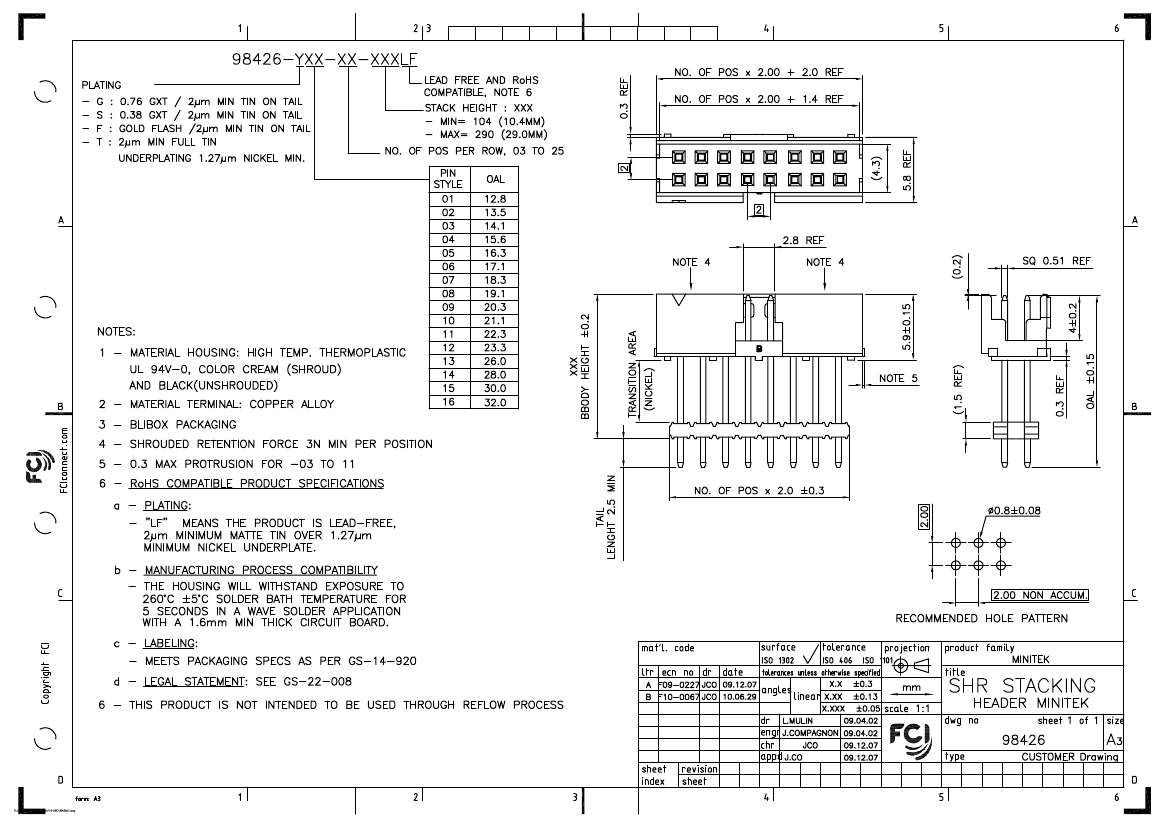

PDM: Rev:B

STATUS:

Released

Printed: Jul 02, 2010
