ICS8304AM-01: DescriptionLow Skew Clock Driver, 8304 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8, 3.80 X 4.80 MM, 1.47 MM HEIGHT, MS-012, SOIC-8; Categorylogic logic; File Size138KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

ICS8304AM-01 Overview

Low Skew Clock Driver, 8304 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8, 3.80 X 4.80 MM, 1.47 MM HEIGHT, MS-012, SOIC-8

ICS8304AM-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	not_compliant
Other features	ALSO OPERATES AT 2.5V OUTPUT SUPPLY
series	8304
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs	4
Number of terminals	8
Actual output times
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	3.3 V
Prop。Delay @ Nom-Sup	3.5 ns
propagation delay (tpd)	3.6 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.05 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.465 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm

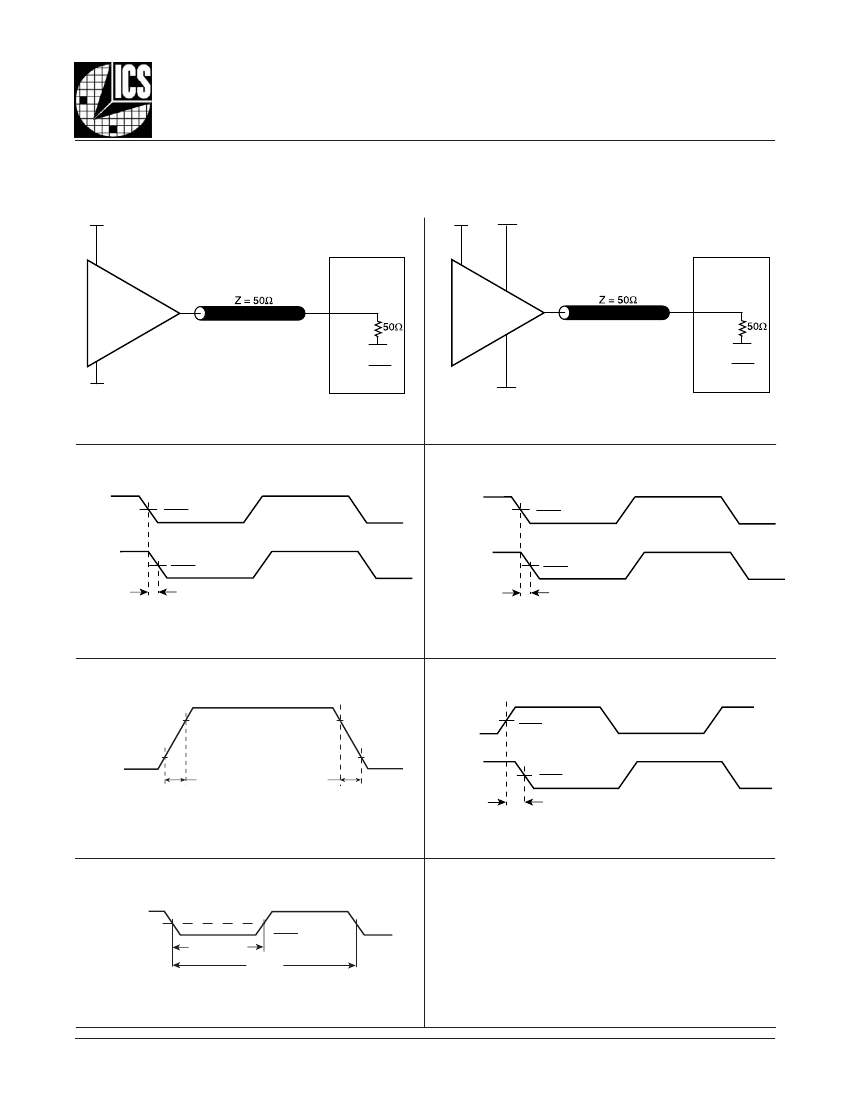

Preview

Download Datasheet

View All

Integrated

Circuit

Systems, Inc.

ICS8304-01

KEW

, 1-

-4

LVCMOS / LVTTL I

NVERTING

ANOUT

UFFER

EATURES

•

4 LVCMOS / LVTTL outputs

•

LVCMOS clock input

•

Maximum output frequency: 166MHz

•

Output skew: 50ps (maximum)

•

Part-to-part skew: 600ps (maximum)

•

Small 8 lead SOIC package saves board space

•

3.3V input, outputs may be either 3.3V or 2.5V supply modes

•

0°C to 70°C ambient operating temperature

ENERAL

ESCRIPTION

The ICS8304-01 is a low skew, 1-to-4 Invert-

ing Fanout B u f fe r a n d a m e m b e r o f t h e

HiPerClockS™

HiPerClock S ™ family of High Perfor mance

Clock Solutions from ICS. The ICS8304-01

is characterized at full 3.3V for input V

, and

mixed 3.3V and 2.5V for output operating supply modes

DDO

). Guaranteed output and par t-to-par t skew char-

acteristics make the ICS8304-01 ideal for those clock

distribution applications demanding well defined per-

for mance and repeatability.

ICS

LOCK

IAGRAM

nQ0

SSIGNMENT

DDO

CLK

GND

nQ3

nQ2

nQ1

nQ0

nQ1

CLK

nQ2

ICS8304-01

8-Lead SOIC

3.8mm x 4.8mm x 1.47mm package body

M Package

Top View

nQ3

8304AM-01

www.icst.com/products/hiperclocks.html

REV. D MARCH 1, 2004

ICS8304AM-01 Related Products

	ICS8304AM-01	ICS8304AM-01T
Description	Low Skew Clock Driver, 8304 Series, 4 True Output(s), 0 Inverted Output(s), PDSO8, 3.80 X 4.80 MM, 1.47 MM HEIGHT, MS-012, SOIC-8	Low Skew Clock Driver, 8304 Series, 0 True Output(s), 4 Inverted Output(s), PDSO8, 3.80 X 4.80 MM, 1.47 MM HEIGHT, MS-012, SOIC-8
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SOIC	SOIC
package instruction	SOP, SOP8,.25	3.80 X 4.80 MM, 1.47 MM HEIGHT, MS-012, SOIC-8
Contacts	8	8
Reach Compliance Code	not_compliant	not_compliant
Other features	ALSO OPERATES AT 2.5V OUTPUT SUPPLY	ALSO OPERATES AT 2.5V OUTPUT SUPPLY
series	8304	8304
Input adjustment	STANDARD	STANDARD
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0
length	4.9 mm	4.9 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1	1
Number of functions	1	1
Number of inverted outputs	4	4
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	3.5 ns	3.5 ns
propagation delay (tpd)	3.6 ns	3.6 ns
Certification status	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.05 ns	0.05 ns
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	3.465 V	3.465 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
width	3.9 mm	3.9 mm
