REG5601E-TR datasheet, PDF - EEWORLD Datasheet

REG5601E-TR: DescriptionSCSI Terminator, 18-Line, 110ohm, PDSO28,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size122KB，3 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

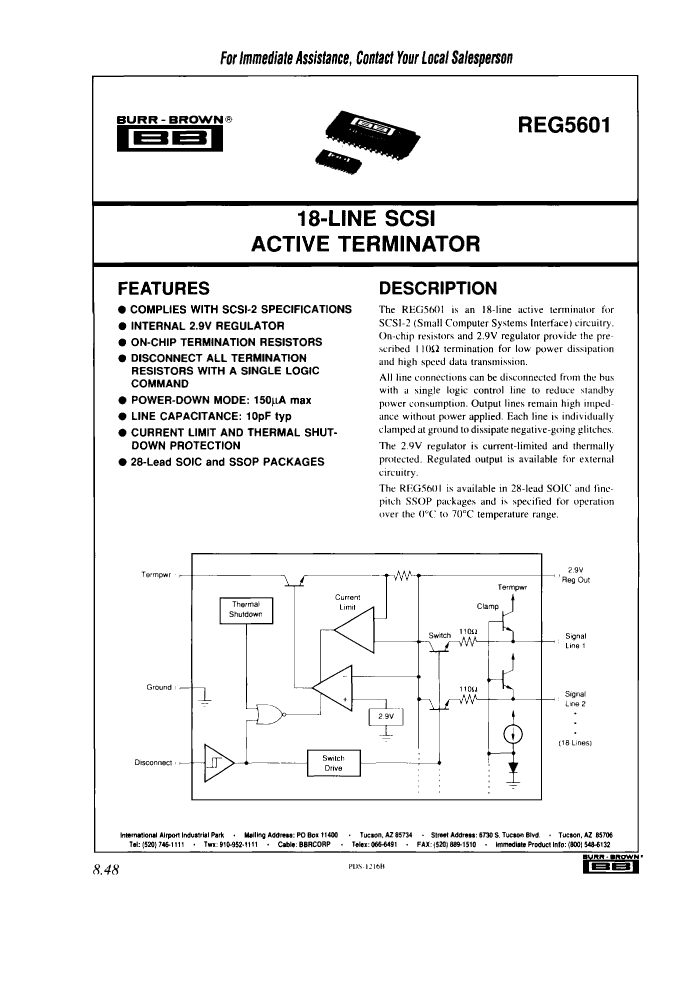

REG5601E-TR Overview

SCSI Terminator, 18-Line, 110ohm, PDSO28,

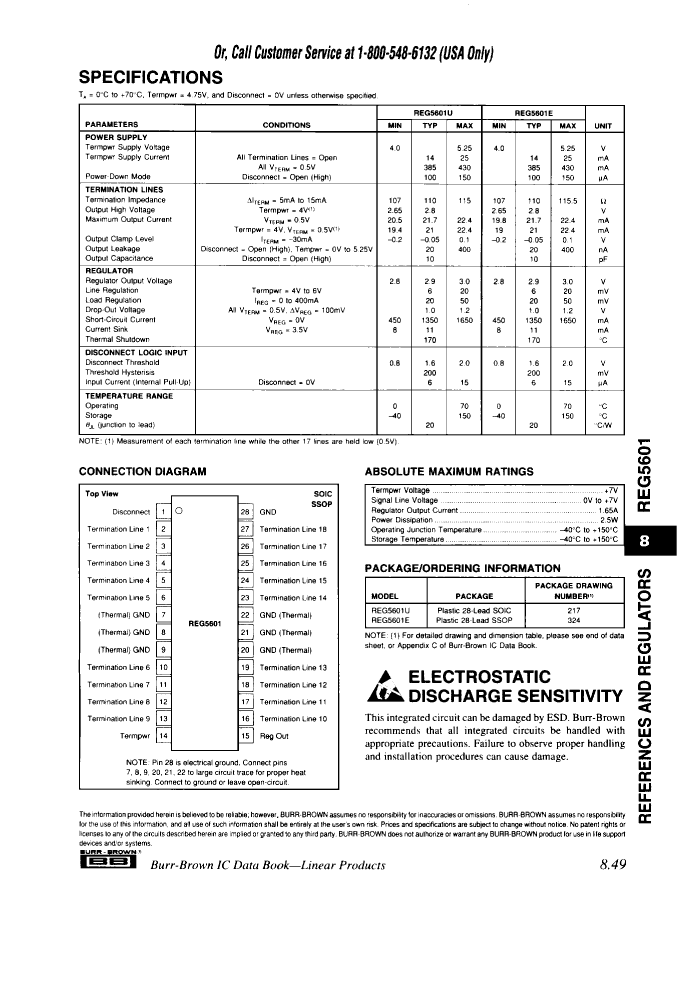

Parameter Name	Attribute value
Maker	Burr-Brown
Reach Compliance Code	unknown
Differential output	NO
Interface integrated circuit type	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G28
Number of functions	1
Number of signal lines	18
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Nominal pull-up resistor	110 Ω
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4 V
Nominal supply voltage	4.75 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

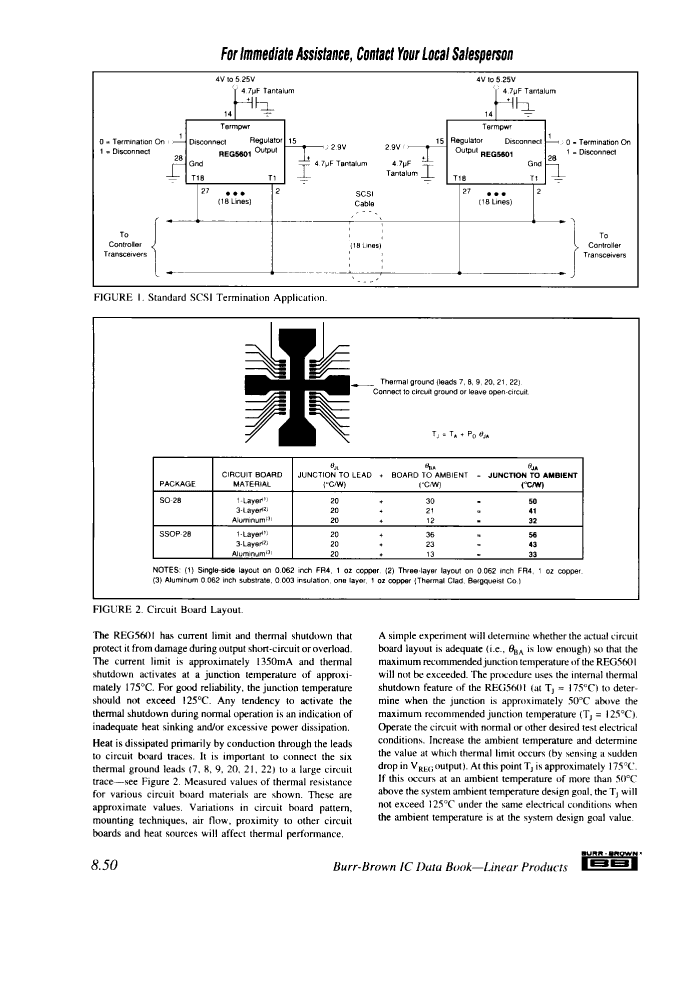

	REG5601E-TR	REG5601U-TR
Description	SCSI Terminator, 18-Line, 110ohm, PDSO28,	SCSI Terminator, 18-Line, 110ohm, PDSO28,
Maker	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown
Differential output	NO	NO
Interface integrated circuit type	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G28	R-PDSO-G28
Number of functions	1	1
Number of signal lines	18	18
Number of terminals	28	28
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Nominal pull-up resistor	110 Ω	110 Ω
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4 V	4 V
Nominal supply voltage	4.75 V	4.75 V
surface mount	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
