DSC2240FE2-D0001 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DSC2240FE2-D0001

DSC2240FE2-D0001: DescriptionCRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT; CategoryPassive components oscillator; File Size540KB，5 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DSC2240FE2-D0001 Overview

CRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT

DSC2240FE2-D0001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; OTHER O/P FREQ ALSO AVL; TUBE
maximum descent time	0.4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	156.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HSCL
Output load	50 OHM
physical size	3.2mm x 2.5mm x 0.85mm
longest rise time	0.4 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	2.25 V
surface mount	YES
maximum symmetry	52/48 %

Preview

Download Datasheet

View All

DSC2140

DSC2240

Low-Jitter I

C/SPI Programmable HCSL Oscillator

General Description

The DSC2140 and DSC2240 series of

programmable,

high-performance

HCSL

oscillators utilizes a proven silicon MEMS

technology to provide excellent jitter and

stability while incorporating high output

frequency flexibility. DSC2140 and DSC2240

allow the user to modify the output

frequency using I

C or SPI interface,

respectively. User can also select from two

pre-programmed default output frequencies

using the control pin.

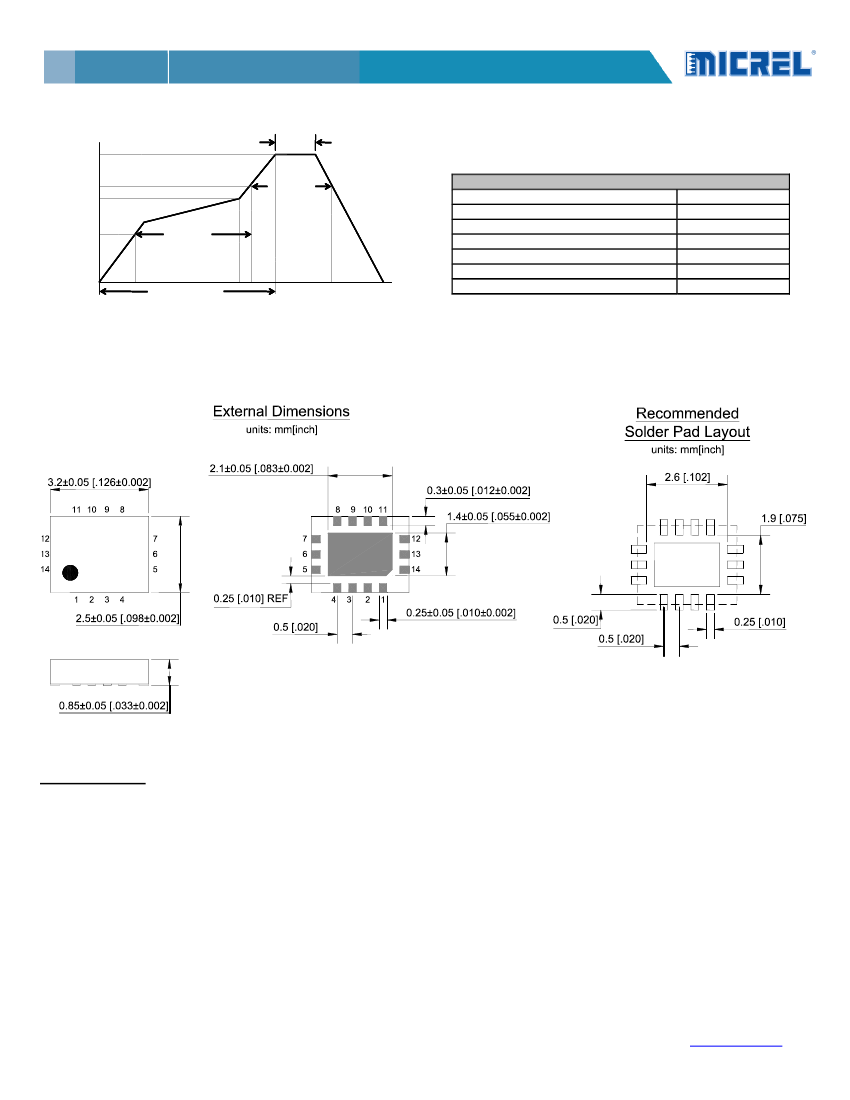

DSC2140 and DSC2240 are packaged in 14-

pin 3.2x2.5 mm QFN packages and available

in temperature grades from Ext. Commercial

to Industrial.

Features



Low RMS Phase Jitter: <1 ps (typ)



High Stability: ±10, ±25, ±50 ppm



Wide Temperature Range

Industrial: -40° to 85° C

Ext. commercial: -20° to 70° C



High Supply Noise Rejection: -50 dBc



C/SPI Programmable Output Freq



Wide Freq. Range:

HCSL Output: 2.3 to 460 MHz



Miniature Footprint of 3.2x2.5mm



Excellent Shock & Vibration Immunity

Qualified to MIL-STD-883



High Reliability

20x better MTF than quartz oscillators



Supply Range of 2.25 to 3.6 V



Lead Free & RoHS Compliant

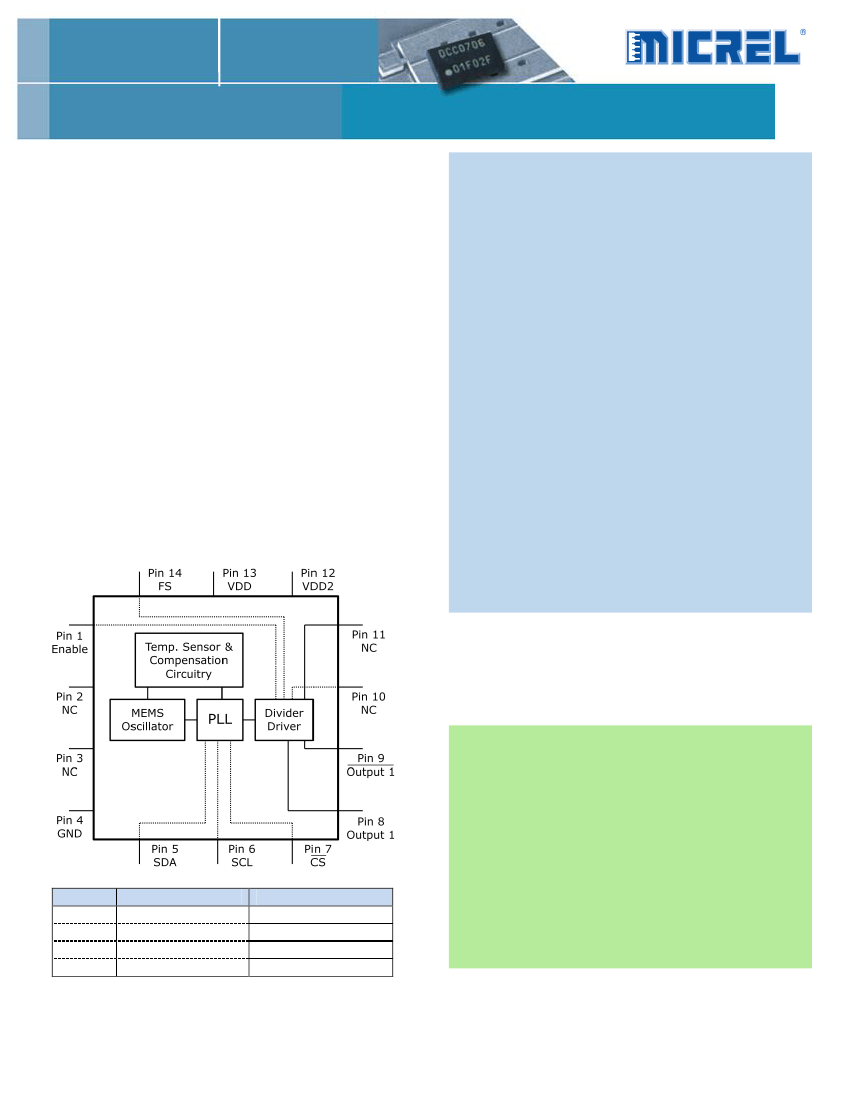

Block Diagram

Applications



Consumer Electronics



Storage Area Networks

SATA, SAS, Fibre Channel



Passive Optical Networks

EPON, 10G-EPON, GPON, 10G-PON



Ethernet

1G, 10GBASE-T/KR/LR/SR, and FCoE



HD/SD/SDI Video & Surveillance



PCI Express

Pin #

DSC2140 (I

SDA

SCL

CS_bar

DSC2240 (SPI)

SCLK

MOSI

MISO

_____________________________________________________________________________________________________________________________ _________________

DSC2140 DSC2240

Page 1

MK-Q-B-P-D-12050110

DSC2240FE2-D0001 Related Products

	DSC2240FE2-D0001	DSC2140FE5-D0001	DSC2140FE5-D0001T	DSC2240FE5-D0001T	DSC2240FI1-D0001
Description	CRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT	CRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT	CRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT	CRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT	CRYSTAL OSCILLATOR, CLOCK, HSCL OUTPUT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; OTHER O/P FREQ ALSO AVL; TUBE	ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; OTHER O/P FREQ ALSO AVL; TUBE	ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; OTHER O/P FREQ ALSO AVL; TR	ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; OTHER O/P FREQ ALSO AVL; TR	ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; OTHER O/P FREQ ALSO AVL; TUBE
maximum descent time	0.4 ns	0.4 ns	0.4 ns	0.4 ns	0.4 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO
frequency stability	25%	10%	10%	10%	50%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	156.25 MHz	156.25 MHz	156.25 MHz	156.25 MHz	156.25 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-40 °C
Oscillator type	HSCL	HSCL	HSCL	HSCL	HSCL
Output load	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM
physical size	3.2mm x 2.5mm x 0.85mm	3.2mm x 2.5mm x 0.85mm	3.2mm x 2.5mm x 0.85mm	3.2mm x 2.5mm x 0.85mm	3.2mm x 2.5mm x 0.85mm
longest rise time	0.4 ns	0.4 ns	0.4 ns	0.4 ns	0.4 ns
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V
surface mount	YES	YES	YES	YES	YES
maximum symmetry	52/48 %	52/48 %	52/48 %	52/48 %	52/48 %
Maker	Microchip	-	-	Microchip	Microchip
package instruction	-	QFN, 14 PIN	QFN, 14 PIN	QFN, 14 PIN	-
