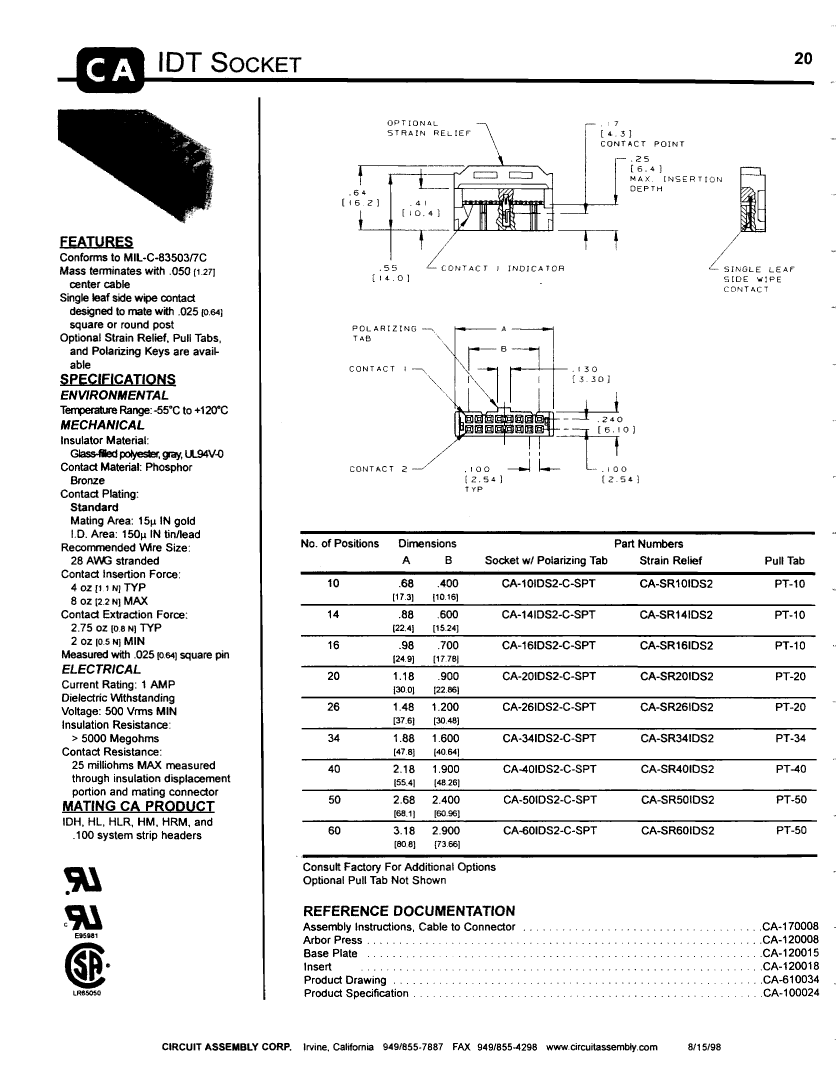

Preview

CA-16IDS2-C-SPT: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, IDC Terminal, Socket; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerCircuit Assembly

Download Datasheet Parametric Compare View All

CA-16IDS2-C-SPT Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, IDC Terminal, Socket

CA-16IDS2-C-SPT Parametric

Parameter Name	Attribute value
Maker	Circuit Assembly
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-83503/7C
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	CA
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

CA-16IDS2-C-SPT Related Products

	CA-16IDS2-C-SPT	CA-60IDS2-C-SPT	CA-34IDS2-C-SPT	CA-10IDS2-C-SPT	CA-14IDS2-C-SPT	CA-20IDS2-C-SPT	CA-40IDS2-C-SPT	CA-50IDS2-C-SPT
Description	Board Connector, 16 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 60 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 34 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 10 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 14 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 40 Contact(s), 2 Row(s), Female, IDC Terminal, Socket	Board Connector, 50 Contact(s), 2 Row(s), Female, IDC Terminal, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-83503/7C	STANDARD: MIL-C-83503/7C	STANDARD: MIL-C-83503/7C	STANDARD: MIL-C-83503/7C	STANDARD: MIL-C-83503/7C	STANDARD: MIL-C-83503/7C	STANDARD: MIL-C-83503/7C	STANDARD: MIL-C-83503/7C
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	CA	CA	CA	CA	CA	CA	CA	CA
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	16	60	34	10	14	20	40	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Circuit Assembly	-	Circuit Assembly	Circuit Assembly	Circuit Assembly	Circuit Assembly	Circuit Assembly	Circuit Assembly
