DTA143ZSA-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DTA143ZSA-C

DTA143ZSA-C: DescriptionSmall Signal Bipolar Transistor; CategoryDiscrete semiconductor The transistor; File Size464KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric Compare View All

DTA143ZSA-C Overview

Small Signal Bipolar Transistor

DTA143ZSA-C Parametric

Parameter Name	Attribute value
Maker	SECOS
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant
Other features	BUILT IN BIAS RESISTANCE RATIO IS 10
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

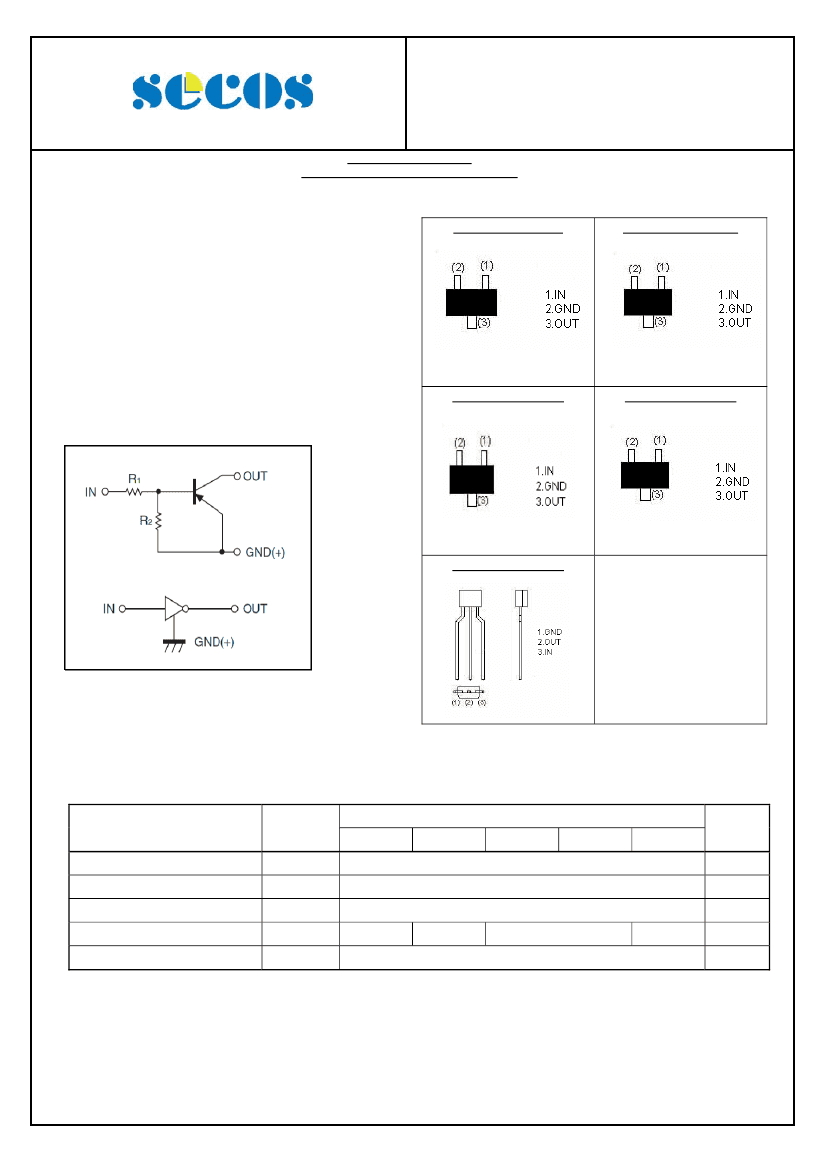

DTA143ZM / DTA143ZE

DTA143ZUA / DTA143ZCA / DTA143ZSA

Elektronische Bauelemente

PNP Digital Transistors (Built-in Resistors)

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES



Built-in bias resistors enable the configuration of an

inverter circuit without connecting external input

resistors (see equivalent circuit).

The bias resistors consist of thin-film resistors with

complete isolation to allow positive biasing of the

input. They also have the advantage of almost

completely eliminating parasitic effects.

Only the on/off conditions need to be set for

operation, making device design easy.

DTA143ZE (SOT-523)

DTA143ZUA(SOT-323)

Addreviated symbol：E13

DTA143ZM (SOT-723)

Addreviated symbol：113

DTA143ZCA (SOT-23)

EQUIVALENT CIRCUIT

Addreviated symbol：E13

DTA143ZSA (TO-92S)

Addreviated symbol：E13

ABSOLUTE MAXIMUM RATINGS

=25°C unless otherwise noted)

Parameter

Supply Voltage

Input voltage

Output current

Power dissipation

Junction & Storage temperature

Symbol

, T

STG

Limits (DTA143Z□)

-50

-30 ~ 5

-100

100

150

200

150, -55~150

300

Unit

°C

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

07-May-2012 Rev. B

Page 1 of 2

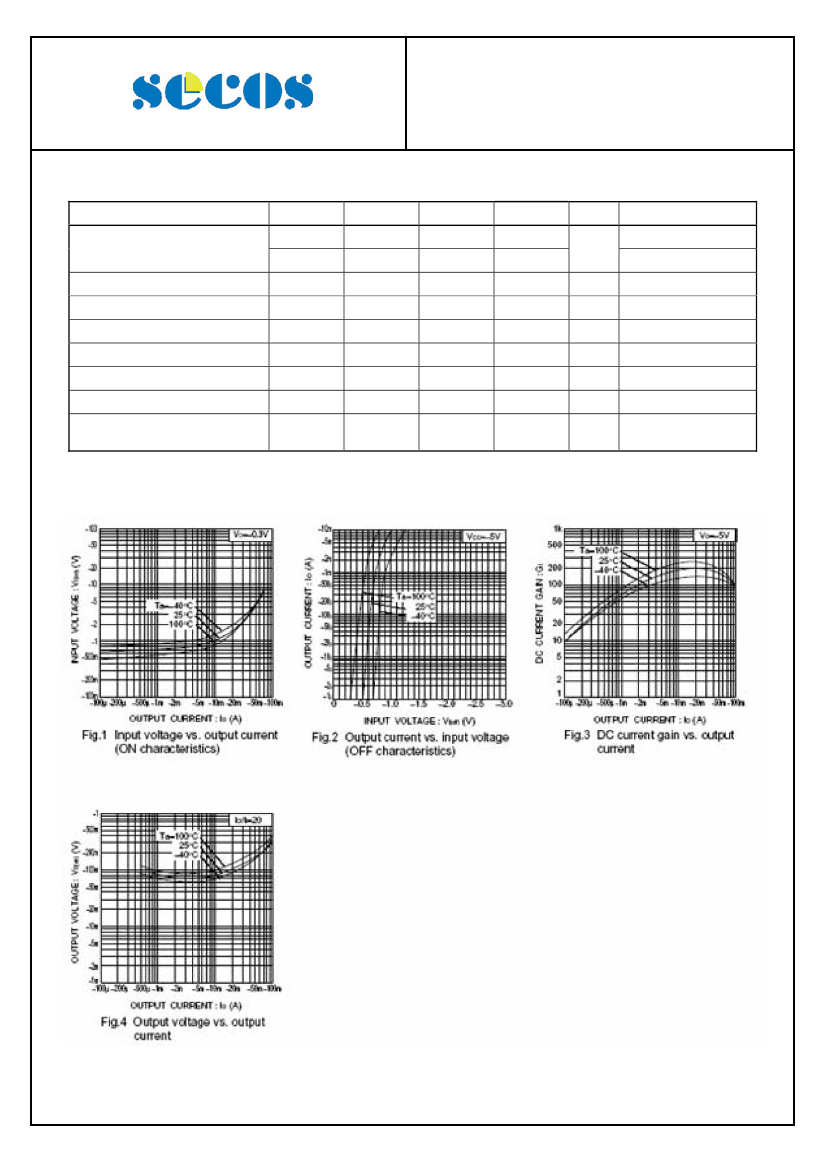

DTA143ZSA-C Related Products

	DTA143ZSA-C	DTA143ZM	DTA143ZM-C
Description	Small Signal Bipolar Transistor	Small Signal Bipolar Transistor	Small Signal Bipolar Transistor
Maker	SECOS	SECOS	SECOS
package instruction	CYLINDRICAL, O-PBCY-T3	SMALL OUTLINE, R-PDSO-F3	SMALL OUTLINE, R-PDSO-F3
Reach Compliance Code	compliant	compliant	compliant
Other features	BUILT IN BIAS RESISTANCE RATIO IS 10	BUILT IN BIAS RESISTANCE RATIO IS 10	BUILT IN BIAS RESISTANCE RATIO IS 10
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	50 V	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80	80	80
JESD-30 code	O-PBCY-T3	R-PDSO-F3	R-PDSO-F3
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP
surface mount	NO	YES	YES
Terminal form	THROUGH-HOLE	FLAT	FLAT
Terminal location	BOTTOM	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz
