54393-3328 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54393-3328

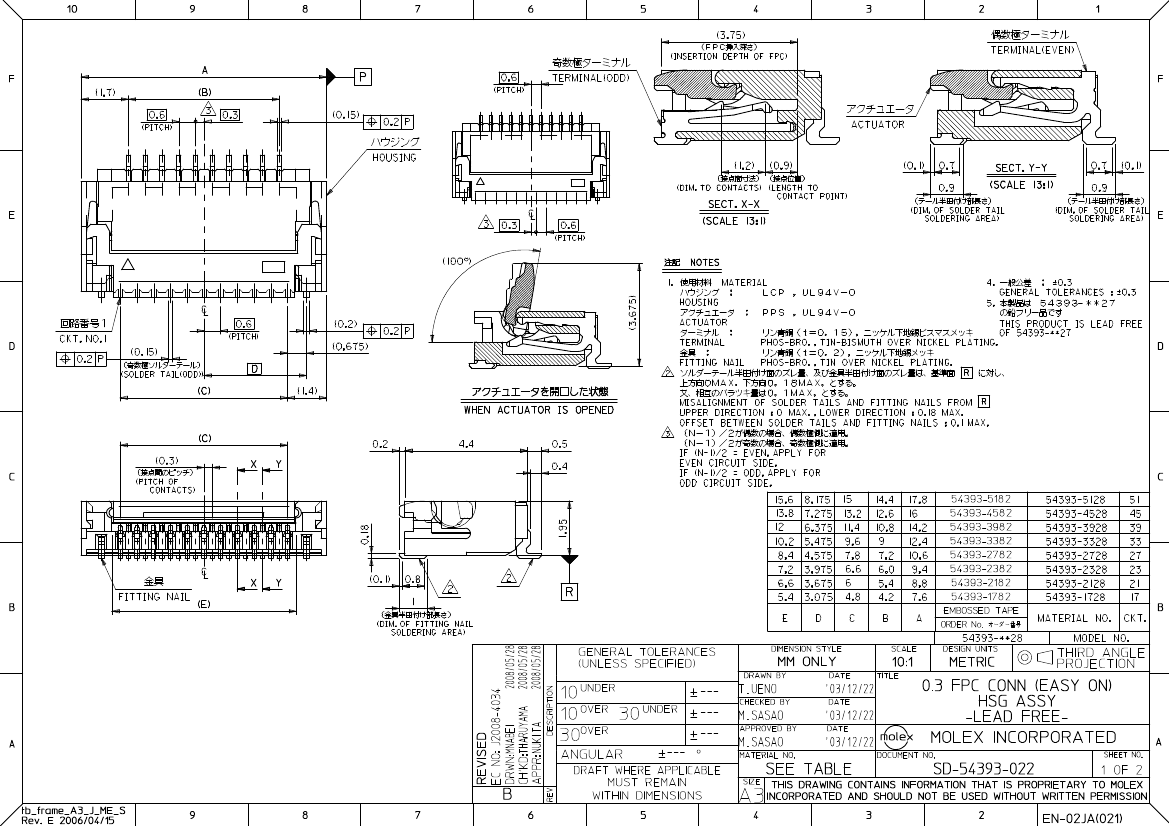

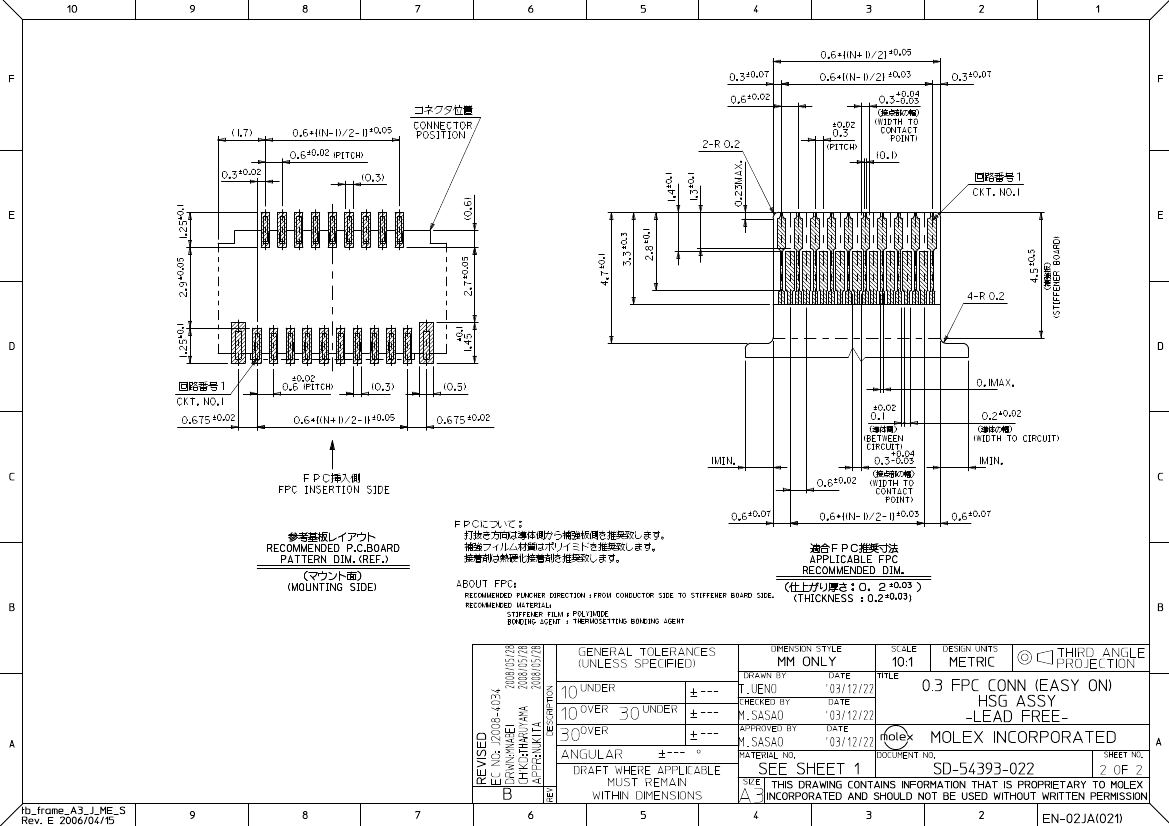

54393-3328: DescriptionCard Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE; CategoryThe connector The connector; File Size268KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54393-3328 Overview

Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE

54393-3328 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS AND ELV COMPLIANT
Board mount options	FITTING NAIL
body width	0.077 inch
subject depth	0.173 inch
body length	0.488 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	80 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.1402 mm
Plating thickness	8u inch
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	33
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

54393-3328 Related Products

	54393-3328	54393-1728	54393-2128	54393-2328	54393-2728	54393-3928	54393-4528	54393-5128
Description	Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 39 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 45 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch	0.077 inch
subject depth	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch
body length	0.488 inch	0.299 inch	0.346 inch	0.37 inch	0.417 inch	0.559 inch	0.63 inch	0.701 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI	SN-BI ON NI	SN-BI ON NI	SN-BI ON NI	SN-BI ON NI	SN-BI ON NI	SN-BI ON NI	SN-BI ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ	80 mΩ
Contact style	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch	0.012 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm	4.1402 mm
Plating thickness	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch	8u inch
Rated current (signal)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	33	17	21	23	27	39	45	51
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
