9246-9513-001: DescriptionRF SMA Connector, Male, Panel Mount, Plug; CategoryThe connector The connector; File Size463KB，13 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

9246-9513-001 Overview

RF SMA Connector, Male, Panel Mount, Plug

9246-9513-001 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Other features	INSERTION LOSS MAX AT 26 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Maximum operating frequency	26 GHz
Options	HERMETIC
Panel mounting	YES

Preview

Download Datasheet

View All

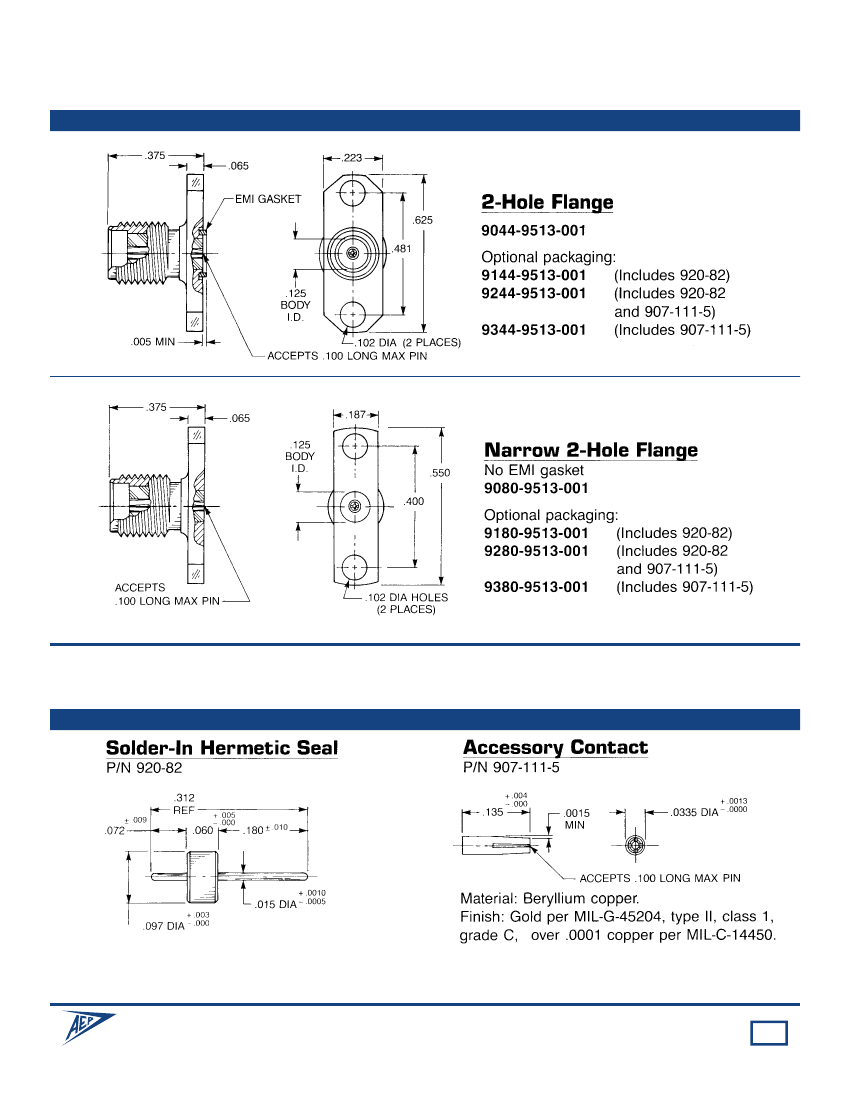

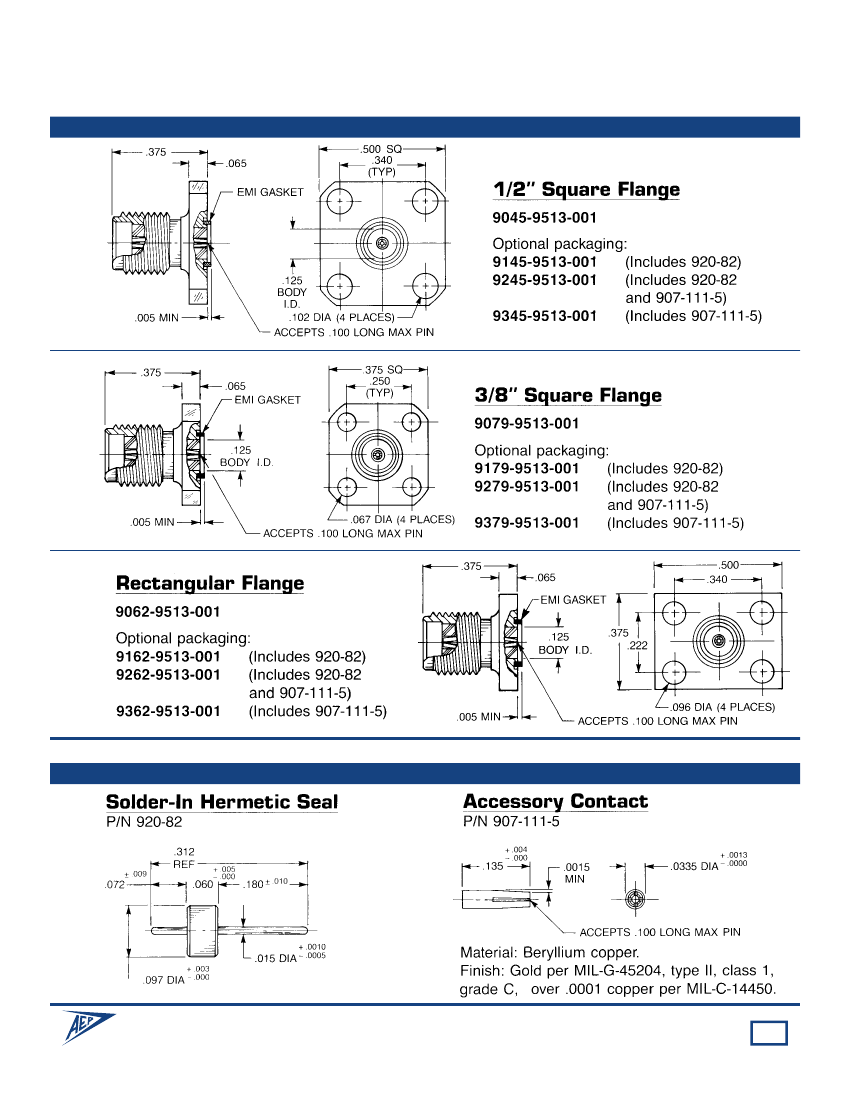

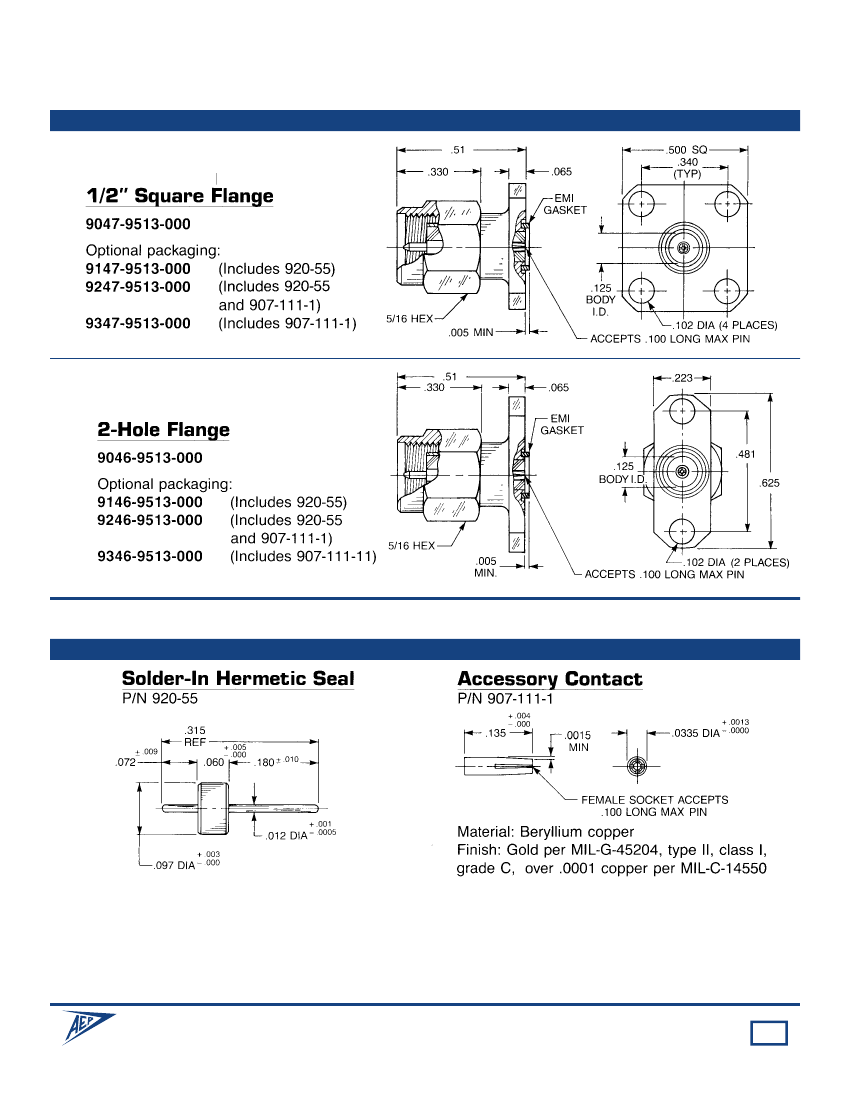

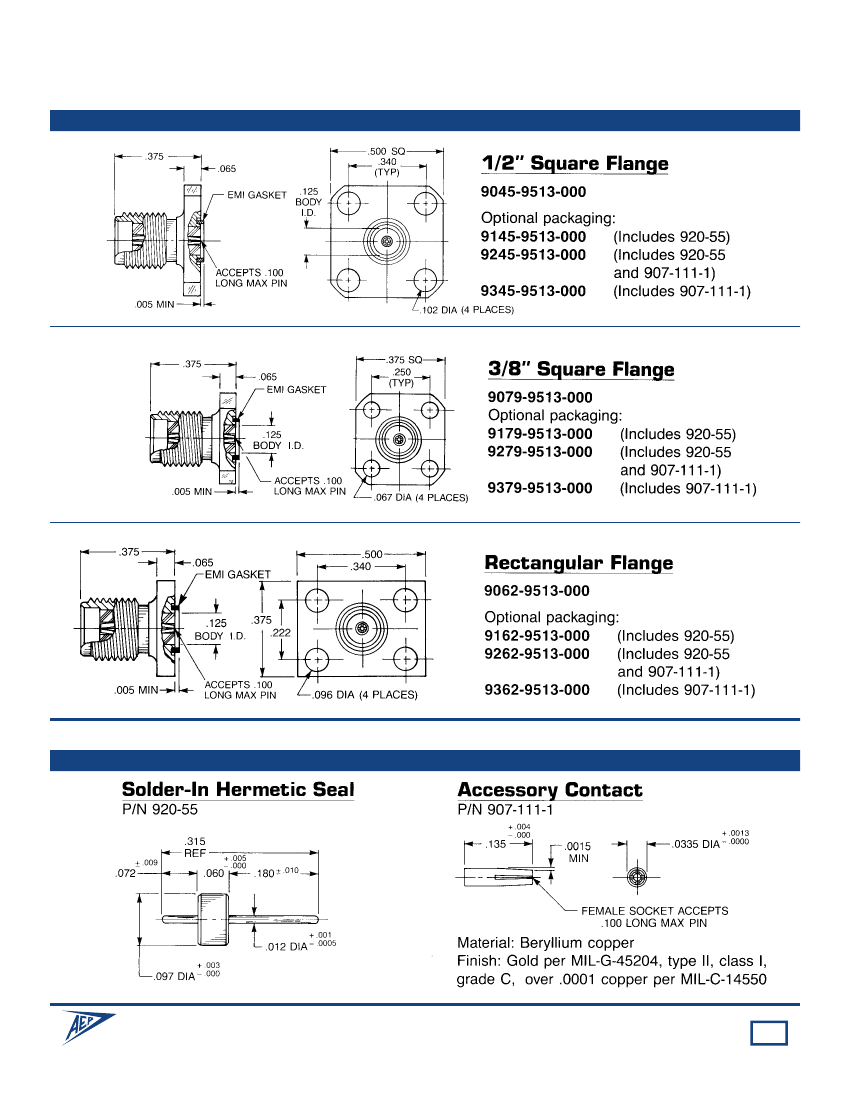

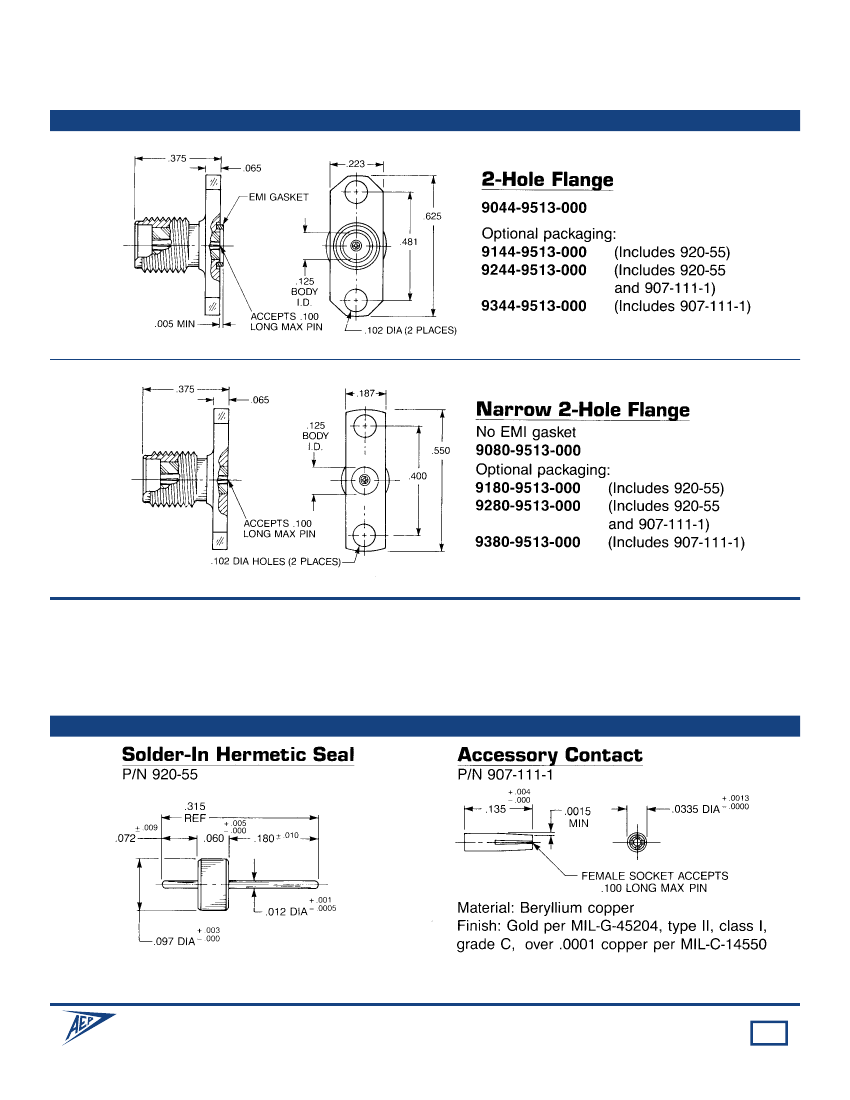

SMA Hermetic Seal Launchers

For hermetic seals with .012" diameter pins

Straight Jacks

These units accept hermetic seal pin diameters .011–.015"

Hermetic Seal and Accessory Contact

APPLIED ENGINEERING PRODUCTS

(203) 776-2813 • FAX (203) 776-8294

www.aepconnectors.com • aepsales@aepconnectors.com

33

9246-9513-001 Related Products

	9246-9513-001	9047-9513-001	9046-9513-001	9247-9513-001	9347-9513-001	9147-9513-001	9346-9513-001	9146-9513-001
Description	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug	RF SMA Connector, Male, Panel Mount, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	INSERTION LOSS MAX AT 26 GHZ	INSERTION LOSS MAX AT 26 GHZ	INSERTION LOSS MAX AT 26 GHZ	INSERTION LOSS MAX AT 26 GHZ	INSERTION LOSS MAX AT 26 GHZ	INSERTION LOSS MAX AT 26 GHZ	INSERTION LOSS MAX AT 26 GHZ	INSERTION LOSS MAX AT 26 GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA	SMA	SMA	SMA
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	26 GHz	26 GHz	26 GHz	26 GHz	26 GHz	26 GHz	26 GHz	26 GHz
Options	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC
Panel mounting	YES	YES	YES	YES	YES	YES	YES	YES
Maker	Radiall	-	Radiall	Radiall	Radiall	Radiall	Radiall	Radiall
