MB SERIES
MECHANICALS
MULTILAYER CHIP BEADS
l
FEATURE
1. The small size chips generating high impedance.
2. Either flow or reflow soldering methods can be used
due to electroplating of the terminal electrodes.
3. High reliability due to an entirely monolithic structure
4. Low DC resistance structure of electrode prevents
wasteful electric power consumption
l
APPLICATIONS
1. computers and peripheral equipment;
2. VCRs, Television,pagers
3. Cellular phones;
4. digital communication equipent;
5.Various electronics equipments;
6.Circuit where a stable ground is unavailable.
l
TYPE AND DIMENSIONS
TYPE
MB453215
(1812)
MB451616
(1806)
MB322513
(1210)
MB 321616
(1206)
MB 321611
(1206)
MB 201209
(0805)
MB160808
(0603)
A
4.5±0.2
(0.177±0.008)
4.5±0.2
(0.177±0.008)
3.2±0.2
(0.126±0.008)
3.2±0.2
(0.126±0.008)
3.2±0.2
(0.126±0.008)
2.0±0.2
(0.079±0.008)
1.6±0.2
(0.063±0.008)
B
3.2±0.2
(0.126±0.008)
1.6±0.2
(0.063±0.008)
2.5±0.2
(0.098±0.008)
1.6±0.2
(0.063±0.008)
1.6±0.2
(0.063±0.008)
1.2±0.2
(0.047±0.008)
0.8±0.2
(0.031±0.008)
l
特性
1.
尺寸小同時具有高阻值
2.
由于外電極是電鍍而成﹐適用
flow
和
reflow
兩種焊錫方式
3.
單石結構具有高信賴性
4.
電極之½直流阻抗可避免無謂的電
力損耗
l
用途
1.
電腦及周邊設備
2.
錄放½機﹐電視機﹐呼叫器
3.
手提電話
4.
數½通訊設備
5.
個種電子設備
6.
缺乏穩定基板之電路
C
1.5±0.2
(0.059±0.008)
1.6±0.2
(0.063±0.008)
1.3±0.2
(0.051±0.008)
1.6±0.2
(0.063±0.008)
1.1±0.2
(0.043±0.008)
0.9±0.2
(0.035±0.008)
0.8±0.2
(0.031±0.008)
D
0.5±0.3
(0.020±0.012)
0.5±0.3
(0.020±0.012)
0.5±0.3
(0.020±0.012)
0.5±0.3
(0.020±0.012)
0.5±0.3
(0.020±0.012)
0.5±0.3
(0.020±0.012)
0.5±0.3
(0.020±0.012)
12
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
MB SERIES
l
PATR NUMBERING SYSTEM(品名規定)
MB
1
multilayer
chip Bead
多層貼片磁珠
45 32 15
2
Dimensions
A.B.C
尺寸
材料代碼
-
B
3
Material Code
MULTILAYER CHIP BEADS
310
4
Normal
Impendence
標准阻抗
□
5
Packaging style
包裝類型
B=Bulk,
T=Tape&Reel
l
MATERIAL CHARACTERISTIC
ITEM
Material Code
Initial Permeability (μiac)
Maximum Permeability(mm)
Saturation Flux Density at 10 0e
Curie Temperature
Volume Resistivity
Temperature Coefficient
Density
-
-
-
Gauss
℃
Ω-m
10
-6
/℃
g/cm
3
UNIT
B
45
125
2000
>200
10
5
10
4.8
U
200
450
1400
>130
10
5
13
4.8
STANDARD VALUE
Z
500
900
1500
>100
10
5
5
4.8
G
110
250
1700
>130
10
5
12
4.8
B Material: Standard type .for signal line application in which the blocking reging in near
100MHz .Impedence values selected for effectiveness at 10 to 300MHz.
U Material: For applications calling for low insertion low frequencies and sharply increasing
impedence at high frequency. Designed for high impedence at high frequency for
high speed signal line applications
Z Material: high frenquency range type intended for the 100MHz regionand above. For signal
line applications in which the sigal frequency is far from the cut off frequency.
Impedence values selected for effictiveness at 40 to 400MHz
G Material: Designed as a noise countermeasure for the 200MHZ to 1GHZ range where the rise
of the Z component is in the high frequency area.
B
材料﹕標准型﹐適用于頻率在
100MHz
附近之信號線﹐選擇½用頻率在
10~300MHz
間的阻值
U
材料﹕適用于需要在½頻時插入較½﹐在高頻時阻值急升之產品。此產品適用于在高頻亦高阻
值之高速信號線之相關產品
Z
材料﹕適用大于或等于
100MHz
之高頻范圍產品。適合信號頻率距離截止頻率較遠之信號線之相
關產品﹐選擇½用品頻率介于
40
至
400MHz
之阻值
G
材料: 适用于
200MHZ
至
1GHZ
高频段噪音阻抗器之阻抗元件.
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
13
MB SERIES
l
TYPICAL IMPEDENCE CHARACTERISTICS
B MATERIAL(B
材)
Ω
Ω
MULTILAYER CHIP BEADS
U MATERIAL(U
材)
FREQUENCY(MHZ)
Z MATERIAL(Z
材)
FREQUENCY(MHZ)
G MATERIAL(G
材)
Ω
Ω
FREQUENCY(MHZ)
FREQUENCY(MHZ)
l
ELECTRICAL SPECIFICATION
IMPEDANCE(
Ω)
AT 100MHZ
125±25%
130±25%
120±25%
70±25%
60±25%
DCRESISTANCE
(Ω)MAX
0.4
0.4
0.4
0.4
0.3
RATED CURRENT
(mA)MAX.
300
300
300
300
300
PART NO.
MB453215U131
□
MB453215U121
□
MB451616U600
□
MB453215B700
□
MB453215Z131
□
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
14
MB SERIES
l
ELECTRICAL SPECIFICATION
PART NO.
MB451616B310
□
MB322513Z520
□
MB451616Z520
□
IMPEDANCE(
Ω)
AT 100MHZ
52±25%
31±25%
60±25%
52±25%
31±25%
50±25%
70±25%
2000±25%(AT30MHZ)
1200±25%(AT50MHZ)
600±25%
31±25%
600±25%
26±25%
400±25%
220±25%
150±25%
120±25%
19±25%
1000±25%
600±25%
80±25%
17±25%
11±25%
300±25%
150±25%
120±25%
70±25%
10±25%
7±25%
300±25%
220±25%
MULTILAYER CHIP BEADS
DCRESISTANCE
(Ω)MAX
0.3
0.3
0.3
0.3
0.3
0.5
0.5
2.1
1.6
1.3
0.2
1.3
0.2
0.6
0.5
0.4
0.4
0.2
1.5
1.3
0.4
0.2
0.1
0.9
0.5
0.5
0.4
0.1
0.1
1.2
1.0
RATED CURRENT
(mA)MAX.
300
300
400
400
400
200
200
100
100
200
500
200
500
300
300
400
400
500
100
100
400
500
600
200
300
300
400
600
600
150
150
MB322513U600
□
MB322513B310
□
MB321616Z700
□
MB321616U500
□
MB321616U202
□
MB321616U122
□
MB321616U601
□
MB321616U310
□
MB321616Z601
□
MB321616Z260
□
MB321616B401
□
MB321616B221
□
MB321616B151
□
MB321616B121
□
MB201209U102
□
MB201209U601
□
MB201209U800
□
MB201209U170
□
MB201209U110
□
MB201209Z301
□
MB201209Z151
□
MB201209Z121
□
MB201209Z700
□
MB201209B070
□
MB201209Z100
□
MB321616B190
□
MB201209U301
□
MB201209U221
□
□:
MEANS PACKAGING STYLE
15
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
MB SERIES
l

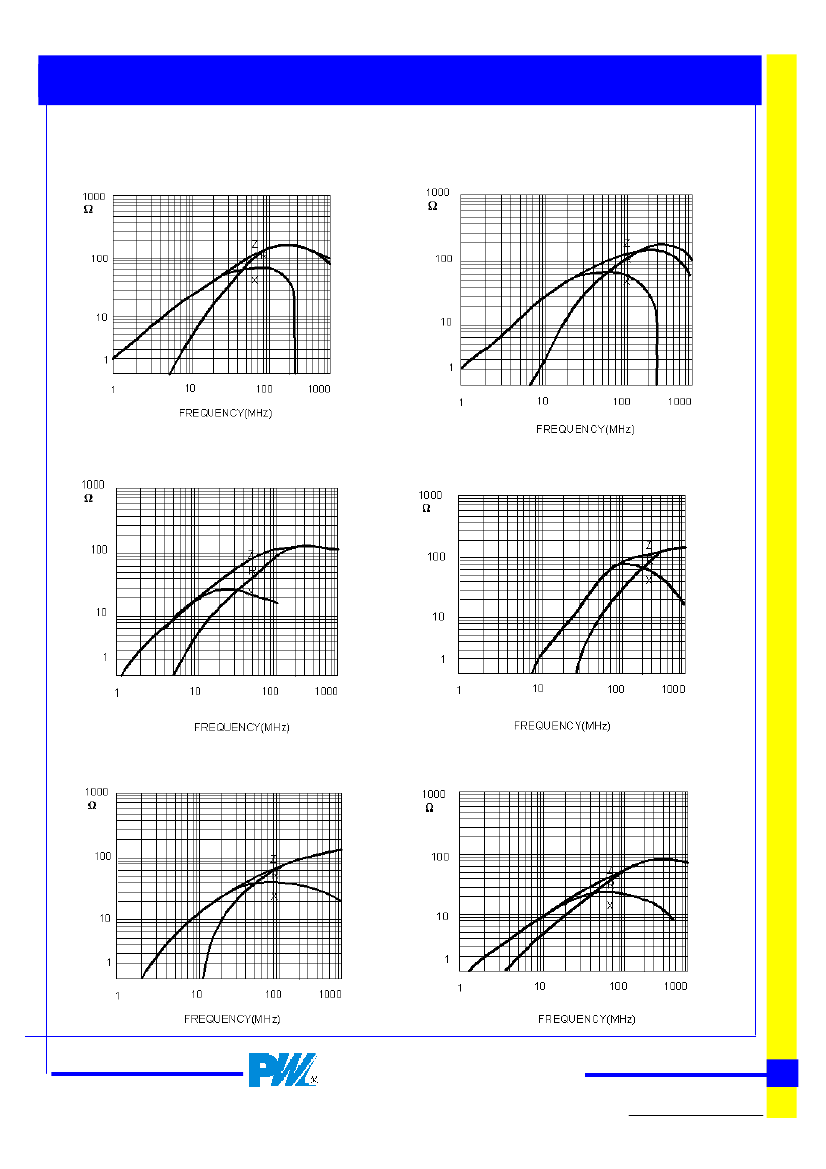

TYPICAL ELECTRICAL CHARACTERISTICS
MB453215U131
MULTILAYER CHIP BEADS
典型電氣特性
MB453215Z131
MB453215U121
MB453215B700
MB451616U600
MB451616Z520
Productwell Precision Elect.Co.,Ltd
Kai Ping Productwell Precision Elect.Co.,Ltd Tel:0750-2323113 Fax:0750-2312333 http:// www.productwell.com
16
