89008-910: DescriptionBoard Connector, 120 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size2MB，14 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

89008-910 Overview

Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle

89008-910 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	METRAL
body width	0.701 inch
subject depth	0.669 inch
body length	1.888 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	89008
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZING PEG
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.169 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	120
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

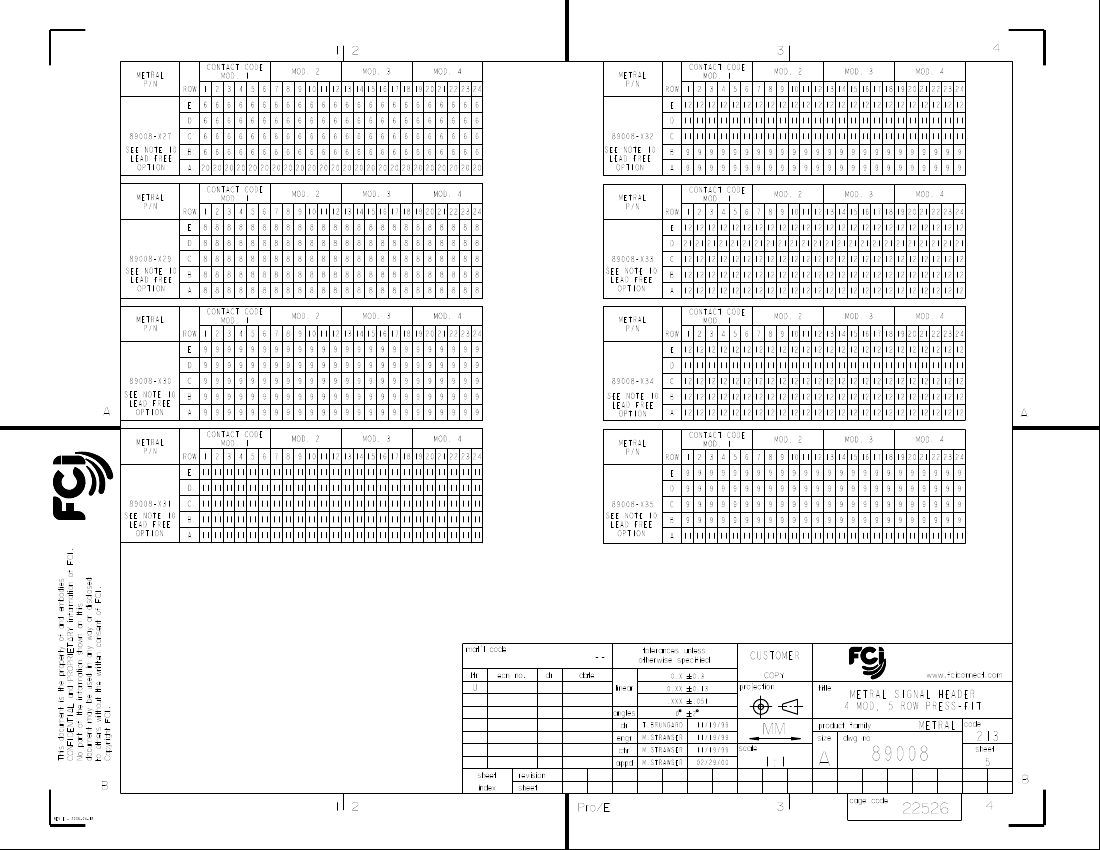

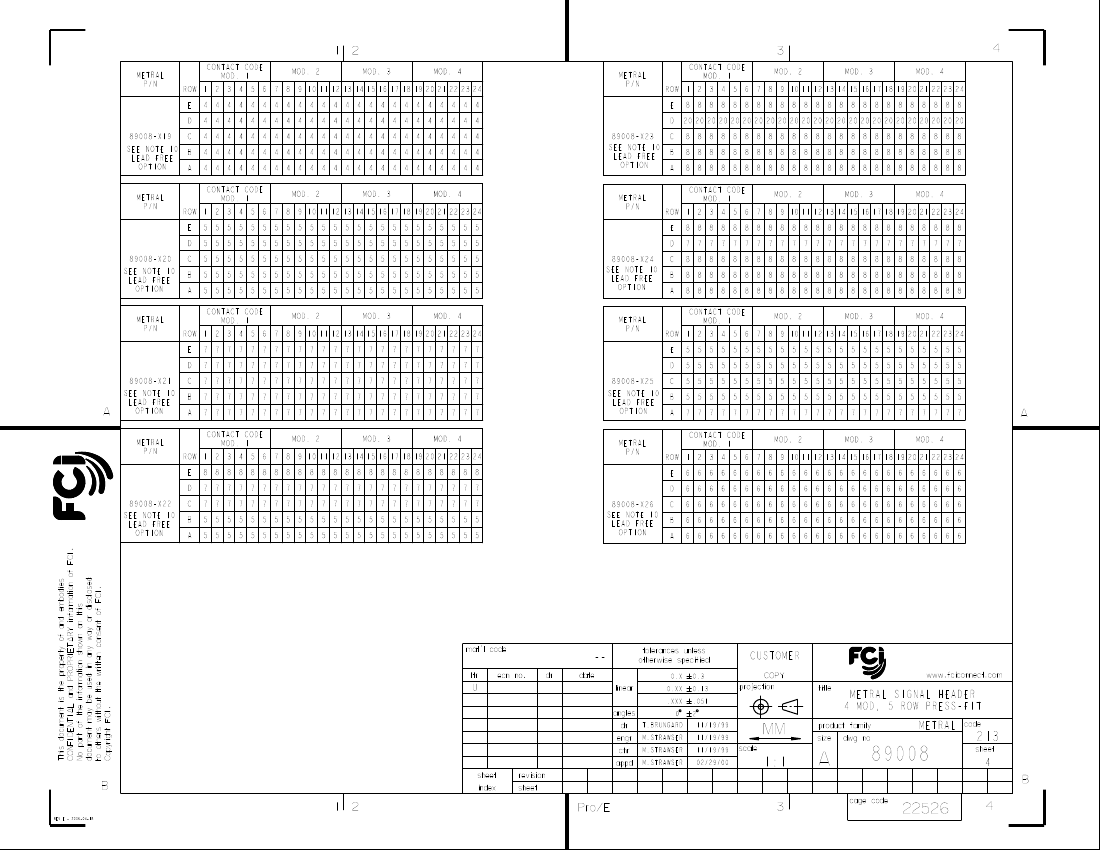

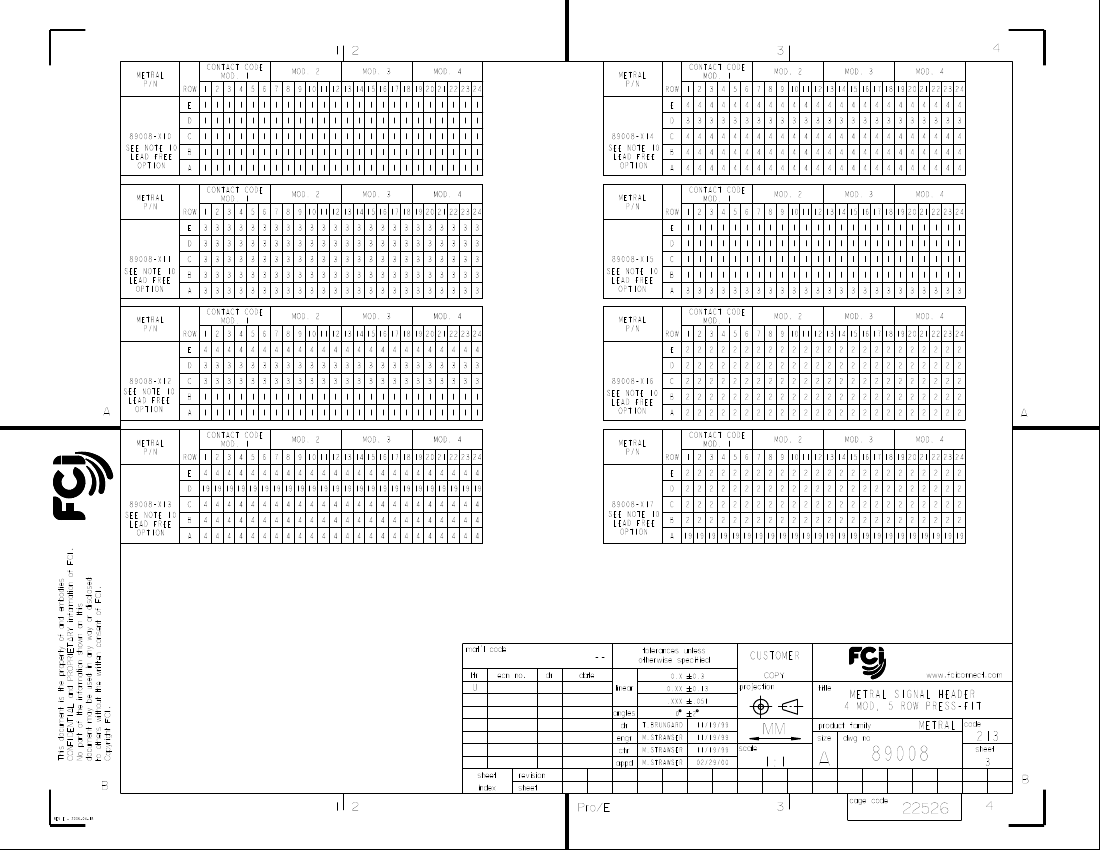

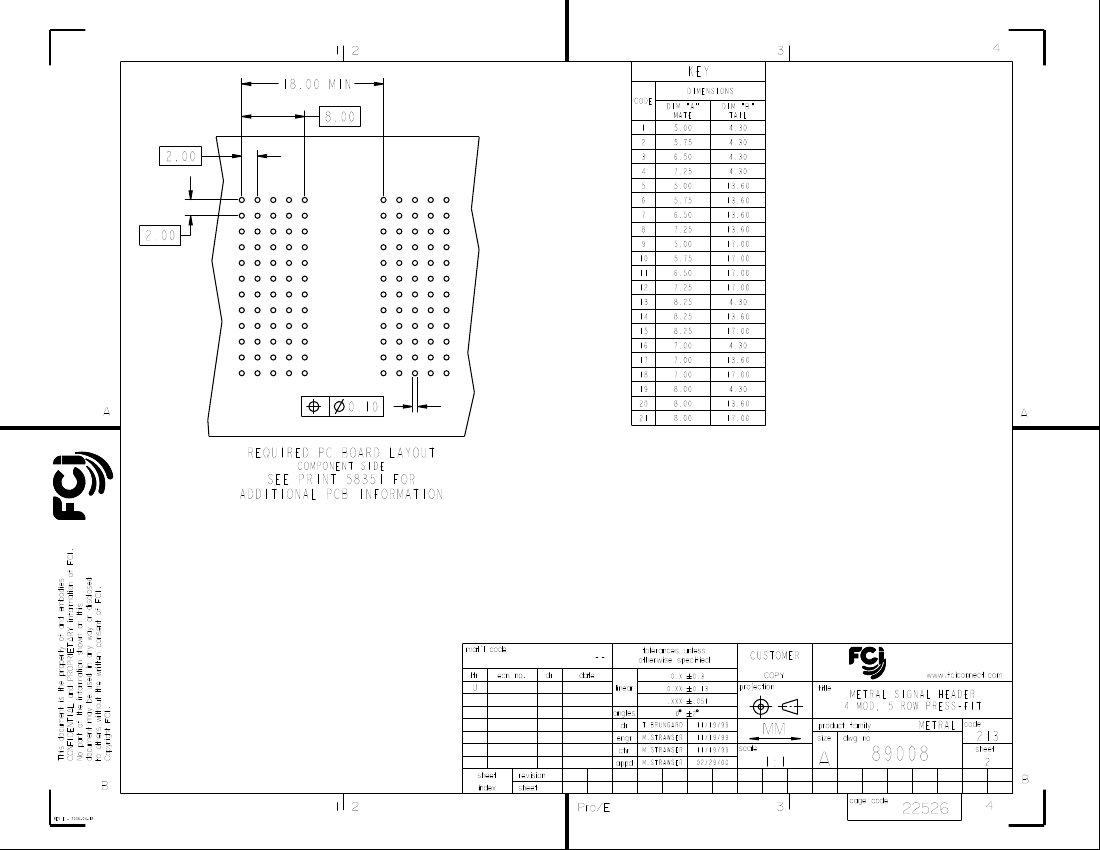

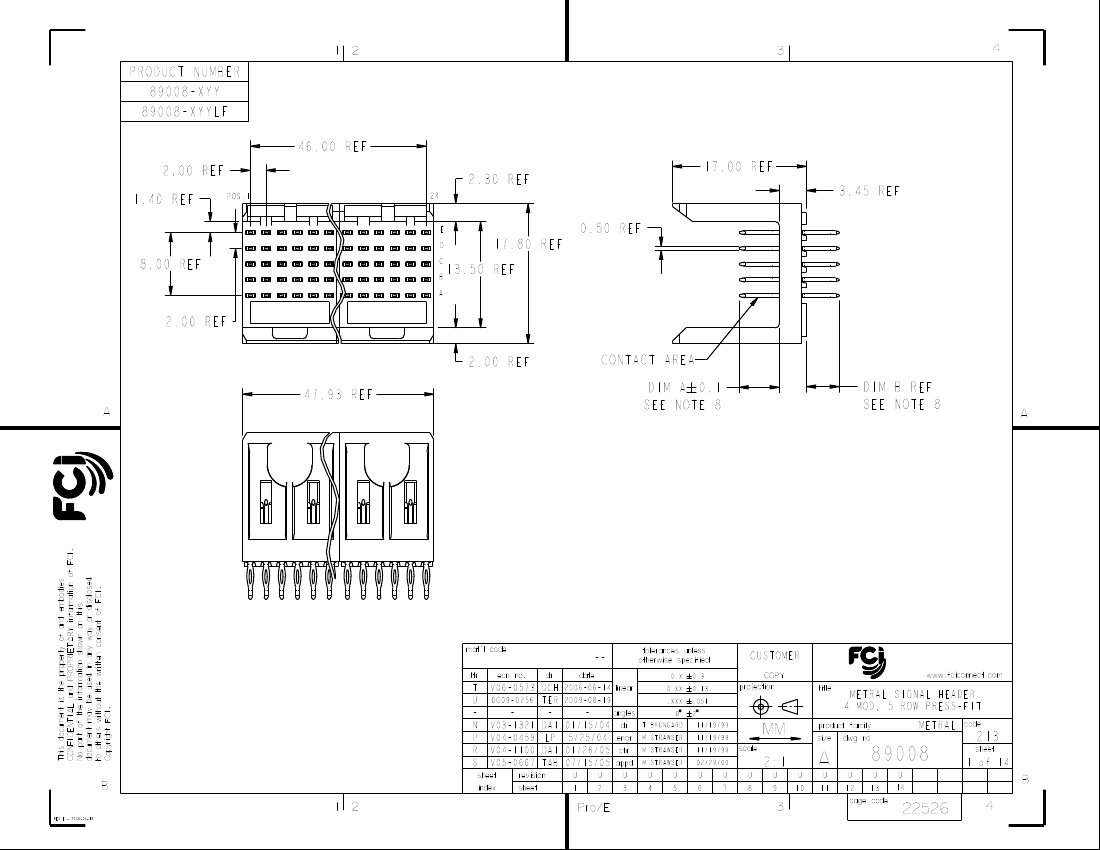

PRODUCT NUMBER

89008-XYY

89008-XYYLF

46.00 REF

2.00 REF

1.40 REF

POS.1

2.30 REF

17.00 REF

3.45 REF

0.50 REF

17.80 REF

13.50 REF

8.00 REF

2.00 REF

47.93 REF

CONTACT AREA

DIM A 0.1

SEE NOTE 8

DIM B REF

SEE NOTE 8

CONFIDENTIAL and PROPRIETARY information of FCI.

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

ecn no.

date

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

linear

0.3

0.13

.051

V06-0573 DCH

DG09-0256

TER

V03-1321 DAI

V04-0459 LP

V04-1100 DAI

V05-0667 TAB

sheet

revision

sheet

index

2006-06-14

2009-08-19

0.XX

.XXX

01/15/04

5/25/04

01/26/05

07/15/05

Pro/E

angles

engr

chr

appd

METRAL SIGNAL HEADER

4 MOD, 5 ROW PRESS-FIT

METRAL

code

dwg no

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

89008

cage code

213

sheet

1 of 14

REV E - 2006-04-18

22526

PDM: Rev:U

STATUS:

Released

Printed: Dec 01, 2009
