SS6735G
500mA
Low Dropout Linear Regulator
FEATURES
Low
dropout voltage
of 650mV at
an output
current of 500mA
(3.0V
output version).
Guaranteed 500mA output current.
Low
ground current of
65µA.
Output
voltage accuracy of 2% at
1.8V/ 2.0V
/2.5V
/2.7V/ 3.0V/ 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/5.2V
Only needs 4.7µF
output capacitor
for
stability.
Current and
thermal limiting.
DESCRIPTION
The
SS6735G
is a 3-pin low-dropout linear
regulator
with
superior characteristics,
which
include zero base current loss, very
low drop-
out voltage, and output
voltage accuracy of 2%.
Typical ground current remains approximately
65µA, for loads ranging from
zero to maximum.
Dropout voltage at
an output current of 100mA
is
exceptionally low. Built-in
output current
limiting and thermal limiting
provide maximum
protection
against fault conditions.
Pb-free, RoHS compliant.
APPLICATIONS
CD-ROM Drivers.
LAN Cards.
Microprocessors.
DRAM
Modules.
Wireless Communication Systems.
Battery Powered Systems.
The SS6735G is available in RoHS-compliant
SOT-23-3, SOT-223, SOT-89, and TO-252
packages.
TYPICAL APPLICATION CIRCUIT
VIN
V
IN
VOUT
SS6735G
V
OUT
+
1µF
C
IN
GND
+
4.7µF
C
OUT
Low Dropout Linear Regulator
(C
IN
and C
OUT
should be
electrolytic capacitors)
1/15/2005 Rev.2.10
www.SiliconStandard.com
1 of 9

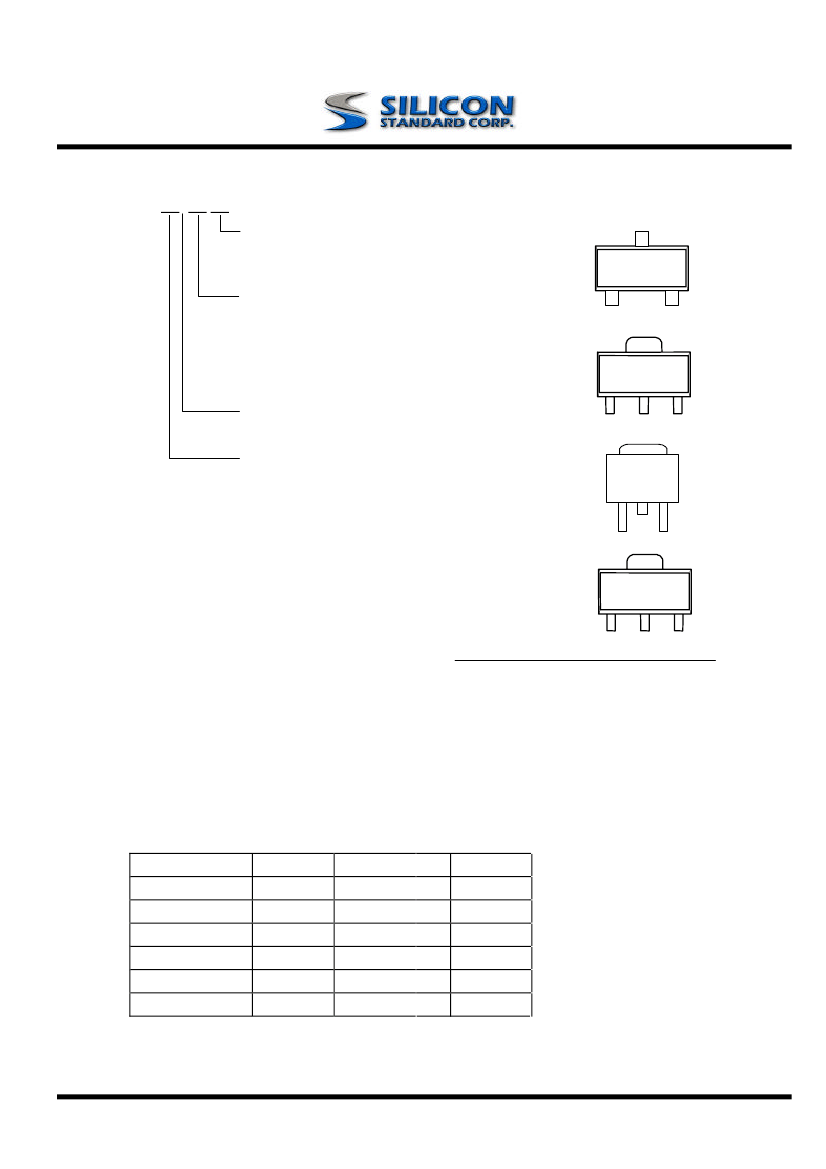

SS6735G
SOT-89 MARKING
Part No.
SS6735-18GX
SS6735-20GX
SS6735-25GX
SS6735-27GX
SS6735-30GX
SS6735-33GX
SS6735-35GX
SS6735-37GX
SS6735-38GX
SS6735-50GX
SS6735-52GX
GX
CF18P
CF20P
CF25P
CF27P
CF30P
CF33P
CF35P
CF37P
CF38P
CF50P
CF52P
SOT-223 MARKING
Part No.
SS6735-18GY
SS6735-20GY
SS6735-25GY
SS6735-27GY
SS6735-30GY
SS6735-33GY
SS6735-35GY
SS6735-37GY
SS6735-38GY
SS6735-50GY
SS6735-52GY
GY
CC18P
CC20P
CC25P
CC27P
CC30P
CC33P
CC35P
CC37P
CC38P
CC50P
CC52P
ABSOLUTE MAXIMUM RATINGS
Input Supply Voltage
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
Lead Temperature (Soldering) 10 sec.
-0.3
~12V
-40°C~ 85°C
-65°C~150°C
125°C
260°C
Thermal Resistance Junction to Ambient
(Assumes no ambient airflow, no heatsink)
SOT-89 Package
TO-252 Package
SOT-23 Package
SOT-223 Package
160°C/W
100°C/W
180°C/W
155°C/W
Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.
TEST CIRCUIT
Refer to the TYPICAL APPLICATION CIRCUIT
1/15/2005 Rev.2.10
www.SiliconStandard.com
3 of 9
SS6735G
ELECTRICAL CHARACTERISTICS
PARAMETER
(T =25°C, C
IN
=1µF, C
OUT
=4.7µF, unless otherwise
A
specified.) (Note1 )
MIN.
5.100
4.900
3.725
3.625
3.430
3.235
2.940
2.646
2.450
1.960
1.764
TYP.
5.200
5.000
3.800
3.700
3.500
3.300
3.000
2.700
2.500
2.000
1.800
50
MAX.
5.300
5.100
3.875
3.775
3.570
3.365
3.060
2.754
2.550
2.040
1.836
UNIT
TEST CONDITIONS
No Load
SS6735-52
SS6735-50
SS6735-38
SS6735-37
SS6735-35
SS6735-33
SS6735-30
SS6735-27
SS6735-25
SS6735-20
SS6735-18
(Note 2)
I
L
=
1mA,
1.4V≤V
OUT
≤3.2V
3.3V≤V
OUT
≤5.2V
I
L
=0.1~500mA
1.4V≤V
OUT
≤3.9V
4.0V≤V
OUT
≤5.2V
V
IN
=7V, V
OUT
=0V
4.0V≤V
OUT
≤5.2V
3.0V≤V
OUT
≤3.9V
2.5V≤V
OUT
≤2.9V
2.0V≤V
OUT
≤2.4V
1.4V≤V
OUT
≤1.9V
V
IN
=5~12V
V
IN
=7~12V
V
IN
=5.5~12V
V
IN
=5.5~12V
V
IN
=4.1~12V
V
IN
=4.0~12V
V
IN
=4.0~12V
V
IN
=4.0~12V
V
IN
=4.0~12V
V
IN
=4.0~12V
V
IN
=4.0~12V
V
IN
=4.0~12V
V
IN
=4.0~12V
Output Voltage
V
Output Voltage
Temperature
Coefficient
Line Regulation
PPM/°C
V
IN
=4V~12V
V
IN
=5.5V~12V
V
IN
=5V
V
IN
=7V
500
3
3
10
20
10
10
30
50
mV
Load Regulation
(Note 3)
Current Limit
(Note 4)
mV
mA
510
650
780
1100
1400
65
65
90
90
Dropout Voltage
(Note 5)
I
L
=500mA
mV
Ground Current
I
O
=0.1mA~I
MAX
1.4V≤V
OUT
≤3.9V
4.0V≤V
OUT
≤5.2V
µA
Note 1:
Note 2:
Note 3:
Note 4:
Note 5:
Specifications are guaranteed by Statistical Quality Control (SQC),
not by 100%
production
testing, over the
operating temperature range from -40°C to 85°C.
Guaranteed by design.
Regulation is measured at constant junction temperature, using pulse testing with a low ON time.
Current limit is measured by pulsing a short time.
Dropout voltage is defined as the input to output differential at which the output voltage drops
100mV below the value of the output voltage measured with a 1V differential.
1/15/2005 Rev.2.10
www.SiliconStandard.com

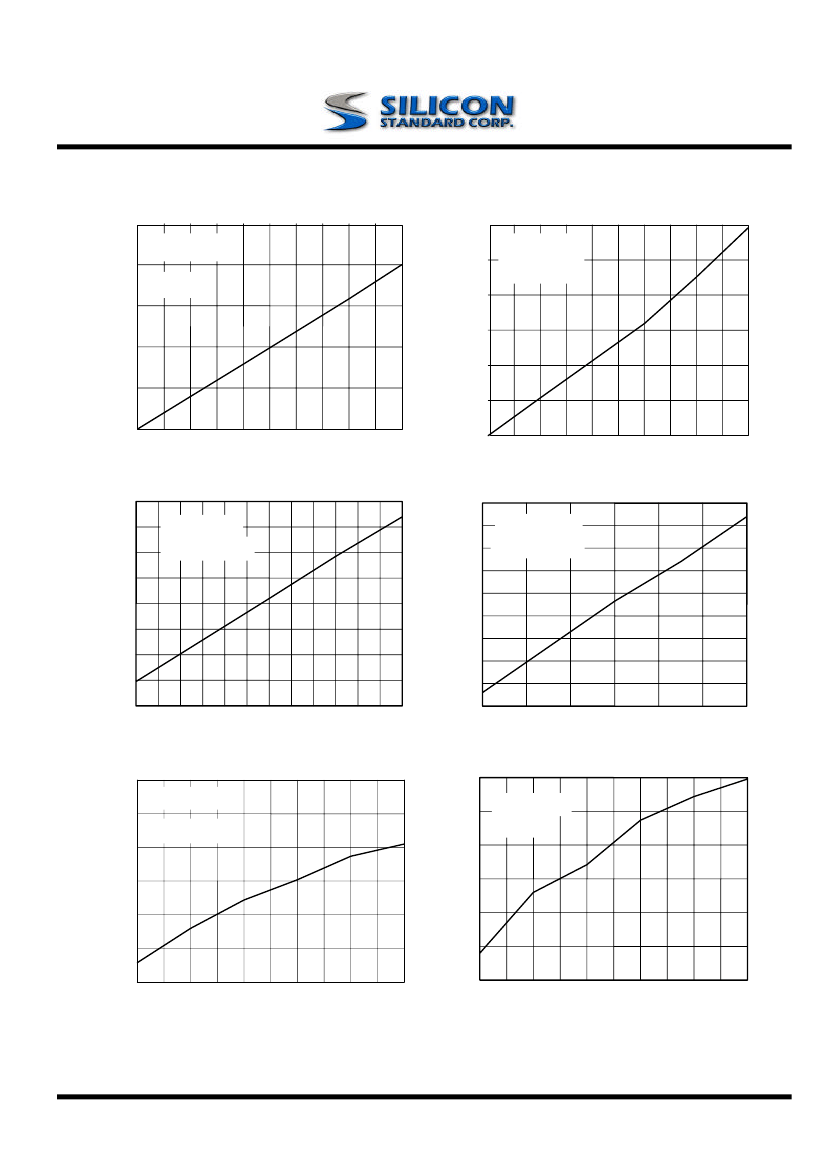

4 of 9
