3-1761606-2

Description
36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector

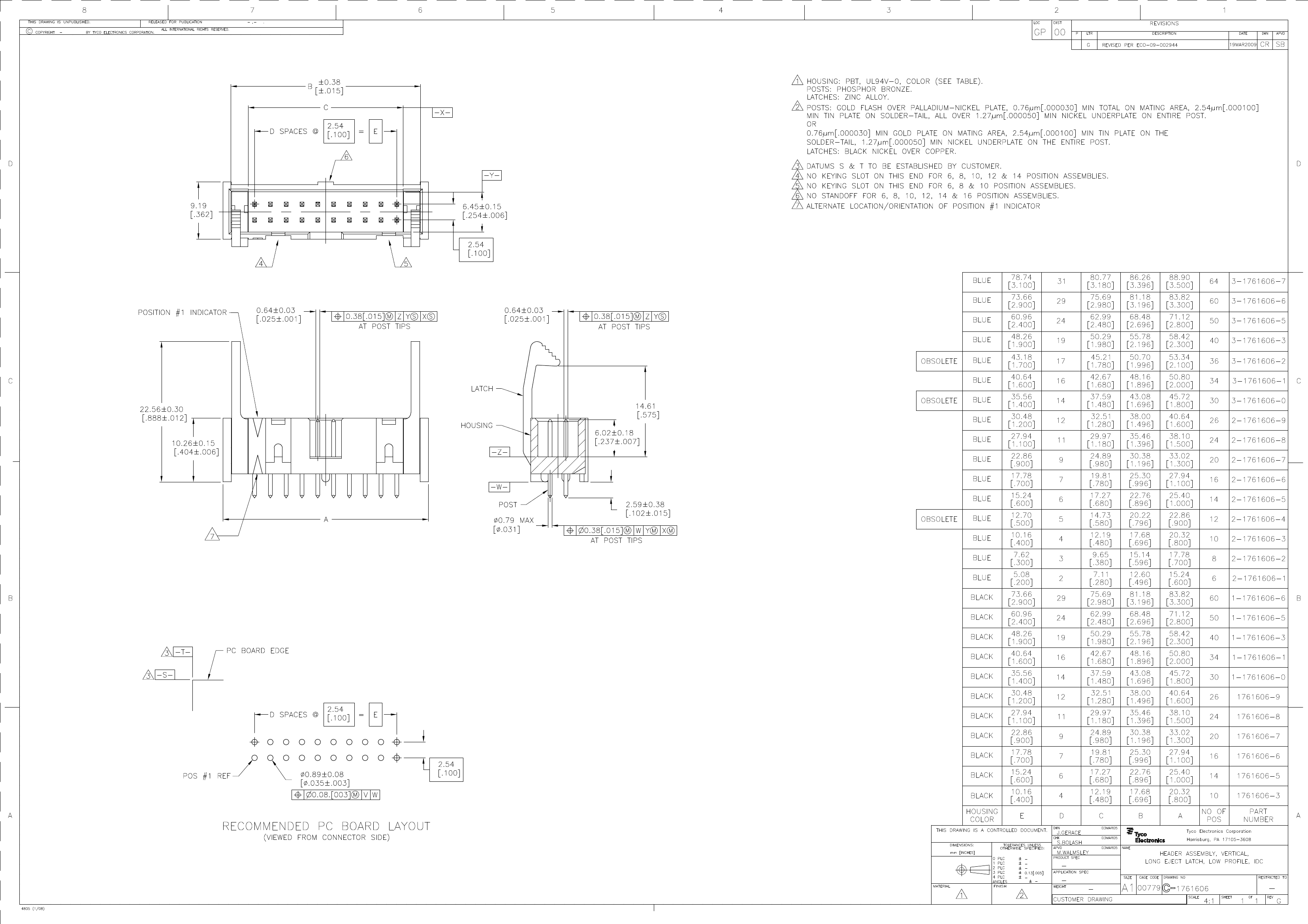

File Size200KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

3-1761606-2 Overview

36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

3-1761606-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPOLARIZED
body width0.362 inch
subject depth0.404 inch
body length2.1 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLUE
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial number1761606
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts36
UL Flammability Code94V-0

3-1761606-2 Related Products

3-1761606-2 3-1761606-0 2-1761606-4
Description 36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 12 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified? conform to conform to conform to
Maker TE Connectivity TE Connectivity TE Connectivity
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Other features POLARIZED POLARIZED POLARIZED
body width 0.362 inch 0.362 inch 0.362 inch
subject depth 0.404 inch 0.404 inch 0.404 inch
body length 2.1 inch 1.8 inch 0.9 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V
Filter function NO NO NO
IEC compliance NO NO NO
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLUE BLUE BLUE
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
MIL compliance NO NO NO
Manufacturer's serial number 1761606 1761606 1761606
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch
Mixed contacts NO NO NO
Installation option 1 LATCH & EJECT LATCH & EJECT LATCH & EJECT
Installation option 2 LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 2 2 2
Number of rows loaded 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C
Minimum operating temperature -65 °C -65 °C -65 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm
Plating thickness FLASH inch FLASH inch FLASH inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 1 A 1 A 1 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.102 inch 0.102 inch 0.102 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 36 30 12
UL Flammability Code 94V-0 94V-0 94V-0
