MC68HC05T2FN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC68HC05T2FN

MC68HC05T2FN: DescriptionMicrocontroller, 8-Bit, MROM, HCMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，40 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

MC68HC05T2FN Overview

Microcontroller, 8-Bit, MROM, HCMOS, PQCC44, PLASTIC, LCC-44

MC68HC05T2FN Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCJ,
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	8
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	S-PQCC-J44
length	16.5862 mm
Number of I/O lines	30
Number of terminals	44
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
ROM programmability	MROM
Maximum seat height	4.57 mm
surface mount	YES
technology	HCMOS
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

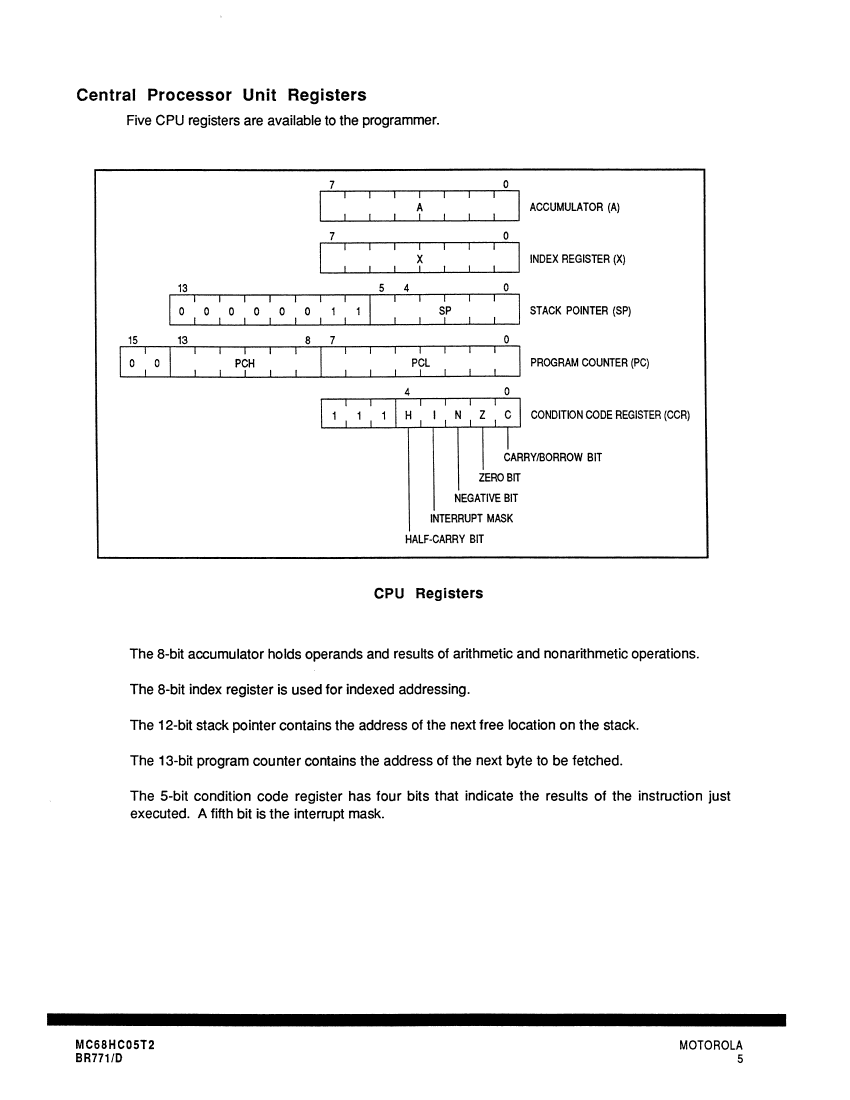

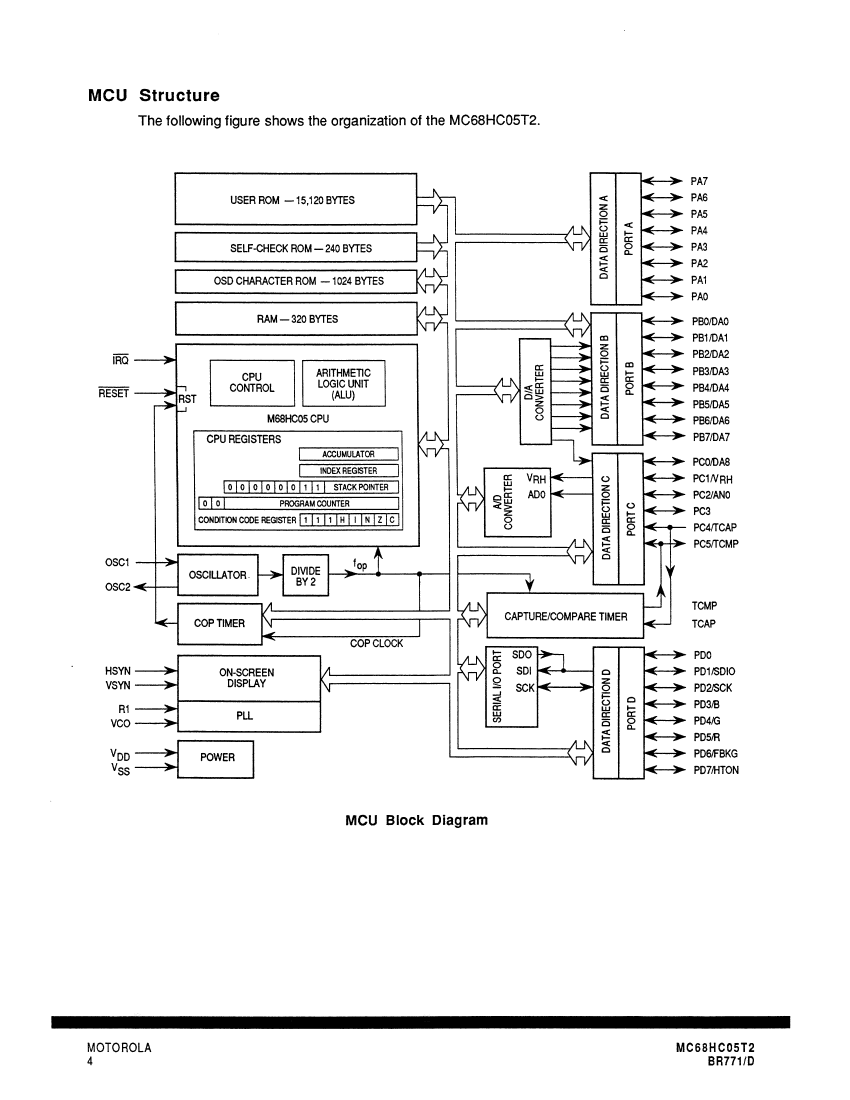

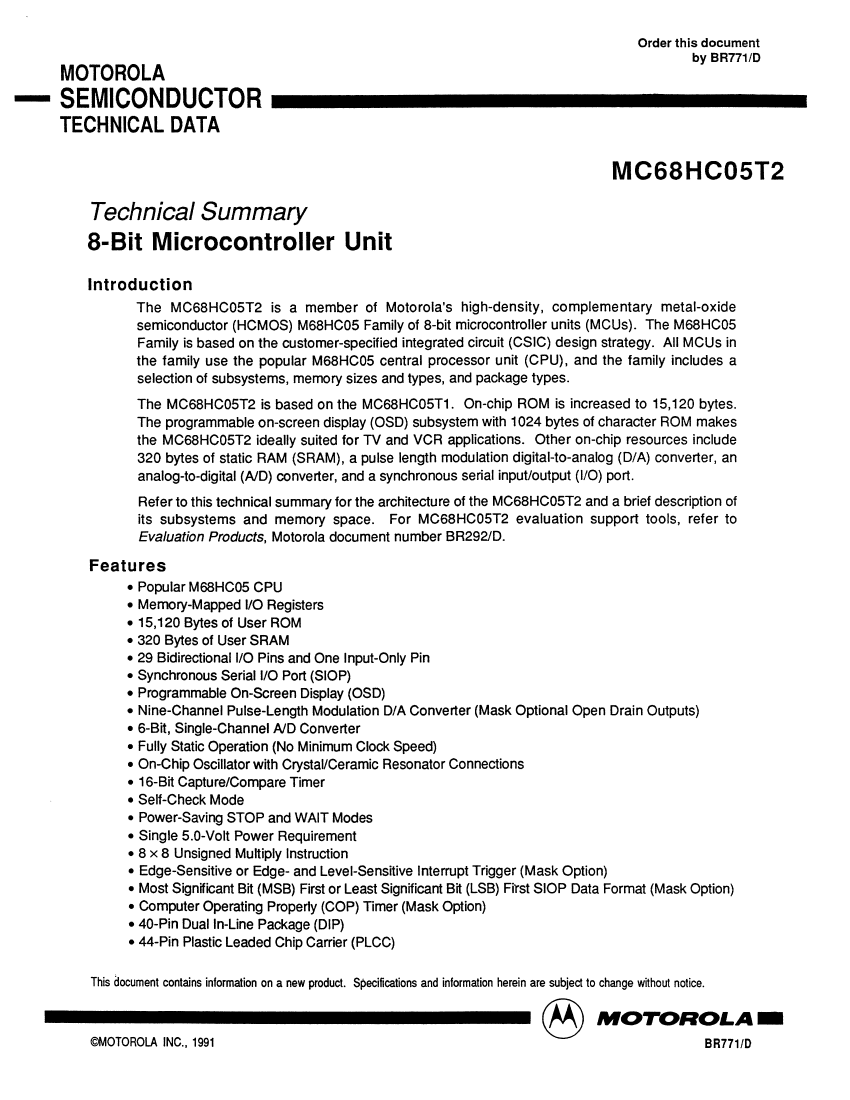

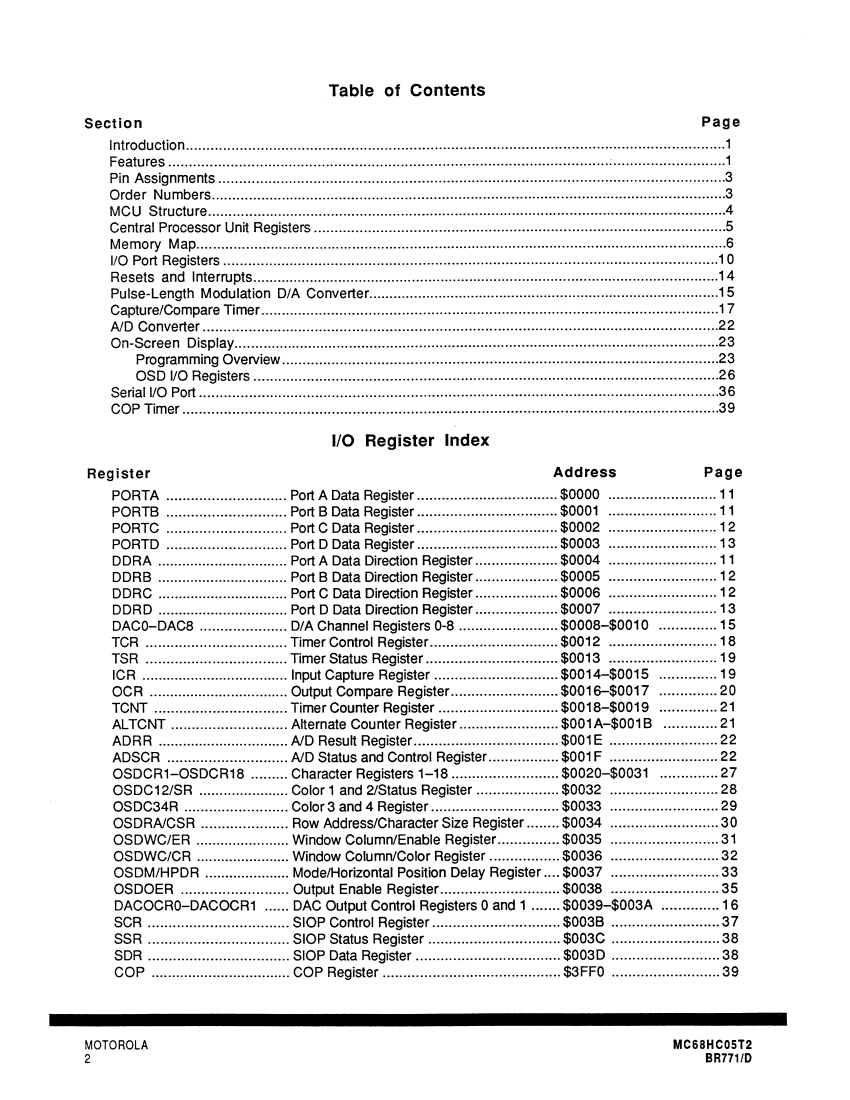

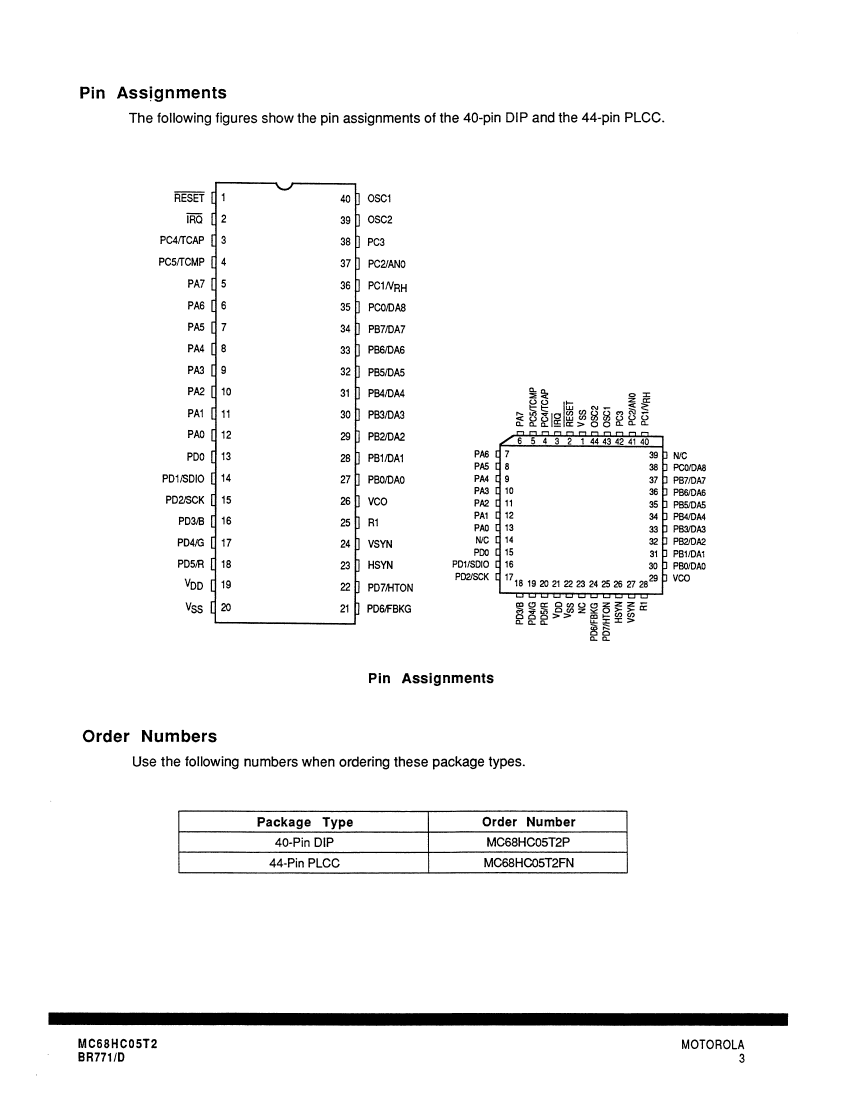

Preview

Download Datasheet

View All

MC68HC05T2FN Related Products

	MC68HC05T2FN	MC68HC05T2P
Description	Microcontroller, 8-Bit, MROM, HCMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, HCMOS, PDIP40, DIP-40
Maker	Rochester Electronics	Rochester Electronics
package instruction	QCCJ,	DIP,
Reach Compliance Code	unknown	unknown
Has ADC	YES	YES
bit size	8	8
DAC channel	YES	YES
DMA channel	NO	NO
JESD-30 code	S-PQCC-J44	R-PDIP-T40
length	16.5862 mm	52.07 mm
Number of I/O lines	30	30
Number of terminals	44	40
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
ROM programmability	MROM	MROM
Maximum seat height	4.57 mm	5.08 mm
surface mount	YES	NO
technology	HCMOS	HCMOS
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
width	16.5862 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
