DQS Power Adjustable Resistors
Power
Ribbon-Wire
Adjustable Resistors
Low-Cost and High-Precision
Power Adjustment Resistors for High Energy Dissipation
Preview

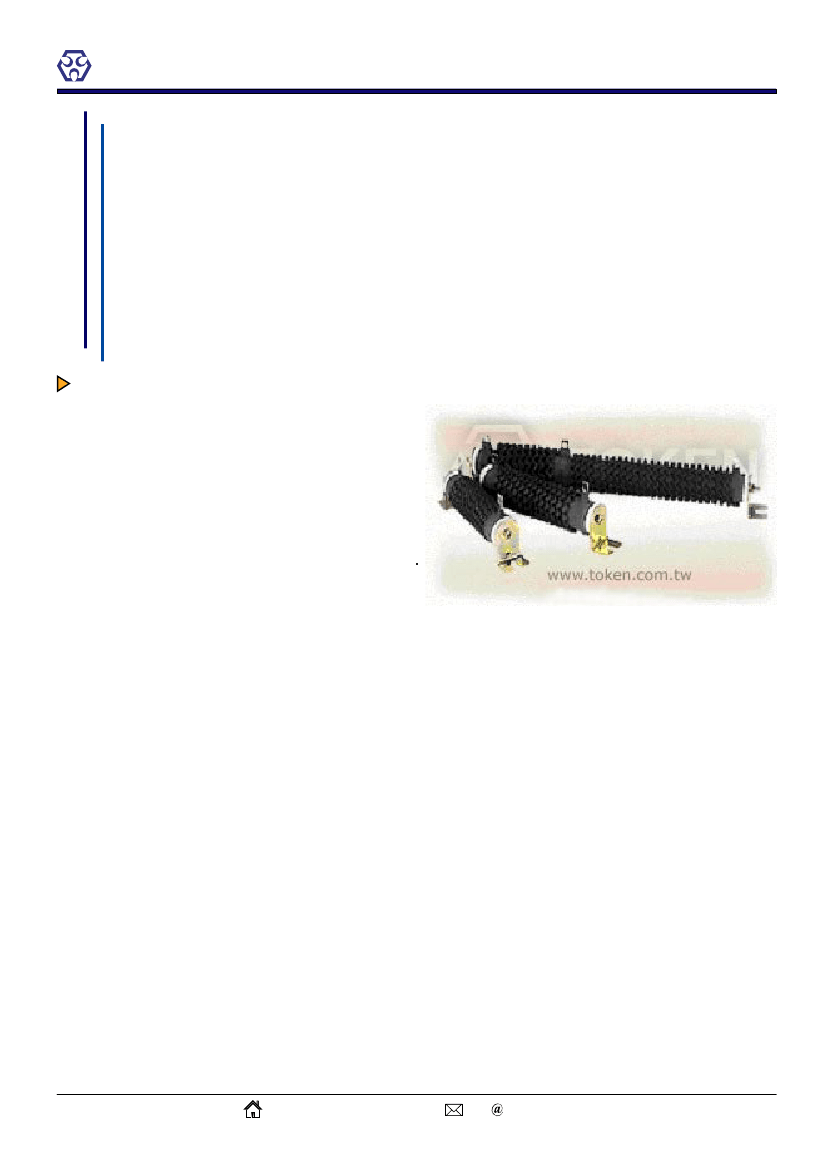

Adjustable Ribbon-Wound Power Resistors have been
a main product line at Token Electronics for years.
Ribwound adjustable resistors are particularly useful
where high energy is to be dissipated in the lower
ohmic ranges and high power capacity. Precision
winding design, provide uniform windings to be
applied extremely close to each other resulting in
significantly higher resistance values.
In significant savings in space and cost,
Adjustable DQS Series is ideal replacements
for many standard round-wire resistors.
Features :
●
Resistance Tolerance: K(±10%), J(±5%), H(±3%).
● Power-rib wirewound resistor with adjustable lug supplied.
● Suitable for high energy to be dissipated in the lower ohmic ranges.
● Design as heavy-duty resistors to withstand frequent start-stop cycles.
● Hollow core to permit secure fastening with spring-type clips or thru bolts with washers.
● Durability Flame resistant coating and all-welded construction.
● Terminals suitable for bolt connection or soldering.
Power Rating :
●
Based on 25°C free air rating. The stated wattage rating applies only
when the entire resistance is in the circuit.
● Setting the lug at an intermediate point reduces the wattage rating by approximately the same proportion.
● Example: If the lug is set at half resistance, the wattage is reduced by approximately one-half.
● Wattage is proportional to this adjusted resistance value.
● Adjustability is 10% to 90% of full resistance value.
Options :
● Adjustable, fixed, or tapped styles are available.
● Special terminals available for non-standard applications.
● Single and double quick connect terminals can be specified.
● Standard lug terminals available with or without terminal hardware.
● Non-inductive Ayrton Perry windings can be specified.
● Special temperature coefficients, tolerances
To Calculate Max. Amperes :
● Voltage = (Watts x Ohms)
1/2
The Power Adjustable DQS Resistor is RoHS compliant and lead free. For unusual technical
requirements and custom special applications, please contact us.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 04
TOKEN

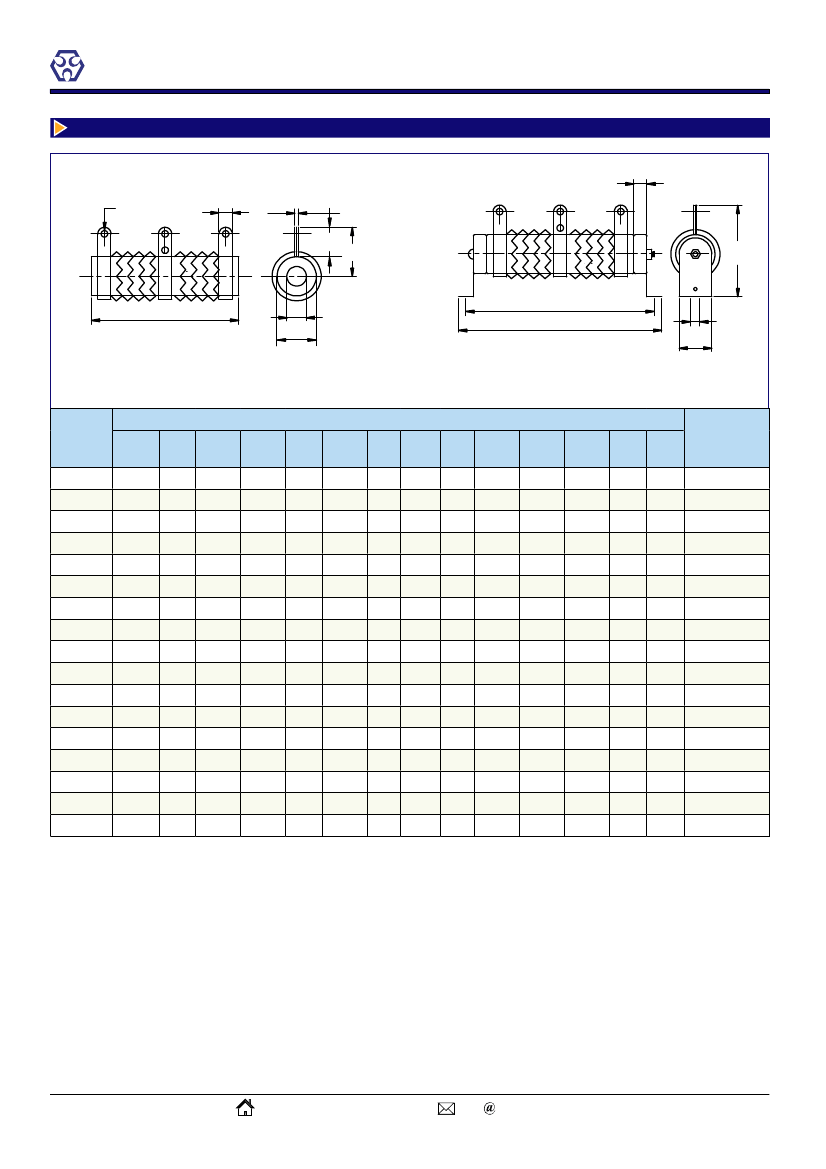

(DQS) 75W ~ 2000W Dimensions
DQS Power Adjustable Resistors
M
G
E
L
H
D
F
J
I
O
K
A
C
B
Ribbon-Wire Adjustable Resistors (DQS)
N - No mount Dimensions
Watage
Rating
75W
90W
120W
150W
180W
225W
240W
300W
375W
450W
600W
750W
900W
1000W
1200W
1500W
2000W
Dimensions (mm)
A
110
90
110
140
160
195
185
210
210
260
330
330
400
460
460
540
650
B
25
28
28
28
28
28
35
35
40
40
40
50
50
50
60
60
65
C
16
18
18
18
18
18
24
24
25
25
25
35
35
35
40
40
42
D
30
32
32
32
32
32
36
36
38
38
38
50
50
50
55
55
62
E
8
8
8
8
8
8
10
10
12
12
12
12
12
12
15
15
15
F
150
130
150
180
200
235
225
250
250
300
370
380
450
510
515
595
702
G
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
H
18
19
19
19
19
19
19
19
20
20
20
25
25
25
30
30
30
I
6
6
6
6
6
6
8
8
8
8
8
9
9
9
10
10
10
Ribbon-Wire Adjustable Resistors (DQS)
G - Horizontal mount Dimensions
Max.
Resistance
Range
0.1~8Ω
0.1~9Ω
0.1~12Ω
0.1~15Ω
0.1~18Ω
0.1~23Ω
0.1~24Ω
0.3~30Ω
0.3~38Ω
0.3~45Ω
0.3~60Ω
0.3~75Ω
0.3~90Ω
0.5~100Ω
0.5~120Ω
0.5~150Ω
0.5~200Ω
J
166
146
166
196
216
251
245
274
274
320
395
400
470
530
535
615
722
K
58
60
60
60
60
60
76
76
78
78
78
100
100
100
110
110
115
L
1.2
1.2
1.2
1.2
1.2
1.2
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
M
6
6
6
6
6
6
6
6
6
6
6
8
8
8
10
10
10
O
27
27
27
27
27
27
34
34
34
34
34
40
40
40
50
50
50
02 of 04
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
Characteristics
Test Item
Resistance tolerance
JIS-C-5202 5-1
DQS Power Adjustable Resistors
Test Methods
Characteristics
Resistance Nominal
Tolerance
1≤R
1>R
±5%(J) ±10%(K)
±400PPM/°C MAX
ΔR/R≤ ±(0.5%+0.1Ω)
Surface temperature up 350°C MAX
Free of appearance or structural irregularity
ΔR/R≤ ±(2%+0.1Ω)
100MΩ min
Temperature coefficient
JIS-C-5202 5-2
Load rating
Short-term overload
JIS-C-5202 5-4
JIS-C-5202 5-5
500% rated wattage 5 seconds
Insulation resistance
JIS-C-5202 5-6 500VDC
JIS-C-5202 5-7
Dielectric withstanding
Free of appearance or structural irregularity
1000VDC 1 minute Between
voltage
ΔR/R≤ ±(0.1%+0.05Ω)
terminal and anchor stand
Terminal strength
JIS-C-5202 6-1 8kg 30 seconds
Free of appearance or structural irregularity
JIS-C-5202 6-3;
Free of appearance or structural irregularity
Vibration
1.5m/m 10 ~ 50 ~ 10 Hz/min X-Y-Z
Surface coating crack ΔR/R≤ ±(1%+0.05Ω)
2 hours each
JIS-C-5202 7-3
Free of structural irregularity
Thermal shock
Room temp 30 minutes ON-55°C
ΔR/R≤ ±(1%+0.05Ω)
15 minutes OFF
JIS-C-5202 7-5
Free of appearance or structural irregularity
Humidity
40°C 90%RH 240 hours
Surface coating crack ΔR/R≤ ±(3%+0.1Ω)
JIS-C-5202 7-10
Free of appearance or structural irregularity
Load life
90 minutes ON - 30 minutes OFF
Surface coating crack ΔR/R≤ ±(5%+0.1Ω)
500 hours
JIS-C-5202 7-13-3-2
US UL-94 flame retardation test V-0 grade
Flame retardation
100% - 600% rated wattage load
noncombustible
1. Resistance and resistance tolerance were tested in-house with micro resistance meter.
REMARKS:
2. Coating refers to UL-certified data provided by supplier
Application Notes
Determination of End Resistance Value of FVR, DQS, DSRA, DSRB, BSR, BSQ:
● Resistance Range means you can choose one maximum resistance value (End resistance value)
at one of FVR, DQS, DSRA, DSRB, BSR, BSQ VR (Variable Resistor) type.
● After End Resistance Value confirmed, the minimum resistance (start resistance value) will be
determined by depending on resistance of wire and wirewound type.
Power Rating of Variable Resistor:
Product type
-
Rated Wattage
-
The part Nunber formation of FVR, DQS, DSRA, DSRB, BSR, BSQ:
Resistance Value (Ω)
- Resistance Tolerance
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 04
TOKEN
DQS Power Adjustable Resistors
Product type means one of FVR, DQS, DSRA, DSRB, BSR, BSQ.
Rated Wattage means power rating at End Resistance Value.
Resistance Value (Ω) means maximum resistance value (End Resistance Value).
Resistance Tolerance means precision range of End Resistance Value.
1. Power Rating of VR (Variable Resistor) is determined by the maximum resistance value
(End Resistance Value).
2. Resistance and Power Rating should be decreased while you are adjusting the screw.
Notes:
● Adjustability is 10% to 90% of full resistance value.
● Wattage is proportional to this adjusted resistance value.
● Based on 25°C free air rating. The stated wattage rating applies only when the entire resistance is
in the circuit.
● Setting the lug at an intermediate point reduces the wattage rating by approximately the same
proportion.
● Example: If the lug is set at half resistance, the wattage is reduced by approximately one-half.
Power Rating:
If you need current constant type or special specifications, please feel free to cntact us.
How to Order
DQS
1500W
10R
K
G
Part Number: DQS
Rated Power (W): 75W~2000W
Resistance Value (Ω):
Code
0R1
1R
10R
100R
Code
H
J
K
Resistance Value
Assembly Method
Code
N
C
G
Z
Assembly Method
0.1Ω
1Ω
10Ω
100Ω
Resistance Tolerance
No mount.
Clip mount.
Horizontal mount.
Vertical mount.
Resistance Tolerance (%)
±3%
±5%
±10%
Back to 1st Page - Power Adjustable Resistors (DQS)
