GTXO-C14V/FP14.40MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GTXO-C14V/FP14.40MHZ

GTXO-C14V/FP14.40MHZ: DescriptionCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size120KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GTXO-C14V/FP14.40MHZ Overview

CMOS Output Clock Oscillator

GTXO-C14V/FP14.40MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Manufacturer's serial number	GTXO-C14
Oscillator type	CMOS

Preview

Download Datasheet

View All

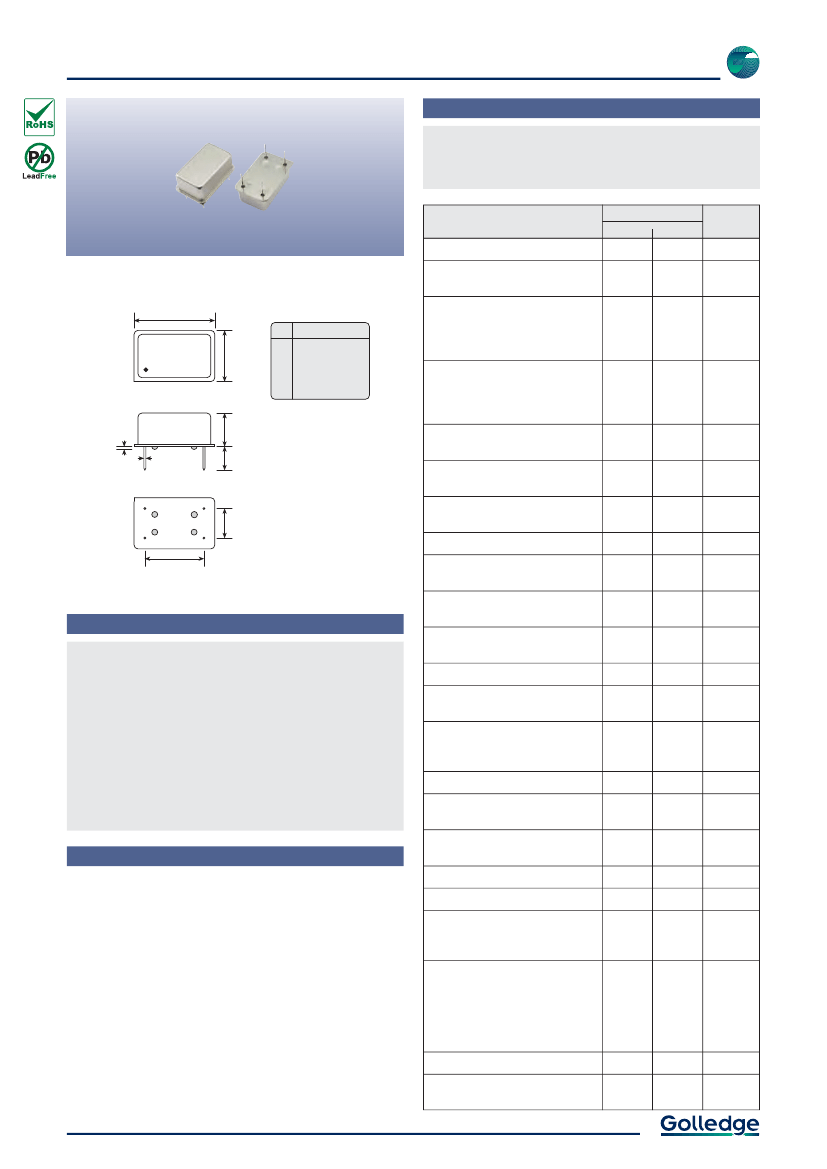

3.3 & 5V Stratum 3 CMOS TCXO

Specifications

2011/65/EU

GTXO-C14

GTXO-C14T: TCXO, no frequency adjustment

GTXO-C14V: TCXO with VC frequency adjustment

Variant

1.0 ~ 100MHz











Option

Codes

Parameters

Frequency range:

Frequency calibration:

±1.0ppm (@ +25°C)

20.80

(max)

13.20

(max)

CONNECTION

Enable / disable or

Freq adjustment

Frequency stability:

±4.6ppm

(inclusive of calibration,

temperature, voltage, load, 20years

ageing, shock & vibration)

Temperature stability:

±0.28ppm (up to 50.0MHz)

±0.5ppm (up to 100MHz)

±1.0ppm (up to 100MHz)

Holdover stability (option D only):



±0.32ppm max over 24hrs

Supply voltage (V

Temperature range:

+3.3V (±5%)

+5.0V (±5%)

-20 to +70°C

-40 to +85°C

Ground

Output

Supply



























0.80

0.46Ø

7.90

(max)

6.30

(min)

7.62

Temperature hysteresis:

±0.4ppm max

15.24

Storage temperature range:

-55 to +125°C

Frequency vs supply voltage:

±50ppb, V

±5%

Frequency vs load change:

±50ppb, Z

±5%

Ageing:

±3.0ppm max 20 years

Features



Ideally suited for Telecomms applications

3.3V or 5.0V supply voltage

15pF CMOS output

Stratum 3 compliant models available

±4.6ppm stability over 20 years

Analogue compensation - no steps

Short term ageing (option D only):



±40ppb per day,



±4.63x10

-13

per sec

Supply current:



2.1mA typ, 6.0mA max (≤52.0MHz)



12.0mA max (>52.0MHz)

Driving ability:

15pF CMOS

Logic levels:

‘0’ level = 10%V

max

‘1’ level = 90%V

min

Waveform symmetry:

45:55 @ 50%V

Rise / fall times:

Start up time:

8.0ns max

1.0ms max

Ordering Information

Product name + variant + option codes + frequency

Option codes must be included to properly specify a model.

eg:

GTXO-C14V/DP 13.00MHz

±0.28ppm, 5.0V, -20+70°C, TCXO with VC

GTXO-C14T/ELI 14.40MHz

±0.5ppm, 3.3V, -40+85°C, TCXO no VC

Option code X (eg GTXO-C14V/X) denotes a custom spec.

Frequency adjustment:

None

±10ppm min 50%V

±40%V



±5% linearity, positive slope

Phase noise (typ @ 19.44MHz):

-90dBc/Hz @ 10Hz

-120dBc/Hz @ 100Hz

-140dBc/Hz @ 1kHz

-150dBc/Hz @ 10kHz

-152dBc/Hz @ 100kHz

Period jitter RMS:

3ps typ, 5ps max

Phase jitter RMS:

0.5ps typ, 1.0ps max, 12kHz~f





Tel:

+44 1460 256 100

07 Apr 2016

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com

GTXO-C14V/FP14.40MHZ Related Products

	GTXO-C14V/FP14.40MHZ	GTXO-C14T/DL50.00MHZ	GTXO-C14T/DL1.00MHZ	GTXO-C14T/FP14.40MHZ
Description	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
Manufacturer's serial number	GTXO-C14	GTXO-C14	GTXO-C14	GTXO-C14
Oscillator type	CMOS	CMOS	CMOS	CMOS
