SN74LS136ND datasheet, PDF - EEWORLD Datasheet

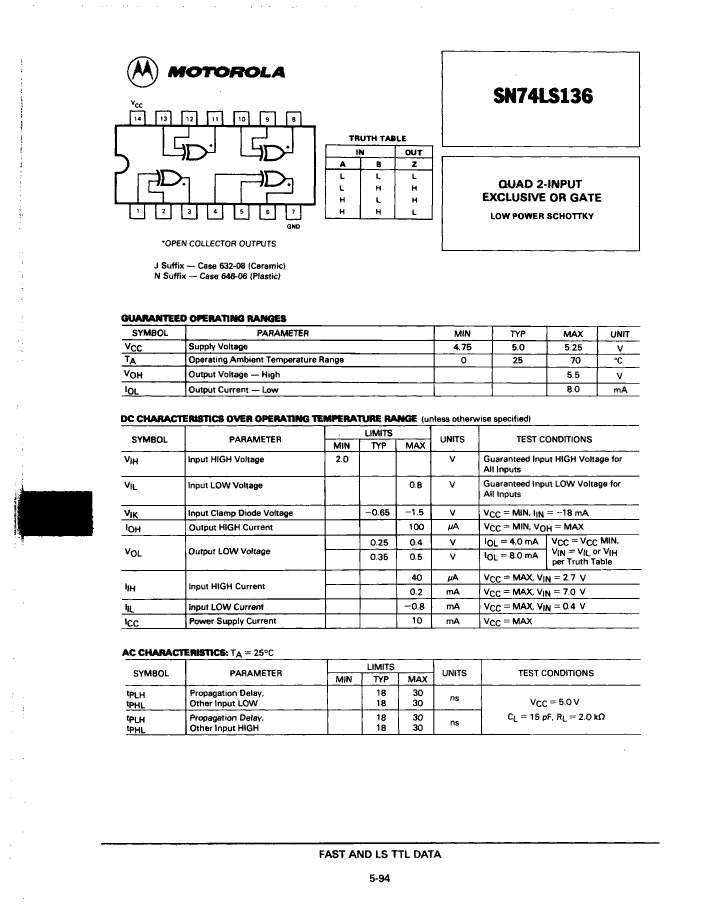

SN74LS136ND: DescriptionLS SERIES, QUAD 2-INPUT XOR GATE, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size28KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

SN74LS136ND Overview

LS SERIES, QUAD 2-INPUT XOR GATE, PDIP14, PLASTIC, DIP-14

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	18.86 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	XOR GATE
MaximumI(ol)	0.008 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	10 mA
Prop。Delay @ Nom-Sup	30 ns
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
