ACE705234BM+: DescriptionHigh efficiency, Low supply current, step-up DC/DC Controller; File Size649KB，14 Pages; ManufacturerACE [ACE Technology Co., Ltd.]

Download Datasheet View All

ACE705234BM+ Overview

High efficiency, Low supply current, step-up DC/DC Controller

Preview

Download Datasheet

View All

Technology

Description

ACE705

High efficiency, Low supply current, step-up

DC/DC Controller

The ACE705 series are CMOS-based PFM step-up DC-DC Controller with low supply current and high

output voltage accuracy. Quiescent current drawn from power source is as low as 6uA. It is capable of

delivering 500mA output current at 4.0V output with 2V input Voltage. Only four external components are

necessary: An inductor, a Schottky diode, an output filter capacitor and a NMOSFET or a NPN transistor

All of these features make ACE705 series be suitable for the portable devices, which are supplied by a

single battery to four-cell batteries.

ACE705 has a drive pin (EXT) for external transistor. So it is possible to load a large output current with

a power transistor which has a low saturation voltage.

ACE705 integrates stable reference circuits and trimming technology, so it can afford high precision and

low temperature-drift coefficient of the output voltage.

ACE705 is available in SOT-23-3 and SOT-23-5 packages which are PB free. And in SOT-23-5 the

device can be switch on or off easily by CE pin, to minimize the standby supply current.

Features

•

Deliver 500mA at 4.0V Output voltage with 2.0V input Voltage

The converter output voltage can be adjusted from 2.5V½6.0V(In 0.1V step)

Output voltage accuracy -----------±2％

Low temperature-drift coefficient of the output voltage------------------±100ppm/℃

Only four external components are necessary: An inductor, a Schottky diode an output filter

capacitor and a NMOSFET or a NPN transistor

High power conversion efficiency---90％

Low quiescent current drawn from power source------------------------------------- 6uA

Application

Power source for PDA. DSC. MP3 Player. electronic toy and wireless mouse

Power source for a single or dual-cell battery-powered equipments

Power source for LED

Absolute Maximum Ratings

Parameter

Input voltage range

Input voltage

CE pin voltage

EXT pin output current

Maximum power dissipation, Pd T=25℃

SOT-23-5

SOT-23-3

Maximum junction temperature

Operating free-air temperature range

Storage temperature range

Symbol

Max

Unit

-0.3~12

V(EXT) -0.3~Vout+0.3 V

-0.3~Vout+0.3 V

0.7

0.25

0.15

150

-20~80

-40~125

℃

VER 1.2

Technology

(2) Application with external NPN transistor

ACE705

High efficiency, multi-funtion step-up

DC/DC Controller

ACE705

Fig3

Note: R

=330Ω, C

=10nF. (R

can be calculated by load. If load is light R

’s value can be added. If load is heavy R

’s value can

be smaller. )

Detailed Description

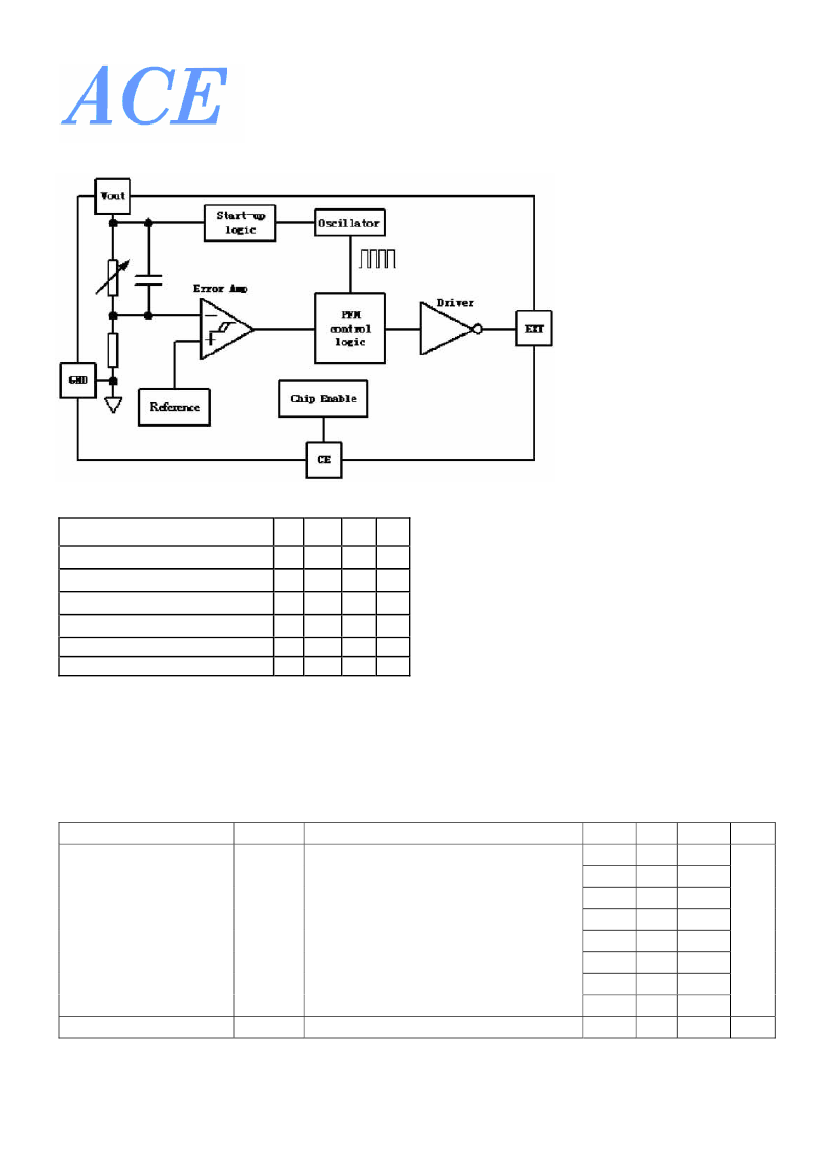

The ACE705 series are boost structure, voltage-type pulse-frequency modulation(PFM) step-up DC-DC

controller. Only four external components are necessary: an inductor, a schottky diode, an output filter

capacitor and a NMOSFET or a NPN transistor. The step-up DC-DC converter, constructed by ACE705,

can be adjusted from 2.5V to 6.0V, 0.1V step. By using the depletion technics, the quiescent current

drawn from power source is lower than 8uA. The high efficiency device consists of resistors for output

voltage detection and trimming, a start-up voltage circuit, an oscillator, a reference circuit, a PFM control

circuit, a switch protection circuit and a driver transistor.

ACE705 integrates PFM control system. This system controls fixed power switch on duty cycle

frequency to stabilize output voltage by calculating results of other blocks which sense input voltage,

output voltage, output current and load conditions. In PFM modulation system, the frequency and pulse

width is fixed. The duty cycle is adjusted by skipping pulses, so that switch on-time is changed based on

the conditions such as input voltage, output current and load. The oscillate block inside ACE705 provides

fixed frequency and pulse width wave.

The reference circuit provides stable reference voltage to output stable output voltage. Because internal

trimming technology is used, the chip output change less than ±2%. At the same time，the problem of

temperature-drift coefficient of output voltage is considered in design, so temperature-drift coefficient of

output voltage is less than 100ppm/℃。

High-gain differential error amplifier guarantees stable output voltage at difference input voltage

and load. In order to reduce ripple and noise, the error amplifier is designed with high band-with.

ACE705 has a drive pin (EXT) for external transistor. So it is possible to load a large output current with

a power transistor and a low saturation voltage. At very light load condition, the switch current and

quiescent current of chip will effect efficiency certainly. So in very light load condition, the efficiency will

drop. Therefore, it is recommended that user use ACE705 in the condition of load current as large as

several tens of mA to several hundreds of mA

VER 1.2
