ASFLM1-FREQ-C-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASFLM1-FREQ-C-T

ASFLM1-FREQ-C-T: DescriptionCMOS Output Clock Oscillator, 1MHz Min, 150MHz Max, ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4; CategoryPassive components oscillator; File Size1MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASFLM1-FREQ-C-T Overview

CMOS Output Clock Oscillator, 1MHz Min, 150MHz Max, ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4

ASFLM1-FREQ-C-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	150 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	10 KOHM, 15 pF

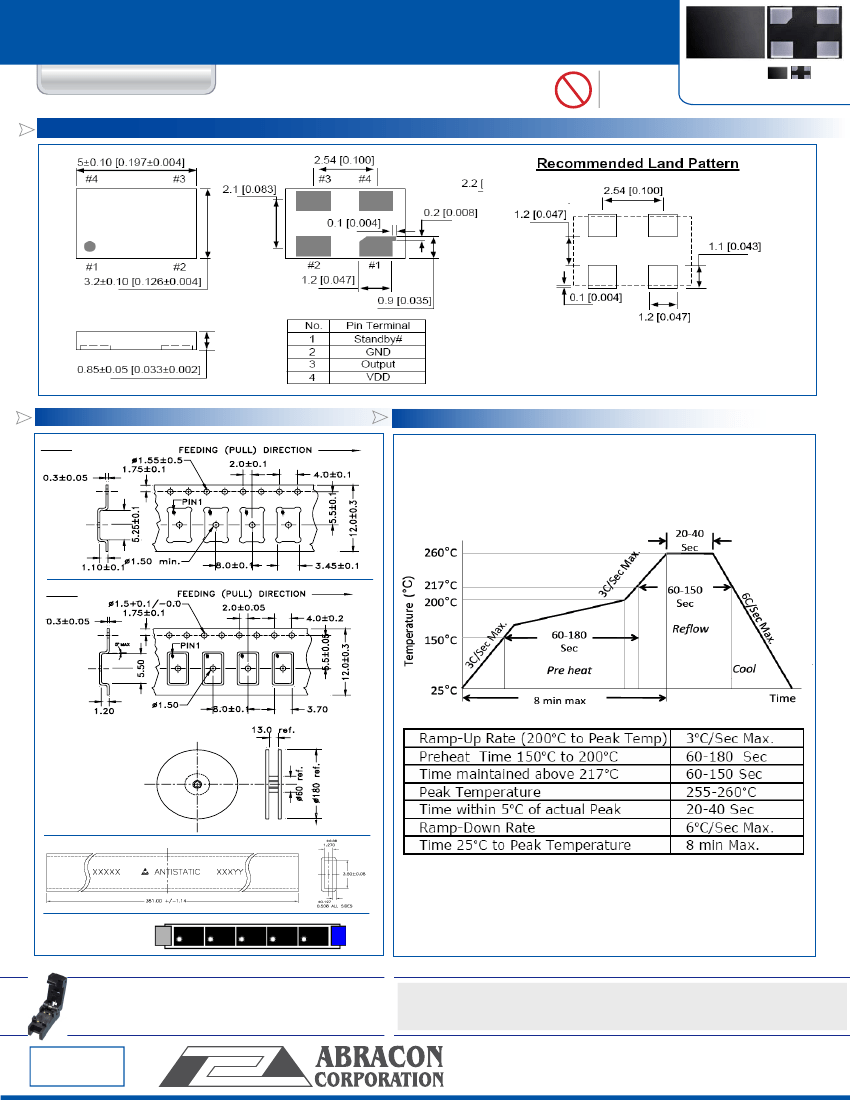

physical size	5.0mm x 3.2mm x 0.85mm
longest rise time	2 ns
Maximum supply voltage	3.3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)

Preview

Download Datasheet

View All

ULTRA MINIATURE PLASTIC PACKAGE

PURE SILICON CLOCK OSCILLATOR

ASFLM

Life Size

5.0 x 3.2 x 0.85mm

| | | | | | | | | | | | | | |

ASFLM

RoHS

Compliant

FEATURES:

• Ultra Miniature Pure Silicon

Clock Oscillator

• MEMS Technology by Discera

• Low Power Consumption <10mA

• Low Stand by Current <1uA

• Exceptional Stability Over Temp. at 40 to +85°C

• Available over Extended Temp Range

• Available in 30kG Shock Resistance Configuration

• Low Cost-Compact QFN Plastic Packaging

• Compact Package design

APPLICATIONS:

• CCD Clock for VTR Camera

• Equipment Connected to PCs

• Low Profile Equipment

AVAILABLE NOW!

• Lower Cost Crystal Oscillator Replacement

• Computers and Peripherals

• Portable Electronics (MP3 Players, Games)

• Consumer Electronics such as TV’s, DVR’s, etc.

• Vibrant, Shock-Prone & Humid Environments for Industrial Equipment

• Demanding Military & Automotive Electronics

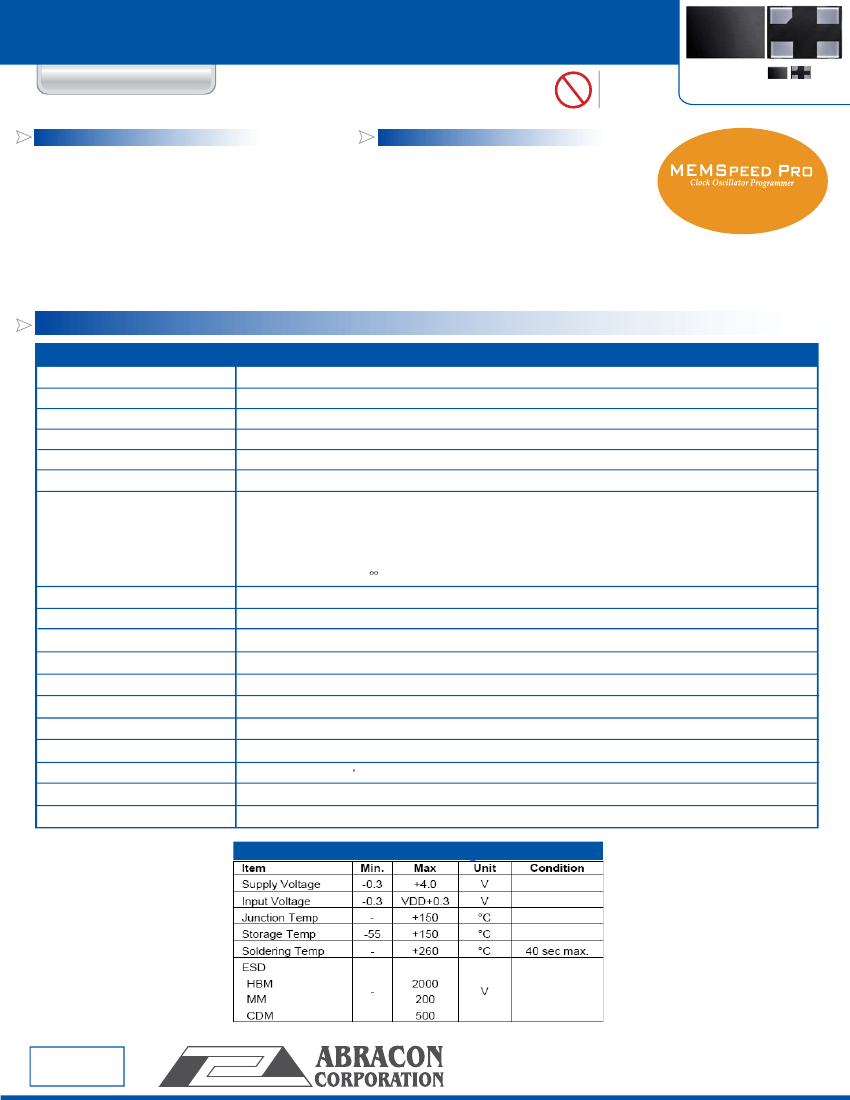

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency range

Operating temperature

Storage temperature:

Overall Frequency Stablilty

Supply Voltage (Vdd)

Supply Current

(No Load)

ASFLM Series

1.000 MHz to 150 MHz

0°C to + 70°C (see options)

-55° C to + 150 C

± 100 ppm max. (see options)

See options

3.0mA typ, 10.0mA max (1.0 to 39.9999MHz)

4.0mA typ, 10.0mA max (40.0 to 79.9999MHz)

5.0mA typ, 10.0mA max (80.0 to 124.9999MHz)

6.0mA typ, 10.0mA max (125.0 to 150MHz)

(T=+25°C,C

=0pF, R

=∞, Vdd=3.3 ± 0.3V, 3.0 ± 0.3V, 2.8 ± 0.2V, 2.5 ± 0.2V, 1.8 ± 0.15V)

Symmetry

Rise and fall time (Tr/Tf)

Output load

Output voltage:

Input voltage:

Start-up time

Disable time

Tri-State function (Stand-by)

Stand-by Current

Aging at +25°C/year

Jitter

(Cycle to Cycle, reference only):

45/55 % max.@ 1/2Vdd

1.3ns typ, 2ns max. (+25°C, C

=15pF, 20/80% Vdd.)

15 pF max, 10 kohms min.

VOH = 0.8* Vdd min. ; VOL = 0.2* Vdd max.

VIH = 0.75* Vdd min. ; VIL = 0.25* Vdd max.

3.0ms typ,10ms max.

20ns typ, 100ns max.

"1" or open: Oscillation; "0" : No oscillation/Hi Z

1uA max.

(T=+25 C, Vdd=3.3 ± 0.3V, 3.0 ± 0.3V, 2.8 ± 0.2V, 2.5 ± 0.2V, 1.8 ± 0.15V)

± 5ppm max.

100MHz: 95 ps

Absolute Maximum Ratings

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 10.15.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
