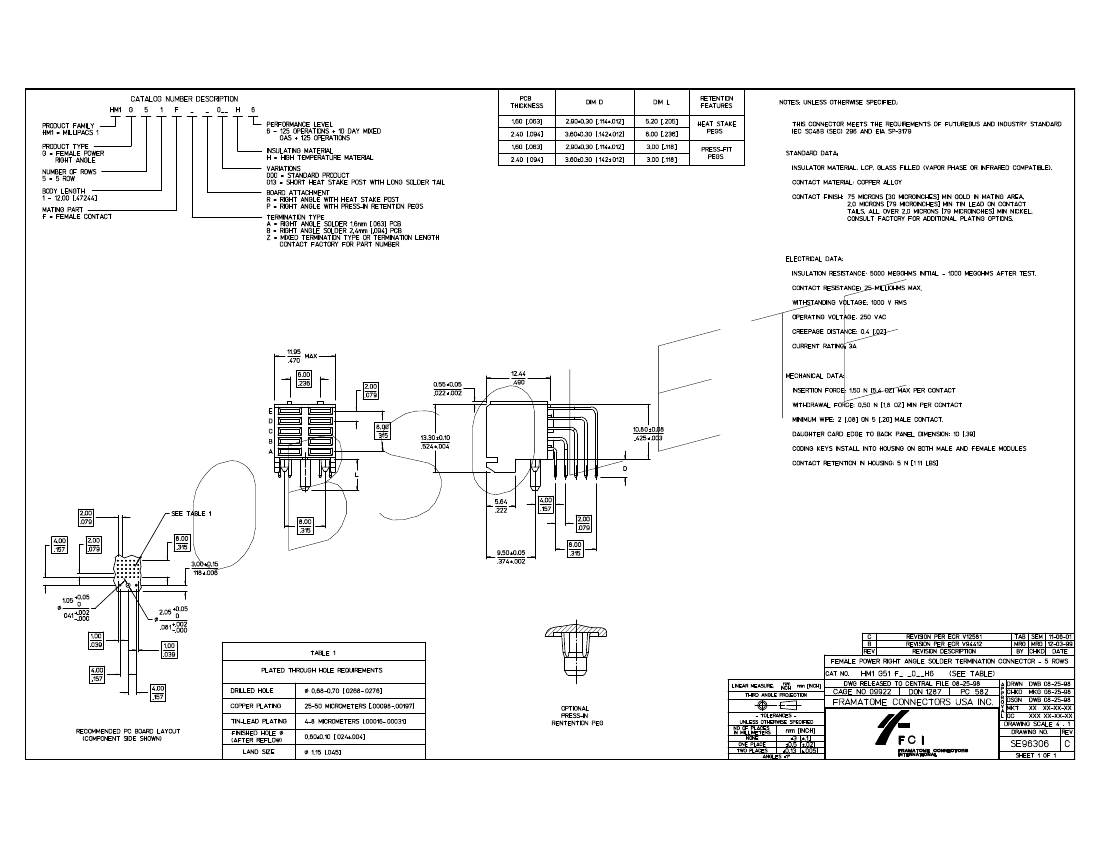

HM1G51FAP000H6 Overview

Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	MILLIPACS1, POLARIZED
body width	0.47 inch
subject depth	0.846 inch
body length	0.546 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.236 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	5
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	10

	HM1G51FAP000H6	HM1G51FAR000H6	HM1G51FBP000H6	HM1G51FBR000H6	HM1G51FAP013H6
Description	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	6 mm	2 mm	6 mm	6 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	10	10	10	10
Other features	MILLIPACS1, POLARIZED	MILLIPACS1, POLARIZED	MILLIPACS1, POLARIZED	MILLIPACS1, POLARIZED	-
Manufacturer's serial number	-	HM1	-	HM1	HM1
