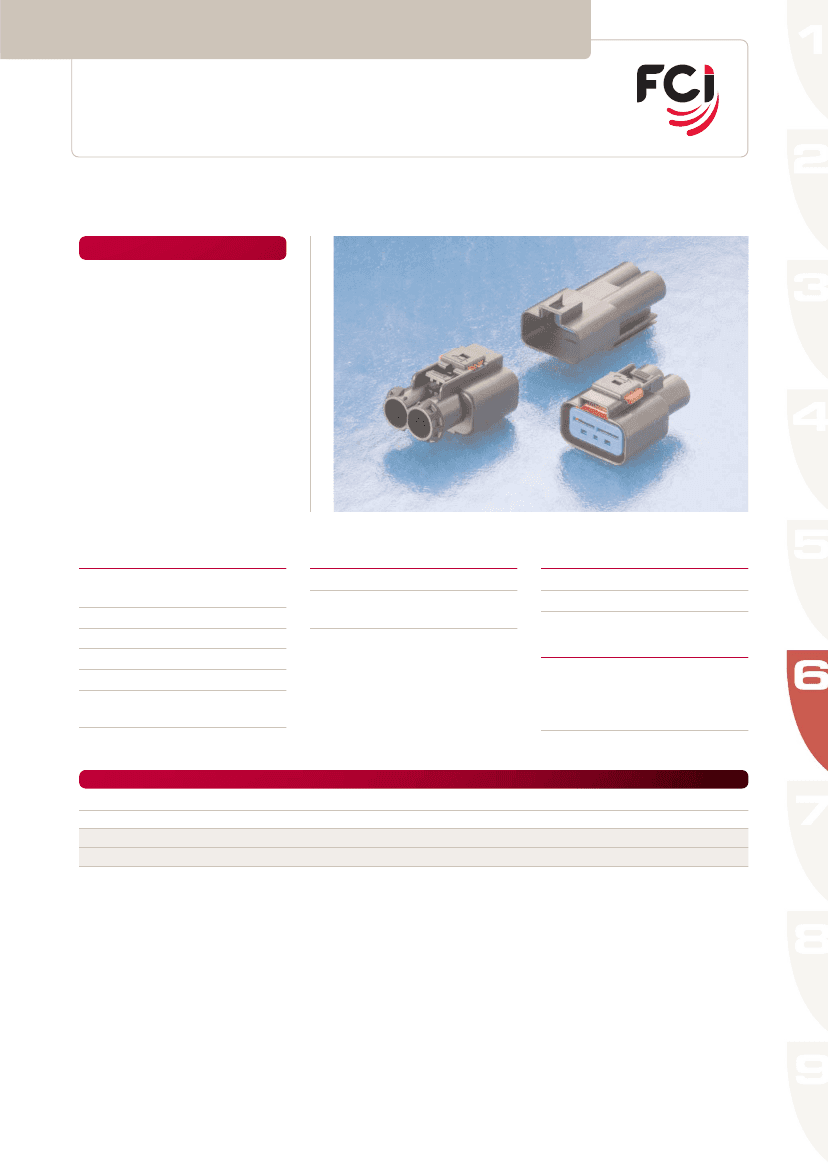

Engine Compartment Connectors
Coupling connectors
DCS-1
2 way sealed coupling housing for 9.5 mm terminals
Features
•
2 position housing
•
Waterproof application with Single
•
•
Wire Seal (SWS)
Circumferential interface seal
Additional terminal locking device
pre-assembled on the front part of
the housing
Plastic locking feature
Terminal position assurance (TPA)
Connector position assurance (CPA)
Mechanical polarization
•
•
•
•
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
Tooling
•
Terminal removal tool:
•
Mini applicator:
Consult us
Consult us
•
Circumferential interface seal:
> 80 N
< 30 N
< 75 N
IP 67
Silicone
•
Contact retention force:
•
Contact insertion force:
•
Connector mating force:
•
Sealing protection:
•
Acceptable wire range:
from 6 to 10 mm
2
Connector compatibility
•
Usable terminals:
- DCS-1 9.5 mm female terminals
- DCS-1 Box 9.5 mm female
terminals
Part Numbers
3 040 07 01
3 040 10 01
3 050 04 01
3 050 09 01
No. of position
2
2
2
2
Terminal size
9.5 mm (DCS-1)
9.5 mm (DCS-1 Box)
9.5 mm (DCS-1)
9.5 mm (DCS-1 Box)
Type
Female housing
Female housing
Male housing
Male housing
Colour
Black
Black
Black
Black
6.27
Engine Compartment Connectors
Coupling connectors
DCS-1
2 way sealed coupling housing for 9.5 mm terminals

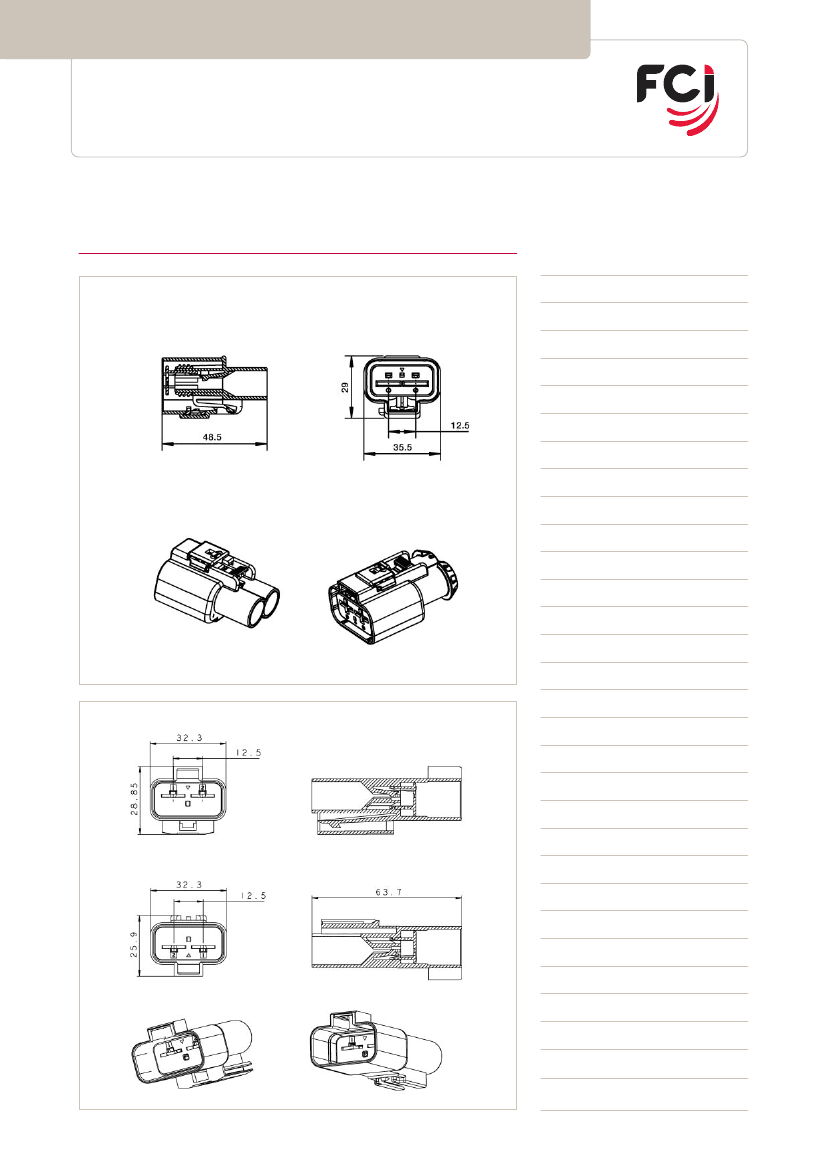

Dimensional characteristics
Notes:
2 way female housing
2 way male housing
6.28
