TPUD Wire-wound Power Inductor
SMT Unshielded
Wire-wound
Power Inductor
SMT Unshielded Wire-wound Power Inductors
Compact Low Profile to 0.8 mm (TPUD)
Preview

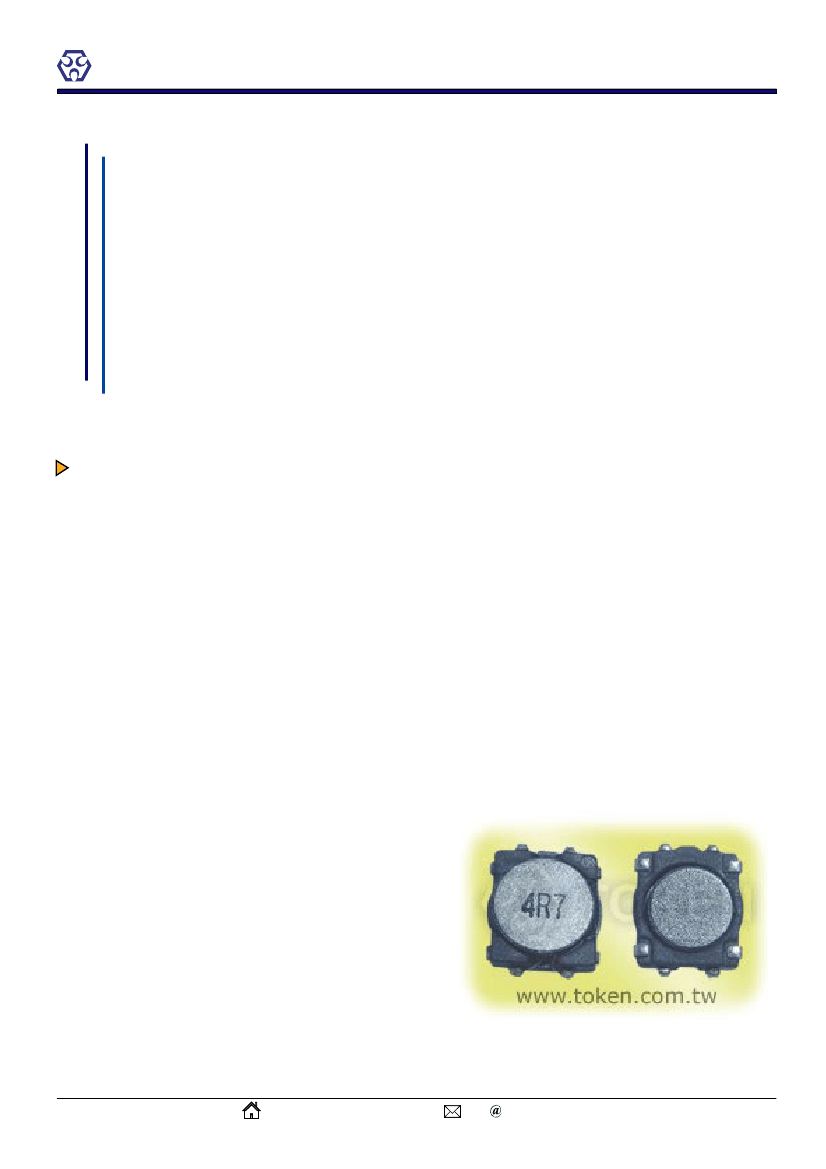

Token TPUD wire-wound series are designed for the smallest possible size and high performance with high
energy storage and very low resistance. Those devices are ideal power inductors for notebook, DC-DC converter,
digital camera and scanner, LCD Driver, and CD-Rom.
Utilize open Magnetic circuit construction and advance winding technology in manufacturing low profile
TPUD series. The maximum height of TPUD4006/4008 is only 0.8/1.0 mm, TPUD4011/4013 1.2/1.45 mm, and
TPUD5011/5013 1.2/1.5 mm.
The performance of the power components directly affects the overall efficiency of the supply in DC-DC
converters and power supplies, so it is of vital importance. The TPUD5013 features low DC resistance, down
to 0.081 ohm, and high rated current; up to 1.25 A is supported. Depending on version, the inductance values of
these surface mount inductors range from 2.2 uH to 100 uH.
Token power inductors unshielded (TPUD) series conform to the RoHS directive and Lead-free. Custom parts
are available for tighter tolerances on request. Application of specific designs also available including different
inductance and frequency specifications adjusted to requirements. Please contact our sales for more information.
Features :
- Open Magnetic circuit construction.
- Low Profile.
Applications :
- LCD Driver, Cellular Phone.
- Small DC/DC Converter.
- Transformers.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 06
TOKEN
TPUD Wire-wound Power Inductor

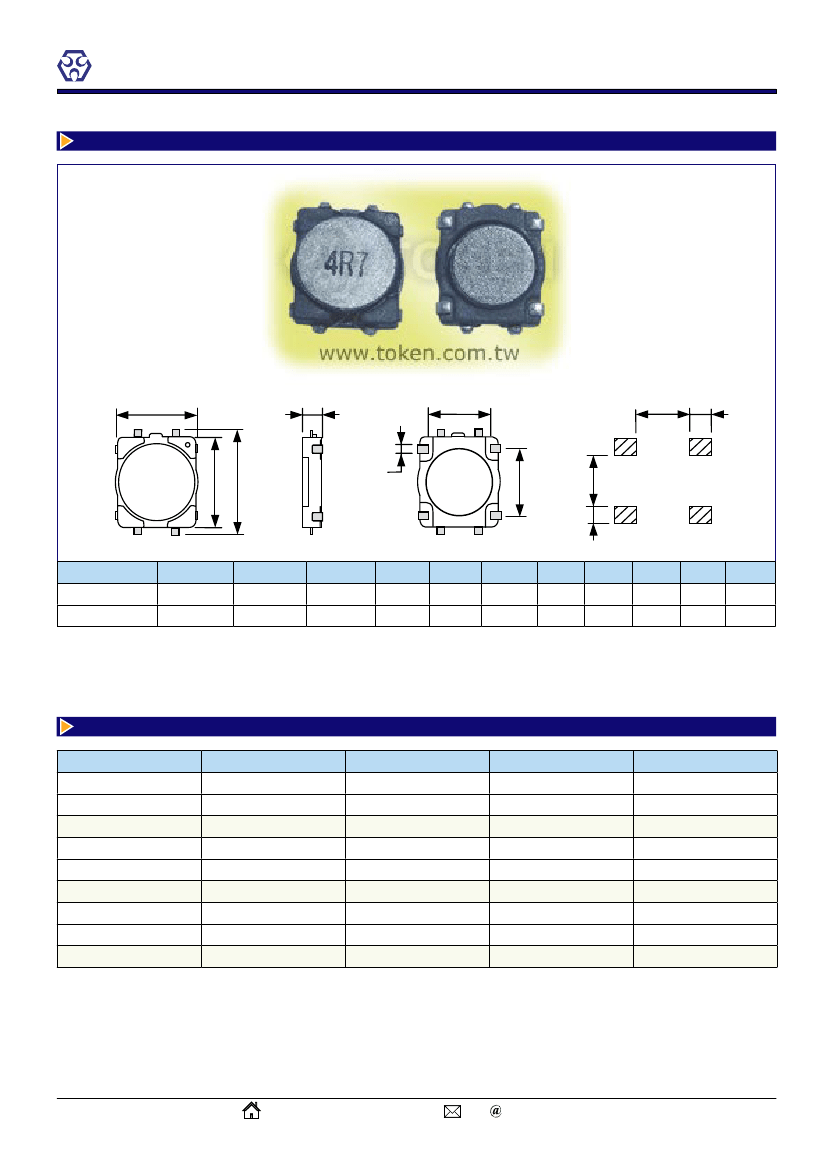

(TPUD4006/4008) Dimensions & Configurations
C
A
4
XXX
D
1
B
2
E
G
1
F
4
I
H
2
3
Land Pattern
J
K
3
Type
TPUD4006
TPUD4008
A
3.5
3.5
B(max)
5.8
5.8
C(max) D(max)
6.3
0.8
6.3
1.0
E
0.4
0.4
F
4.1
4.1
G
0.5
0.5
H
3.2
3.2
I
0.9
0.9
J
1.5
1.5
K
4.0
4.0
Note: Design as Customer’s Requested Specifications.

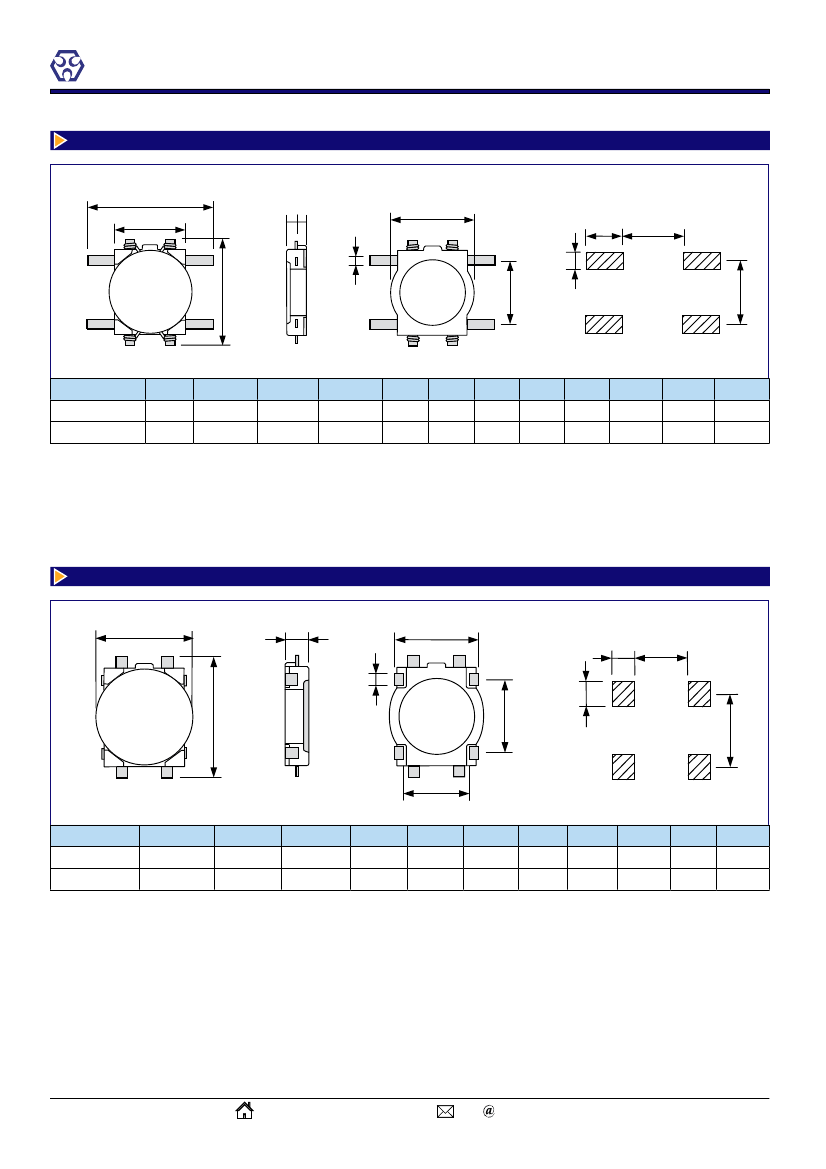

(TPUD4011/4013) Dimensions & Configurations
A
4
XXX
C
1
B
2
2
E
1
D
4
H
F
3
G
Land Pattern
J
I
3
Type
TPUD4011
TPUD4013
A(max)
4.4
4.4
B(max)
5.8
5.8
C(max)
1.2
1.45
D
3.7
3.7
E
0.5
0.5
F
3.2
3.2
G
2.9
2.9
H
0.8
0.8
I
1.4
1.4
J
2.5
2.5
K
Note: Design as Customer’s Requested Specifications.
02 of 06
http://www.token.com.tw/
rfq token.com.tw
Version 2010
L
L
3.2
3.2
K
3.2
3.2
TOKEN
TPUD Wire-wound Power Inductor
(TPSH0301) Electrical Characteristics
Land Pattern
A
4
XXX
C
1
1
D B
2
E
F
4
G
2
3
I
H
J
K
TC
3
Type
TPUD5011
TPUD5013
A(max)
5.8
5.8
B(max)
7.4
7.4
C(max)
1.2
1.5
D
6.0
6.0
E
0.6
0.6
F
4.2
4.2
G
4.5
4.5
H
1.1
1.1
I
3.4
3.4
J
3.6
3.6
K
1.4
1.4
Note: Design as Customer’s Requested Specifications.
(TPUD4006) Electrical Characteristics
Part Number
TPUD4006 - 2R2M
TPUD4006 - 3R3M
TPUD4006 - 4R7M
TPUD4006 - 6R8M
TPUD4006 - 100M
TPUD4006 - 150M
TPUD4006 - 220M
TPUD4006 - 330M
TPUD4006 - 470M
Inductance (µH)
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
Test Freq. (KHz)
100
100
100
100
100
100
100
100
100
DCR (Ω) (max)
0.116
0.174
0.216
0.296
0.457
0.676
1.066
1.647
2.843
IDC (A) (max)
0.95
0.77
0.75
0.62
0.50
0.40
0.30
0.24
0.18
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 06
TOKEN
Part Number
TPUD4008-3R3M
TPUD4008-4R7M
TPUD4008-6R8M
TPUD4008-100M
TPUD4008-150M
TPUD4008-220M
TPUD4008-330M
TPUD4008-470M
TPUD4008-680M
TPUD4008-101M
TPUD Wire-wound Power Inductor
Inductance (µH)
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
68.00
100.00
Test Freq. (KHz)
100
100
100
100
100
100
100
100
100
100
DCR (Ω) (max)
0.160
0.194
0.276
0.335
0.508
0.766
1.162
1.658
2.534
3.304
IDC (A) (max)
0.85
0.80
0.65
0.57
0.45
0.37
0.28
0.22
0.18
0.17
(TPUD4008) Electrical Characteristics
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
(TPUD4011) Electrical Characteristics
Part Number
TPUD4011 - 2R2M
TPUD4011 - 3R3M
TPUD4011 - 4R7M
TPUD4011 - 6R8M
TPUD4011 - 100M
TPUD4011 - 150M
TPUD4011 - 220M
TPUD4011 - 330M
TPUD4011 - 470M
Inductance(µH)
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
Test Freq.(KHz)
100
100
100
100
100
100
100
100
100
DCR (Ω)(max)
0.116
0.174
0.216
0.296
0.457
0.676
1.066
1.647
2.843
IDC (A)(max)
0.95
0.77
0.75
0.62
0.50
0.40
0.30
0.24
0.18
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
(TPUD4013) Electrical Characteristics
Part Number
TPUD4013 - 3R3M
TPUD4013 - 4R7M
TPUD4013 - 6R8M
TPUD4013 - 100M
TPUD4013 - 150M
TPUD4013 - 220M
TPUD4013 - 330M
TPUD4013 - 470M
TPUD4013 - 680M
TPUD4013 - 101M
Inductance(µH)
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
33.00
47.00
Test Freq.(KHz)
100
100
100
100
100
100
100
100
100
100
DCR (Ω)(max)
0.160
0.194
0.276
0.335
0.508
0.766
1.162
1.658
2.534
3.304
IDC (A)(max)
0.85
0.80
0.65
0.57
0.45
0.37
0.28
0.22
0.18
0.17
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
04 of 06
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
Part Number
TPUD5011 - 3R3M
TPUD5011 - 4R7M
TPUD5011 - 6R8M
TPUD5011 - 100M
TPUD5011 - 150M
TPUD5011 - 220M
TPUD5011 - 330M
TPUD5011 - 470M
TPUD5011 - 680M
TPUD5011 - 101M
TPUD Wire-wound Power Inductor
Inductance(µH)
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
68.00
100.00
Test Freq.(KHz)
100
100
100
100
100
100
100
100
100
100
DCR (Ω)(max)
0.109
0.156
0.216
0.275
0.438
0.663
0.975
1.380
1.700
2.800
IDC (A)(max)
0.94
0.80
0.65
0.53
0.40
0.36
0.32
0.26
0.23
0.20
(TPUD5011) Electrical Characteristics
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=10% typ. at IDC.
(TPUD5013) Electrical Characteristics
TPUD5013 - 3R3M
TPUD5013 - 4R7M
TPUD5013 - 6R8M
TPUD5013 - 100M
TPUD5013 - 150M
TPUD5013 - 220M
TPUD5013 - 330M
TPUD5013 - 470M
Note: Test Freq.: 100KHz / 0.1V.
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
100
100
100
100
100
100
100
100
Operating Temp.: -40°C ~ +85°C.
0.081
0.106
0.144
0.187
0.300
0.431
0.637
0.875
1.25
1.20
0.90
0.85
0.57
0.54
0.38
0.35
Inductance drop=10% typ. at IDC.
Version 2010
http://www.token.com.tw/
rfq token.com.tw
05 of 06
