BPM-12/25-D5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BPM-12/25-D5

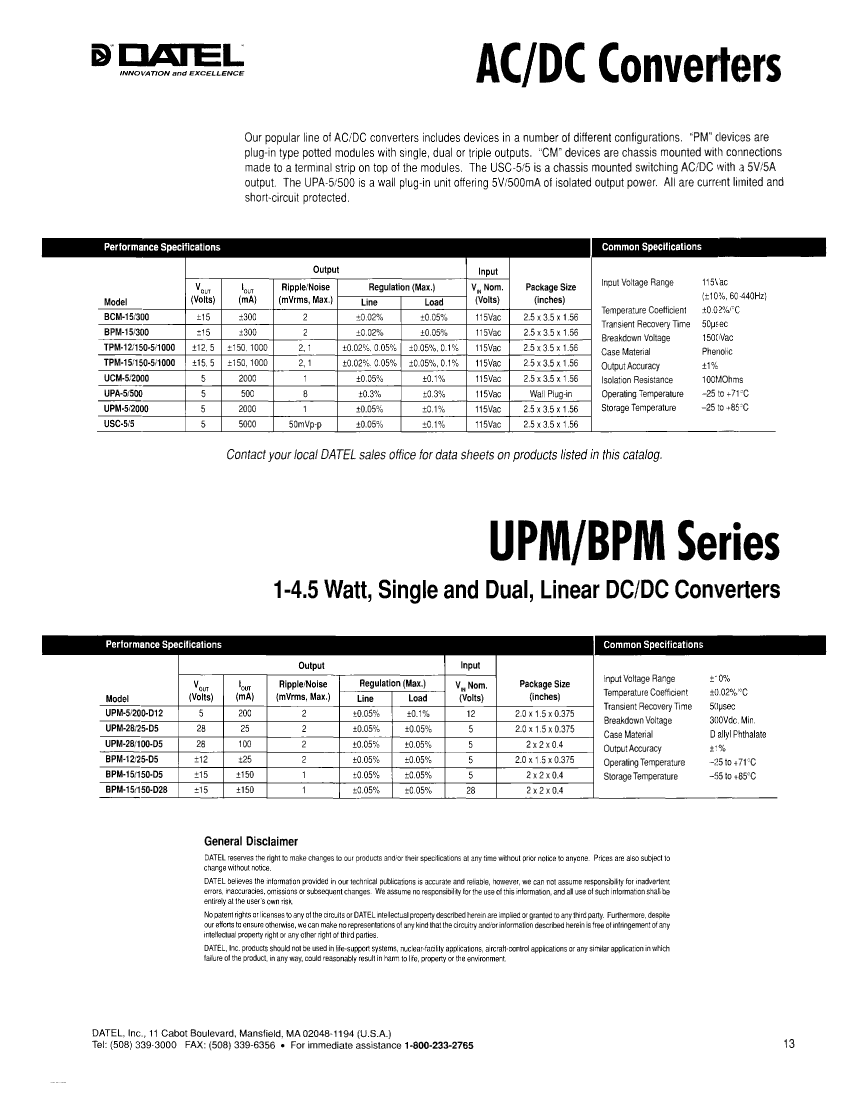

BPM-12/25-D5: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, 2 X 1.500 X 0.375 INCH, MODULE, PLUG IN-6; CategoryPower/power management The power supply circuit; File Size56KB，1 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

BPM-12/25-D5 Overview

DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, 2 X 1.500 X 0.375 INCH, MODULE, PLUG IN-6

BPM-12/25-D5 Parametric

Parameter Name	Attribute value
Maker	DATEL Inc.
Parts packaging code	MODULE
package instruction	DIP,
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDIP-P6
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.05%
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	1 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

BPM-12/25-D5 Related Products

	BPM-12/25-D5	UPM-28/25-D5	TPM-12/150-5/1000	BPM-15/150-D28	BPM-15/150-D5	BPM-15/300	UPM-28/100-D5	UPM-5/200-D12
Description	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, 2 X 1.500 X 0.375 INCH, MODULE, PLUG IN-6	DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, 2 X 1.500 X 0.375 INCH, MODULE, PLUG IN-6	AC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2.500 X 3.500 X 1.560 INCH PACKAGE	DC-DC Regulated Power Supply Module, 2 Output, 4.5W, Hybrid, 2 X 2 X 0.400 INCH, MODULE, PLUG IN-7	DC-DC Regulated Power Supply Module, 2 Output, 4.5W, Hybrid, 2 X 2 X 0.400 INCH, MODULE, PLUG IN-7	AC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2.500 X 3.500 X 1.560 INCH PACKAGE	DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, 2 X 2 X 0.400 INCH, MODULE, PLUG IN-14	DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, 2 X 1.500 X 0.375 INCH, MODULE, PLUG IN-6
Maker	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	DIP,	DIP,	,	DIP, MODULE,7LEAD,1.6	DIP, MODULE,7LEAD,1.6	,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V	5.5 V	126.5 V	30.8 V	5.5 V	126.5 V	5.5 V	13.2 V
Minimum input voltage	4.5 V	4.5 V	103.5 V	25.2 V	4.5 V	103.5 V	4.5 V	10.8 V
Nominal input voltage	5 V	5 V	115 V	28 V	5 V	115 V	5 V	12 V
JESD-30 code	R-PDIP-P6	R-PDIP-P6	X-XXMA-X	S-MDIP-P7	S-MDIP-P7	X-XXMA-X	S-PDIP-P14	R-PDIP-P6
Maximum grid adjustment rate	0.05%	0.05%	0.05%	0.05%	0.05%	0.02%	0.05%	0.05%
Maximum load regulation	0.05%	0.05%	0.1%	0.05%	0.05%	0.05%	0.05%	0.1%
Number of functions	1	1	1	1	1	1	1	1
Output times	2	1	3	2	2	2	1	1
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	12.12 V	28.28 V	5.05 V	15.15 V	15.15 V	15.15 V	28.28 V	5.05 V
Minimum output voltage	11.88 V	27.72 V	4.95 V	14.85 V	14.85 V	14.85 V	27.72 V	4.95 V
Nominal output voltage	12 V	28 V	5 V	15 V	15 V	15 V	28 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	METAL	METAL	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED	SQUARE	SQUARE	UNSPECIFIED	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE
Protect	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	PIN/PEG	PIN/PEG	UNSPECIFIED	PIN/PEG	PIN/PEG	UNSPECIFIED	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	UNSPECIFIED	DUAL	DUAL	UNSPECIFIED	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO
Contacts	6	6	-	7	7	-	14	6
Number of terminals	6	6	-	7	7	-	14	6
encapsulated code	DIP	DIP	-	DIP	DIP	-	DIP	DIP
Maximum total power output	1 W	1 W	-	4.5 W	4.5 W	-	3 W	1 W
