PT01SE-16-99SW(003) datasheet, PDF

Datasheet> All Categories > The connector> The connector> PT01SE-16-99SW(003)

PT01SE-16-99SW(003): DescriptionMIL Series Connector, 23 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT01SE-16-99SW(003) Overview

MIL Series Connector, 23 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

PT01SE-16-99SW(003) Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACTS: LP-597820-355; 10-257982-16F
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	PT01SE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	CRIMP
Total number of contacts	23

Preview

Download Datasheet

View All

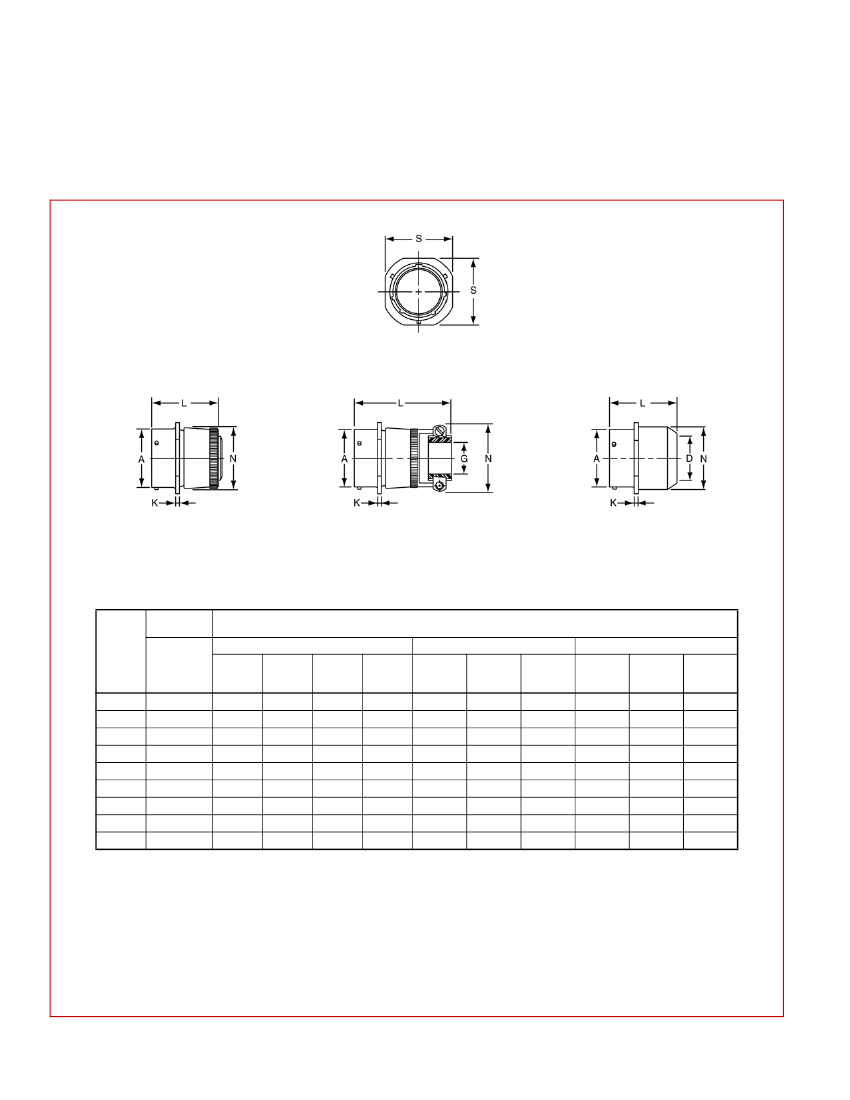

PT01 SE (MS3121)

SP01 SE

cable connecting receptacle

TERMINATION ASSEMBLIES

“SE”, MS / “E” Open Wire Seal

“SE” (SR), MS / “F” Strain Relief

“SP”, MS / “P” Potting Boot

PT01SE-XX-XXX

SP01SE-XX-XXX

MS3121E-XX-XXX

PT01SE-XX-XXX (SR)

SP01SE-XX-XXX (SR)

MS3121F-XX-XXX

PT01SP-XX-XXX

SP01SP-XX-XXX

MS3121P-XX-XXX

Note: This connector style is sometimes referred to as a cable connecting “plug”.

It does, however, mate with either a straight or 90 degree plug.

To complete part number see how to order on page 32.

Receptacle

Front View

Class “SE”, MS / “E”

Shell

Size

Max.

A Dia.

+.001

–.005

±.018

Max.

Dia.

Max.

Receptacle

Side View

Class “SE” (SR), MS / “F”

Dia.

Max.

Class “SP”, MS / “P”

Dia.

Max.

Dia.

Max.

.812

.955

1.048

1.142

1.236

1.329

1.455

1.579

1.709

.473

.590

.750

.875

1.000

1.125

1.250

1.375

1.500

.094

.115

1.522

1.709

.560

.685

.813

.930

1.057

1.175

1.301

1.428

1.555

.125

.188

.312

.375

.500

.625

.750

.800

2.422

2.537

2.824

2.900

.828

.891

1.016

1.141

1.203

1.469

1.656

1.750

–

.444

.558

.683

.808

.909

1.034

1.159

1.284

–

1.656

1.750

1.782

–

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

All dimensions for reference only.
