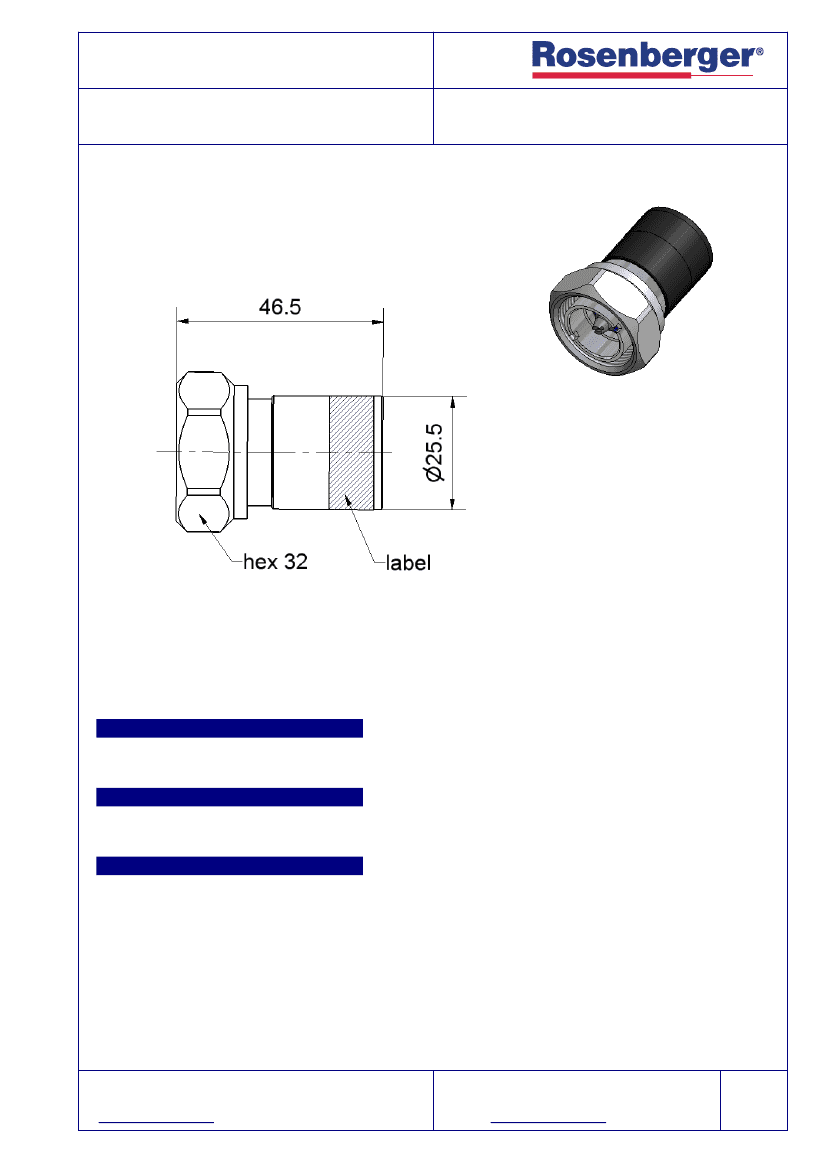

TECHNICAL DATA SHEET
7/16
TERMINATION PLUG
60S15R-005N1
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-4, VG 95250, EN 122190, DIN 47223
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Body
Coupling nut
Dielectric
Substrate
Material
Brass
Brass
AL
Brass
PPE
ALN
Plating
Silver, 3-6 µm
Flash white bronze over silver(e.g. Optargen®)
black anodised
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
7/16
TERMINATION PLUG
60S15R-005N1
50
Ω
DC to 2 GHz
≥
20.8 dB, DC to 2 GHz
≤
0.4 mΩ
≤
1.5 mΩ
5 W at 25°C
derated linearity to 0 Watts at 125°C
Electrical data
Impedance
Frequency
Return loss
Center contact resistance
Outer contact resistance
Power handling
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation
Coupling torque (recommended)
Proof torque
min. 500
≥
1000 N
≥
200 N
25 to 30 Nm
max. 35 Nm
Environmental data
Temperature range
-65°C to +85°C
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
149 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Kerstin Herzog
Date
26/05/05
Approved
Frank Weiß
Date
30/05/05
Rev.
a00
Engineering change number
04-0130
Name
Siegmar Hoyer
Date
30/05/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
