EC2820HSETT-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EC2820HSETT-FREQ

EC2820HSETT-FREQ: DescriptionCRYSTAL OSCILLATOR, CLOCK, 1.544 MHz - 33 MHz, HCMOS OUTPUT; CategoryPassive components oscillator; File Size269KB，4 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC2820HSETT-FREQ Overview

CRYSTAL OSCILLATOR, CLOCK, 1.544 MHz - 33 MHz, HCMOS OUTPUT

EC2820HSETT-FREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	TRI-STATE ENABLE/DISABLE FUNCTION
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e3
Manufacturer's serial number	EC28
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	33 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	13.2mm x 13.2mm x 5.6mm
longest rise time	6 ns
Nominal supply voltage	2.5 V
surface mount	NO
maximum symmetry	55/45 %
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

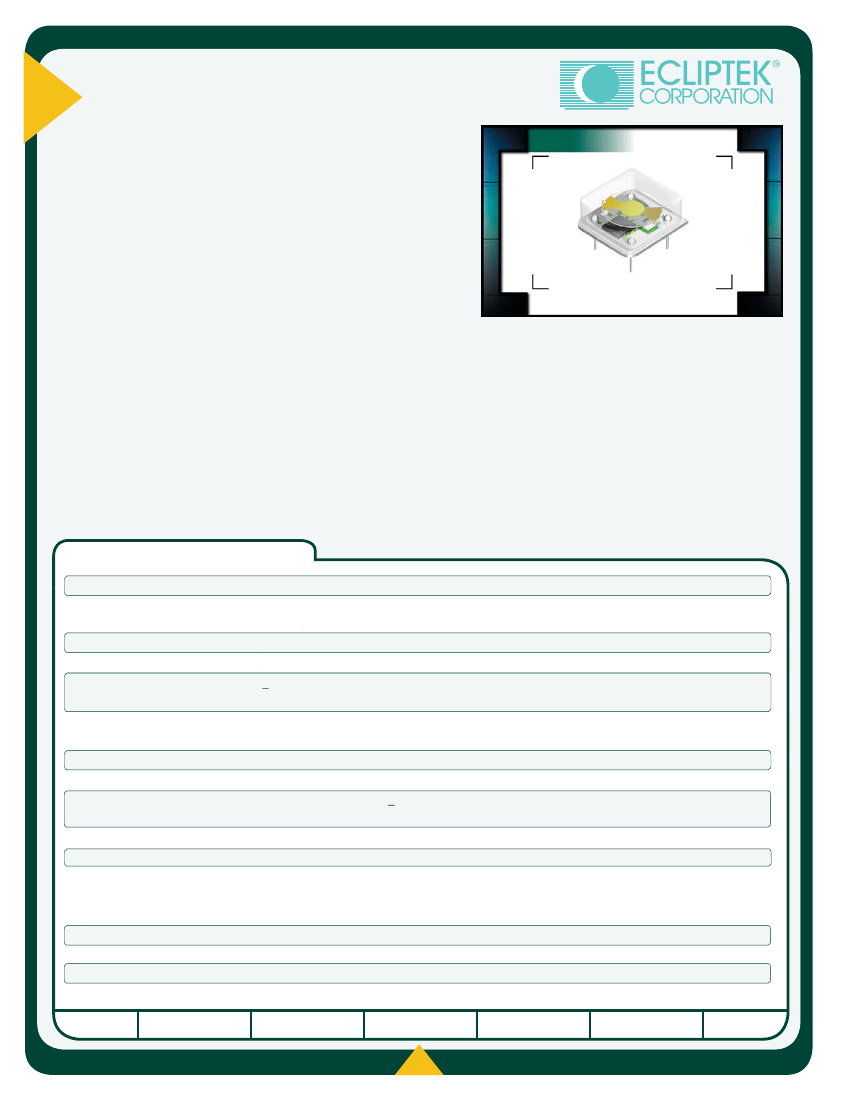

EC28

Series

• HCMOS output

• 2.5V supply voltage

• 14 pin DIP package

• Stability to 20ppm

• Custom lead length,

gull wing options available

NOTES

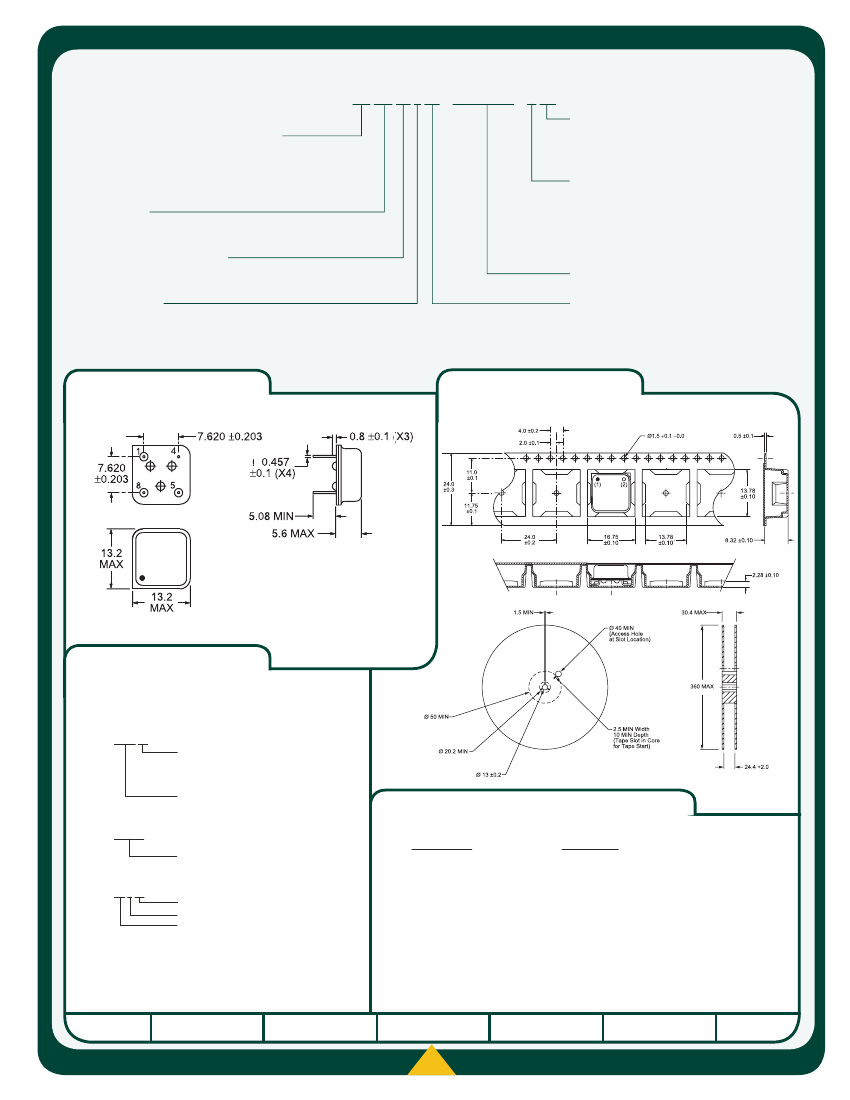

EC28

H 5.08

W 20.8

L 13.2

OSCILLATOR
