HCPL-3020/HCPL-0302
0.4 Amp Output Current IGBT Gate Drive Optocoupler
Data Sheet
Description
The HCPL-3020 and HCPL-0302 consist of a GaAsP LED
optically coupled to an integrated circuit with a power
output stage. These optocouplers are ideally suited for
driving power IGBTs and MOSFETs used in motor control
inverter applications. The high operating voltage range of
the output stage provides the drive voltages required by
gate-controlled devices. The voltage and current supplied
by this optocoupler makes it ideally suited for directly driv-
ing small or medium power IGBTs. For IGBTs with higher
ratings, the HCPL-0314/3140 (0.6 A), HCPL-3150 (0.6 A) or
HCPL-3120 (2.5 A) gate drive opto-couplers can be used.
Features
• 0.4 A maximum peak output current
• 0.2 A minimum peak output current
• High speed response: 0.7 µs maximum propagation
delay over temperature range
• Ultra high CMR: minimum 10 kV/µs at V
CM
= 1000 V
• Bootstrappable supply current: maximum 3 mA
• Wide operating temperature range: –40°C to 100°C
• Wide V
CC
operating range: 10 V to 30 V over tempera-
ture range
•
•
•
•
Available in DIP 8 and SO-8 packages
Safety approvals: UL approval, 3750 V
RMS
for 1 minute
CSA approval
IEC/EN/DIN EN 60747-5-2 approval
V
IORM
= 630 V
PEAK
(HCPL-3020),
V
IORM
= 566 V
PEAK
(HCPL-0302)
Functional Diagram
N/C
ANODE
CATHODE
N/C
1
2
3
4
8
7
6
5
V
CC
N/C
V
O
V
EE
Applications
•
•
•
•
Isolated IGBT/power MOSFET gate drive
AC and brushless DC motor drives
Industrial inverters
Air conditioner
SHIELD
Truth Table
LED
OFF
ON
V
O
LOW
HIGH
• Washing machine
• Induction heater for cooker
• Switching power supplies (SPS)
Note:
A 0.1 uF bypass capacitor must be connected between pins V
CC
and V
EE
.
CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to pre-
vent damage and /or degradation which may be induced by ESD.
Ordering Information
Specify part number followed by option number (if desired).
Example:
HCPL-3020-XXXX
No option = Standard DIP package, 50 per tube
300 = Gull Wing Surface Mount Option, 50 per tube
500 = Tape and Reel Packaging Option
060 = IEC/EN/DIN EN 60747-5-2, V
IORM
= 630 V
PEAK
XXXE = Lead Free Option
HCPL-0302-XXXX
No option = Standard SO-8 package, 100 per tube
500 = Tape and Reel Packaging Option
060 = IEC/EN/DIN EN 60747-5-2, V
IORM
= 566 V
PEAK
XXXE = Lead Free Option

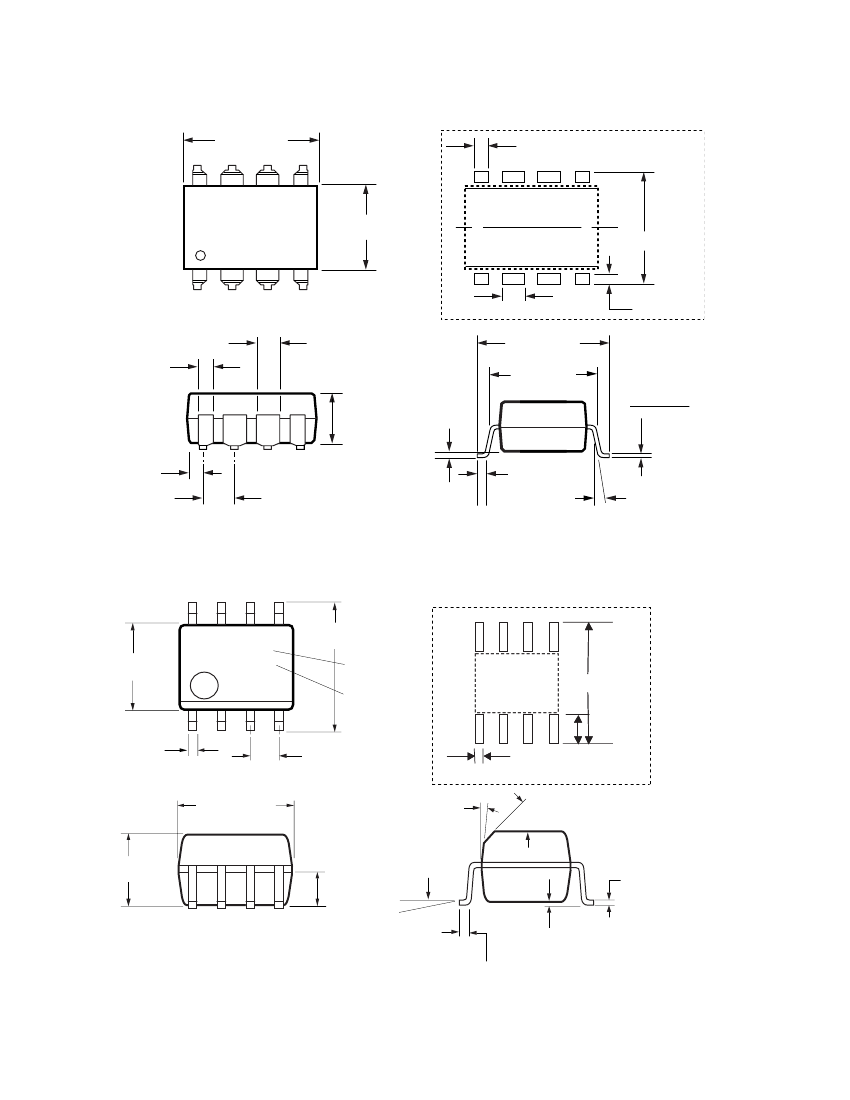

Package Outline Drawings
HCPL-3020 Standard DIP Package
9.65 ± 0.25
(0.380 ± 0.010)
TYPE NUMBER
8
7
6
5
7.62 ± 0.25
(0.300 ± 0.010)
6.35 ± 0.25
(0.250 ± 0.010)
OPTION CODE*
DATE CODE
A XXXXZ
YYWW
1
1.19 (0.047) MAX.
2
3
4
1.78 (0.070) MAX.
+ 0.076
- 0.051
+ 0.003)
(0.010 - 0.002)
0.254
5 TYP.
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
0.51 (0.020) MIN.
2.92 (0.115) MIN.
DIMENSIONS IN MILLIMETERS AND (INCHES).
* MARKING CODE LETTER FOR OPTION NUMBERS.
"V" = OPTION 060
OPTION NUMBERS 300 AND 500 NOT MARKED.
NOTE:
FLOATING LEAD PROTUSION IS 0.25 mm (10 mils) MAX.
1.080 ± 0.320
(0.043 ± 0.013)
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
2
HCPL-3020 Gull Wing Surface Mount Option 300
Land Pattern Recommendation
9.65 ± 0.25
(0.380 ± 0.010)
8
7
6
5
1.016 (0.040)
6.350 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
1
2
3
4
1.27 (0.050)
1.780
(0.070)
MAX.
9.65 ± 0.25
(0.380 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
0.20 (0.008)
0.33 (0.013)
2.0 (0.080)
1.19
(0.047)
MAX.
3.56 ± 0.13
(0.140 ± 0.005)
1.080 ± 0.320
(0.043 ± 0.013)
2.54
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
0.635 ± 0.130
(0.025 ± 0.005)
0.635 ± 0.25
(0.025 ± 0.010)
12 NOM.
NOTE: FLOATING LEAD PROTUSION IS 0.25 mm (10 mils) MAX.
HCPL-0302 Small Outline SO-8 Package
Land Pattern Recommendation
8
7
6
XXX
YWW
5
5.994 ± 0.203
(0.236 ± 0.008)
TYPE NUMBER
(LAST 3 DIGITS)
DATE CODE
PIN ONE
0.406 ± 0.076
(0.016 ± 0.003)
* 5.080 ± 0.127
(0.200 ± 0.005)
1
2
3
4
1.270 BSC
(0.050)
1.9 (0.075)
7.49 (0.295)
3.937 ± 0.127
(0.155 ± 0.005)
0.64 (0.025)
7
0.432
(0.017)
45 X
3.175 ± 0.127
(0.125 ± 0.005)
1.524
(0.060)
0~7
0.228 ± 0.025
(0.009 ± 0.001)
*
TOTAL PACKAGE LENGTH (INCLUSIVE OF MOLD FLASH)
5.207 ± 0.254 (0.205 ± 0.010)
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES) MAX.
0.203 ± 0.102
(0.008 ± 0.004)
0.305 MIN.
(0.012)
NOTE: FLOATING LEAD PROTUSION IS 0.15 mm (6 mils) MAX.
3
Solder Reflow Temperature Profile
300
PREHEATING RATE 3˚C + 1˚C/–0.5˚C/SEC.
REFLOW HEATING RATE 2.5˚C ± 0.5˚C/SEC.
PEAK
TEMP.
245˚C
PEAK
TEMP.
240˚C
200
PEAK
TEMP.
230˚C
TEMPERATURE (˚C)
2.5˚C ± 0.5˚C/SEC.
160˚C
150˚C
140˚C
3˚C + 1˚C/–0.5˚C
30
SEC.
30
SEC.
SOLDERING
TIME
200˚C
100
PREHEATING TIME
150˚C, 90 + 30 SEC.
50 SEC.
TIGHT
TYPICAL
LOOSE
0
50
ROOM TEMPERATURE
0
100
TIME (SECONDS)
150
200
250
Note: Use of non-chlorine-activated fluxes is highly recommended
Recommended Solder Reflow Temperature Profile (Lead free)
tp
Tp
217 ˚C
TL
Tsmax
Tsmin
260 +0/-5 ˚C
TIME WITHIN 5 ˚C of ACTUAL
PEAK TEMPERATURE
20-40 SEC.
TEMPERATURE (˚C)
RAMP-UP
3 ˚C/SEC. MAX.
150 - 200 ˚C
RAMP-DOWN
6 ˚C/SEC. MAX.
ts
PREHEAT
60 to 180 SEC.
25
t 25 ˚C to PEAK
tL
60 to 150 SEC.
TIME (SECONDS)
NOTES:
THE TIME FROM 25 ˚C to PEAK TEMPERATURE = 8 MINUTES MAX.
Tsmax = 200 ˚C, Tsmin = 150 ˚C
Note: Use of non-chlorine-activated fluxes is highly recommended
4
Regulatory Information
The HCPL-0302/3020 has been approved by the following organizations:
IEC/EN/DIN EN 60747-5-2
Approved under:
IEC 60747-5-2:1997 + A1:2002
EN 60747-5-2:2001 + A1:2002
DIN EN 60747-5-2 (VDE 0884 Teil 2):2003-01.
(Option 060 only)
UL
Approval under UL 1577, component recognition pro-
gram up to V
ISO
= 3750 V
RMS
. File E55361.
CSA
Approval under CSA Component Acceptance Notice #5,
File CA 88324.
IEC/EN/DIN EN 60747-5-2 Insulation Characteristics (HCPL-3020 and HCPL-0302 Option 060)
Description
Installation Classification per DIN VDE 0110/1.89, Table 1
for Rated Mains Voltage 150 V
rms
for Rated Mains Voltage 300 V
rms
for Rated Mains Voltage 600 V
rms
Climatic Classification
Pollution Degree (DIN VDE 0110/1.89)
Maximum Working Insulation Voltage
Input to Output Test Voltage, Method b
[1]
V
IORM
x 1.875 = V
PR
, 100% Production Test with t
m
= 1 sec,
Partial Discharge < 5 pC
Input to Output Test Voltage, Method a
[1]
V
IORM
x 1.5 = V
PR
, Type and Sample Test, t
m
= 60 sec,
Partial Discharge < 5 pC
Highest Allowable Overvoltage
(Transient Overvoltage t
ini
= 10 sec)
Safety-Limiting Values – Maximum Values Allowed in the Event of a
Failure.
Case Temperature
Input Current
[2]
Output Power
[2]
Insulation Resistance at T
S
, V
IO
= 500 V
1. Refer to the optocoupler section of the Isolation and Control Compo-
nents Designer’s Catalog, under Product Safety Regulations section,
(IEC/EN/DIN EN 60747-5-2), for a detailed description of Method a
and Method b partial discharge test profiles.
2. Refer to the following figure for dependence of P
S
and I
S
on ambient
temperature.
800
OUTPUT POWER – P
S
, INPUT CURRENT – I
S
700
600
500
400
300
200
100
0
0
25
50
75
100 125 150 175 200
P
S
(mW)
I
S
(mA)
Symbol
HCPL-3020 HCPL-0302 Unit
I – IV
I – III
I – II
55/100/21
2
55/100/21
2
566
V
peak
I – IV
I – III
V
IORM
630
V
PR
1181
1050
V
peak
V
PR
V
IOTM
945
6000
840
4000
V
peak
V
peak
T
S
I
S, INPUT
P
S, OUTPUT
R
S
175
230
600
>10
9
150
150
600
>10
9
°C
mA
mW
Ω
T
S
– CASE TEMPERATURE – C
5
