BCU87-SMDU

Description
Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon
CategoryDiscrete semiconductor    The transistor
File Size124KB,6 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric View All

BCU87-SMDU Overview

Small Signal Bipolar Transistor, 3A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon

BCU87-SMDU Parametric

Parameter NameAttribute value
MakerTT Electronics plc
package instructionSMALL OUTLINE, R-PSSO-F3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)3 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE
Minimum DC current gain (hFE)280
JESD-30 codeR-PSSO-F3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typePNP
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)150 MHz
BCU86-SMD
BCU87-SMD
MECHANICAL DATA
Dimensions in mm
4 .5
1 .6
1 .5
NPN/PNP EPITAXIAL PLANAR
SILICON TRANSISTOR
Ideal For High current Switching
Application
4 .2 5 m a x .
2 .5
FEATURES
• LOW V
CE(SAT)
0 .4 0
0 .5 0
1 .5
3 .0
1 .0
0 .4 0
• HIGH CURRENT CAPACITY AND WIDE ASO
• FAST SWITCHING SPEED
-
+
*
APPLICATIONS
SOT89
• VOLTAGE REGULATORS
• RELAY DRIVERS
• LAMP DRIVERS
• ELECTRICAL EQUIPMENT
ABSOLUTE MAXIMUM RATINGS
(Tcase = 25°C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
j
T
stg
Collector – Base voltage
Collector – Emitter voltage (I
B
= 0)
Emitter – Base voltage
Collector current
Collector Current (Pulse)
Collector Dissipation
(Mounted on Ceramic Board (250mm
2 x 0.8mm)
Junction Temperature
Storage Temperature
Telephone +44(0)1455 554711.
Fax +44(0)1455 558843.
E-mail:
magnatec@semelab.co.uk
Website:
http://www.semelab.co.uk
BCU86
60V
50V
6V
3A
6A
500mW
1.5W
150°C
BCU87
– 60V
– 50V
– 6V
– 3A
– 6A
–55 to 150°C
Prelim.9/98

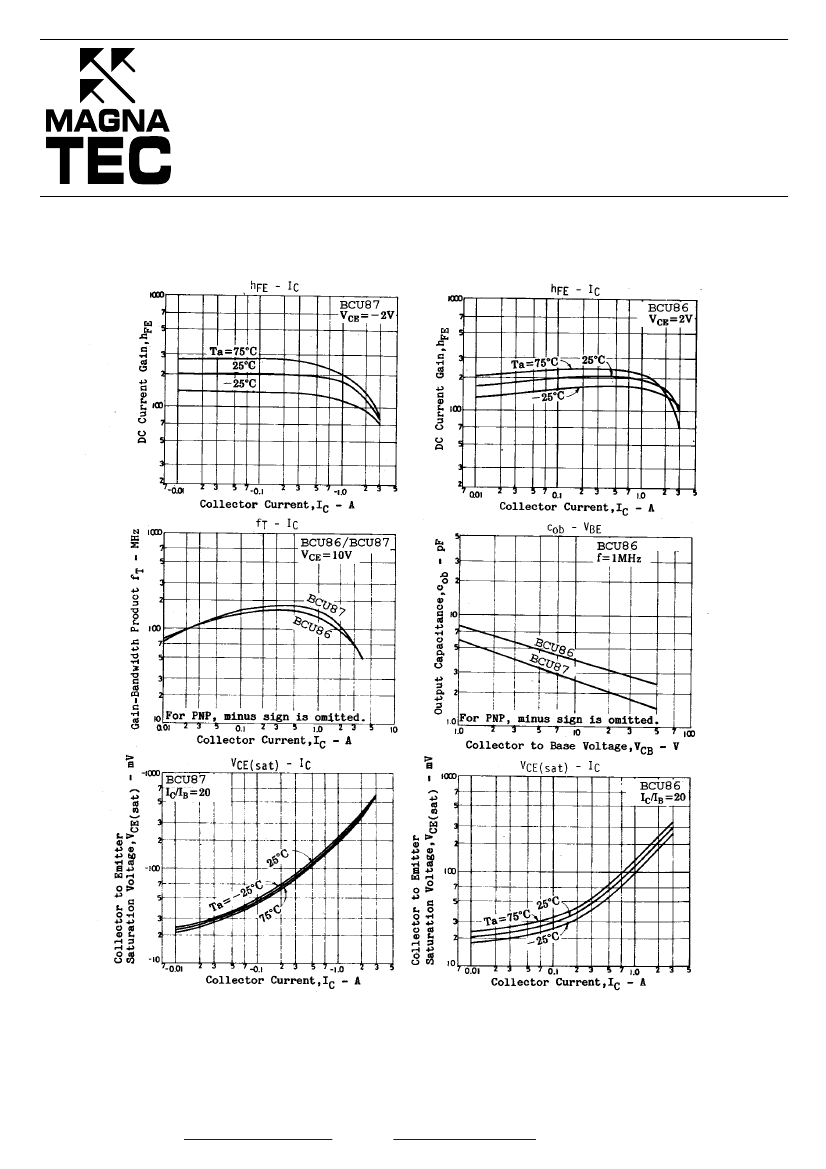

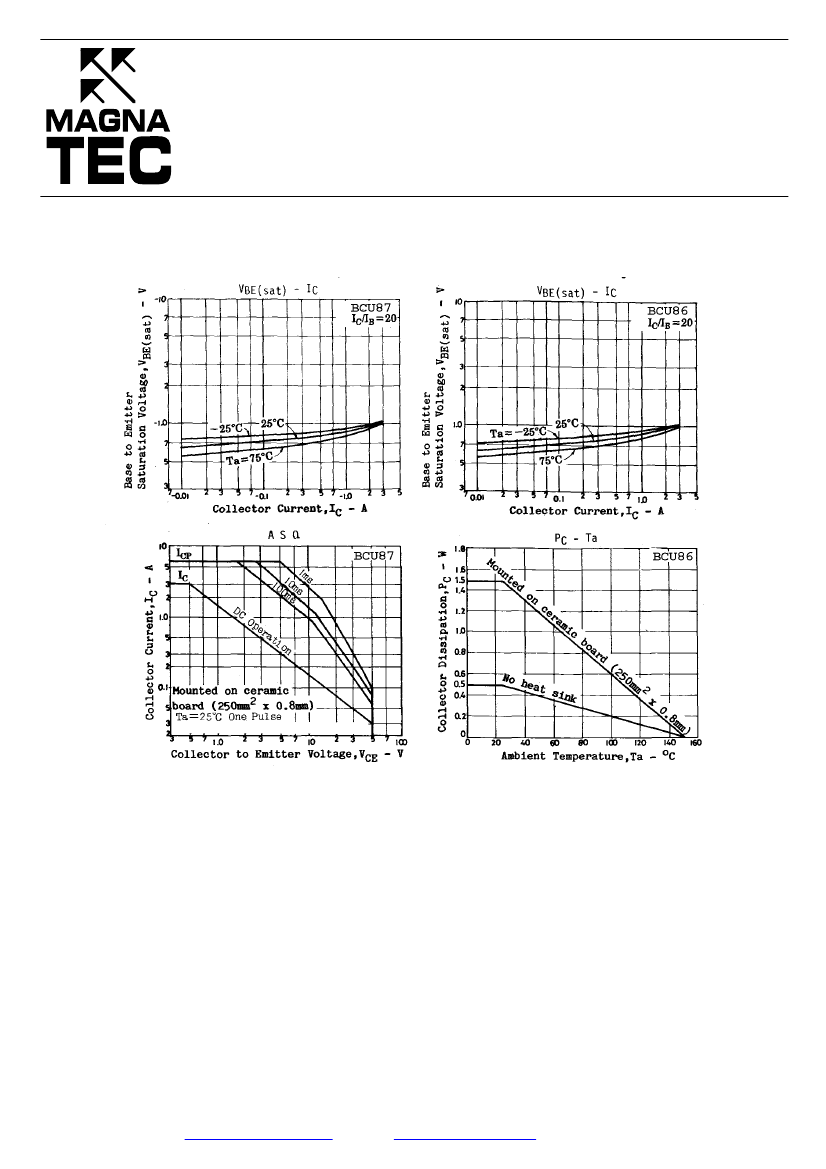

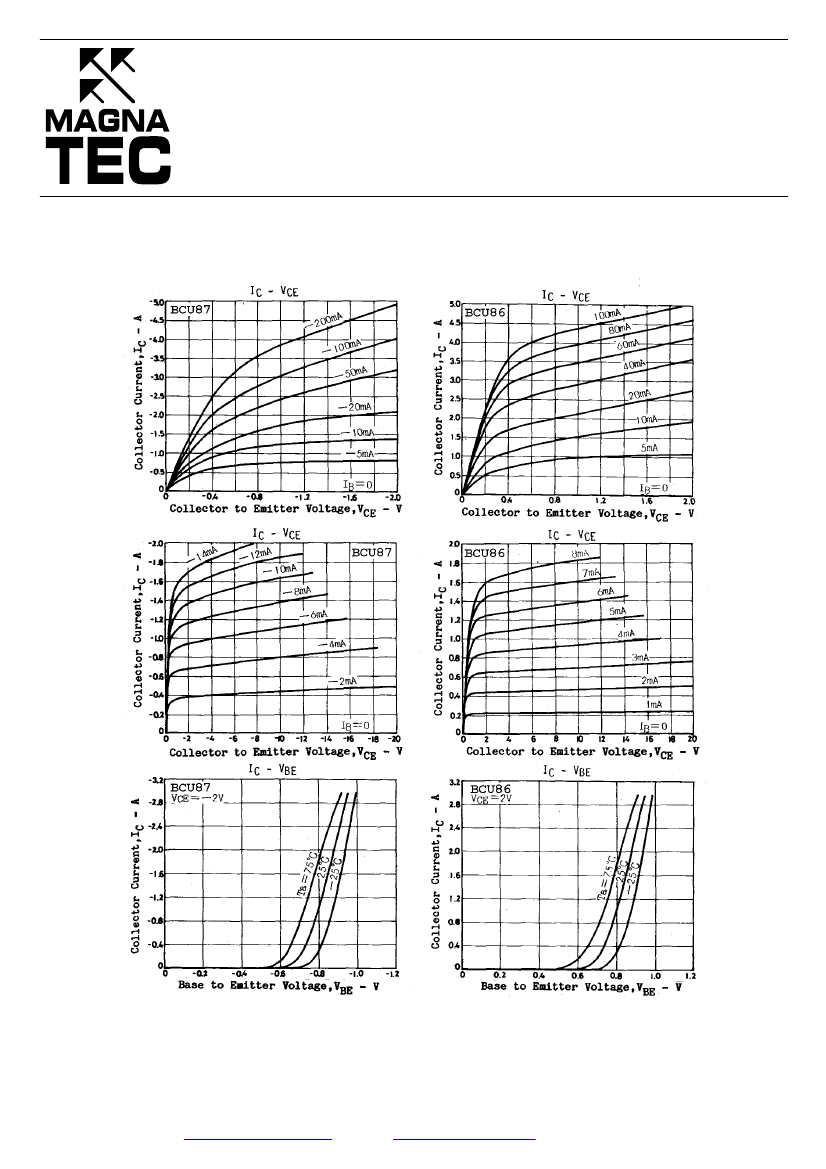

Magnatec.
