BFP67-GS08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BFP67-GS08

BFP67-GS08: DescriptionRF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,; CategoryDiscrete semiconductor The transistor; File Size564KB，10 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

BFP67-GS08 Overview

RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,

BFP67-GS08 Parametric

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Other features	LOW NOISE
Shell connection	COLLECTOR
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	10 V
Configuration	SINGLE
highest frequency band	MILLIMETER WAVE BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	7500 MHz

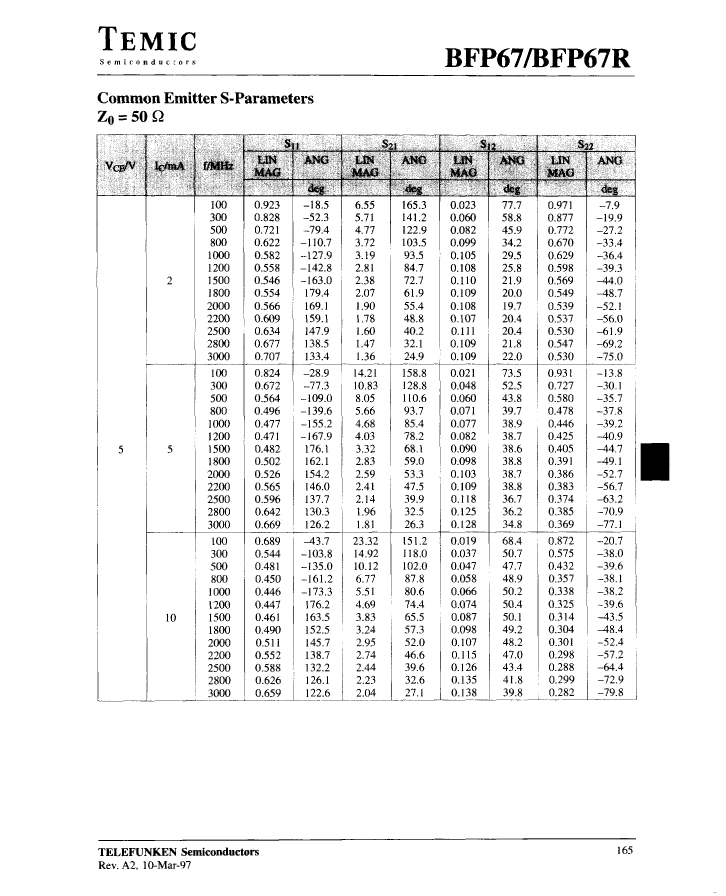

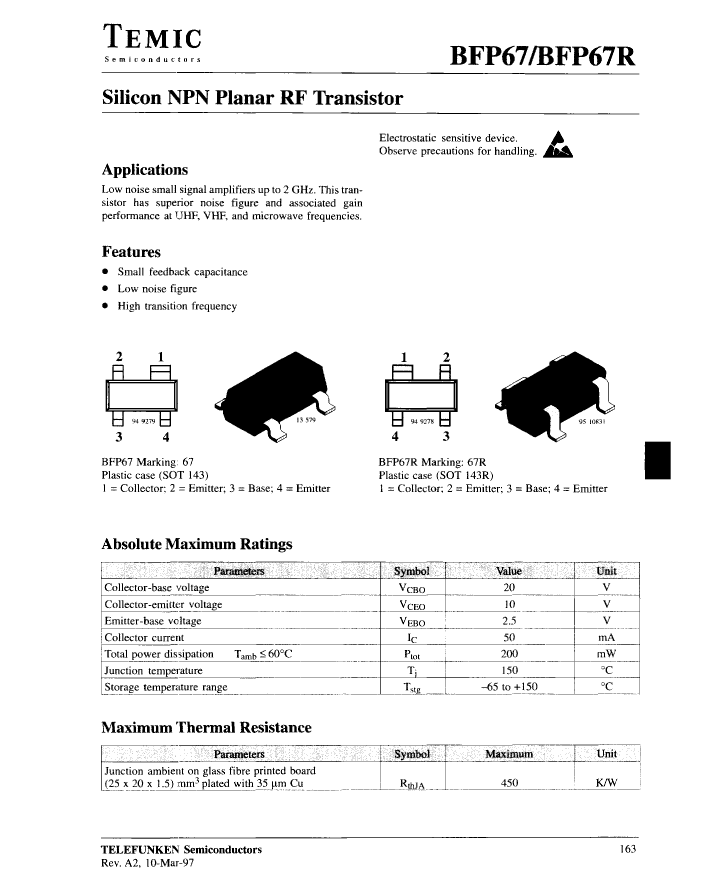

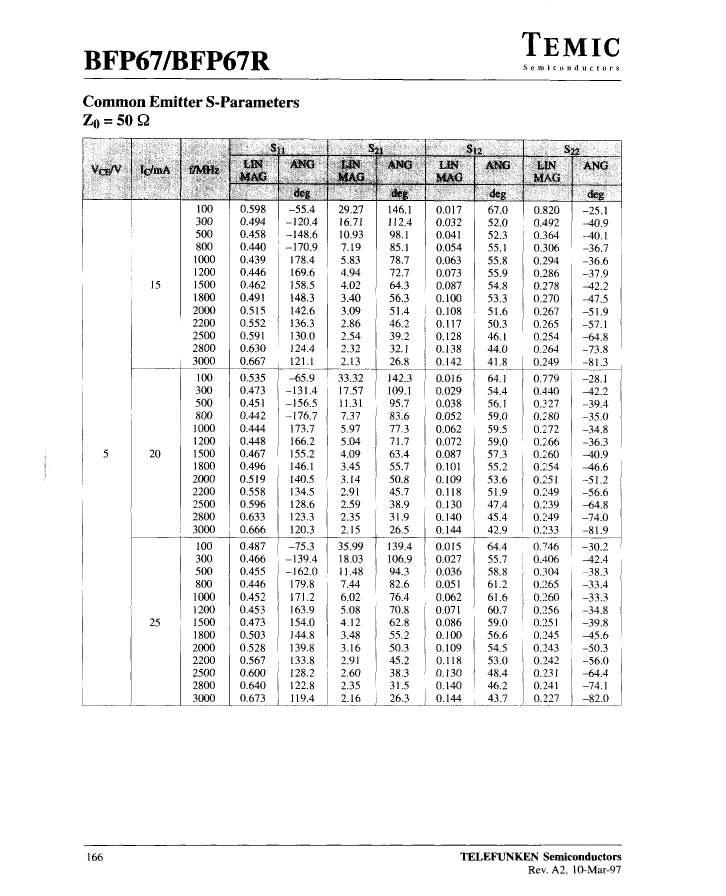

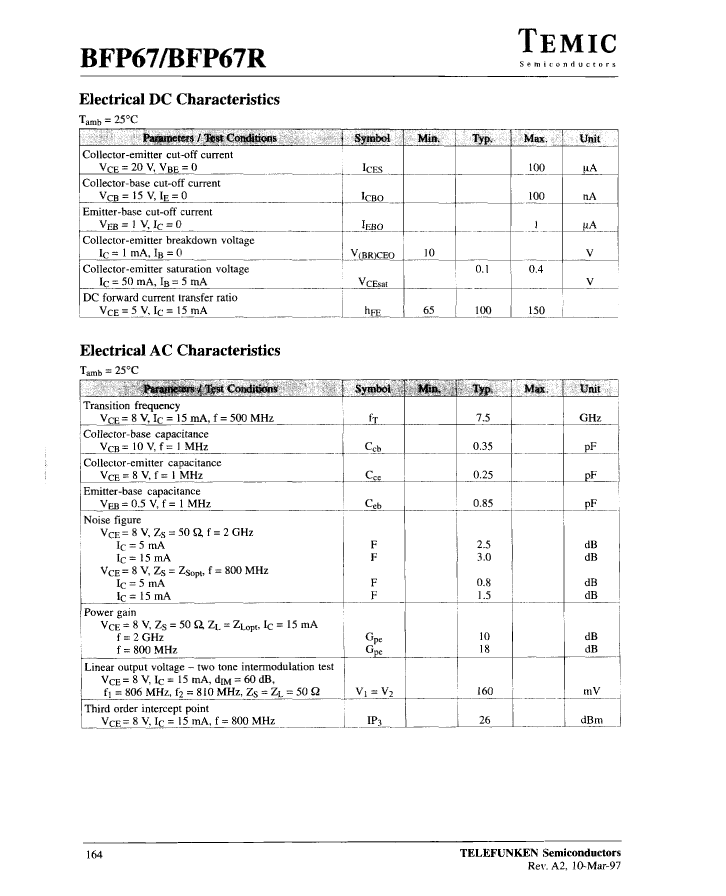

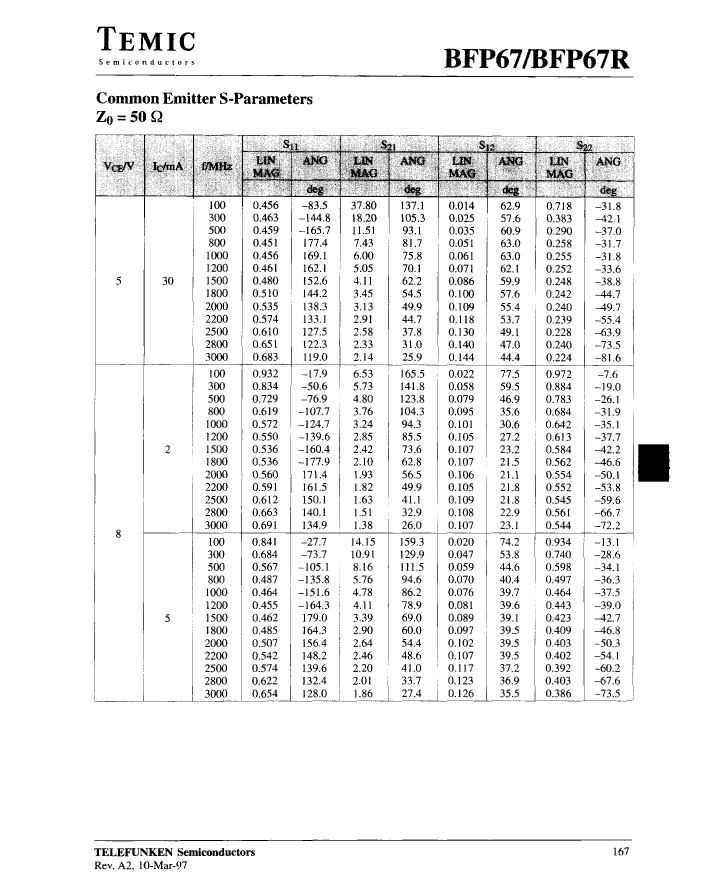

Preview

Download Datasheet

View All

BFP67-GS08 Related Products

	BFP67-GS08	BFP67R-GS08	BFP67R	BFP67	BFP67R-GS18	BFP67-GS18
Description	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Millimeter Wave Band, Silicon, NPN,
Maker	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Collector-emitter maximum voltage	10 V	10 V	10 V	10 V	10 V	10 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	MILLIMETER WAVE BAND	MILLIMETER WAVE BAND	MILLIMETER WAVE BAND	MILLIMETER WAVE BAND	MILLIMETER WAVE BAND	MILLIMETER WAVE BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	7500 MHz	7500 MHz	7500 MHz	7500 MHz	7500 MHz	7500 MHz
