RF1S45N06LE datasheet, PDF - EEWORLD Datasheet

RF1S45N06LE: DescriptionPower Field-Effect Transistor, 45A I(D), 60V, 0.028ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA; CategoryDiscrete semiconductor The transistor; File Size416KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

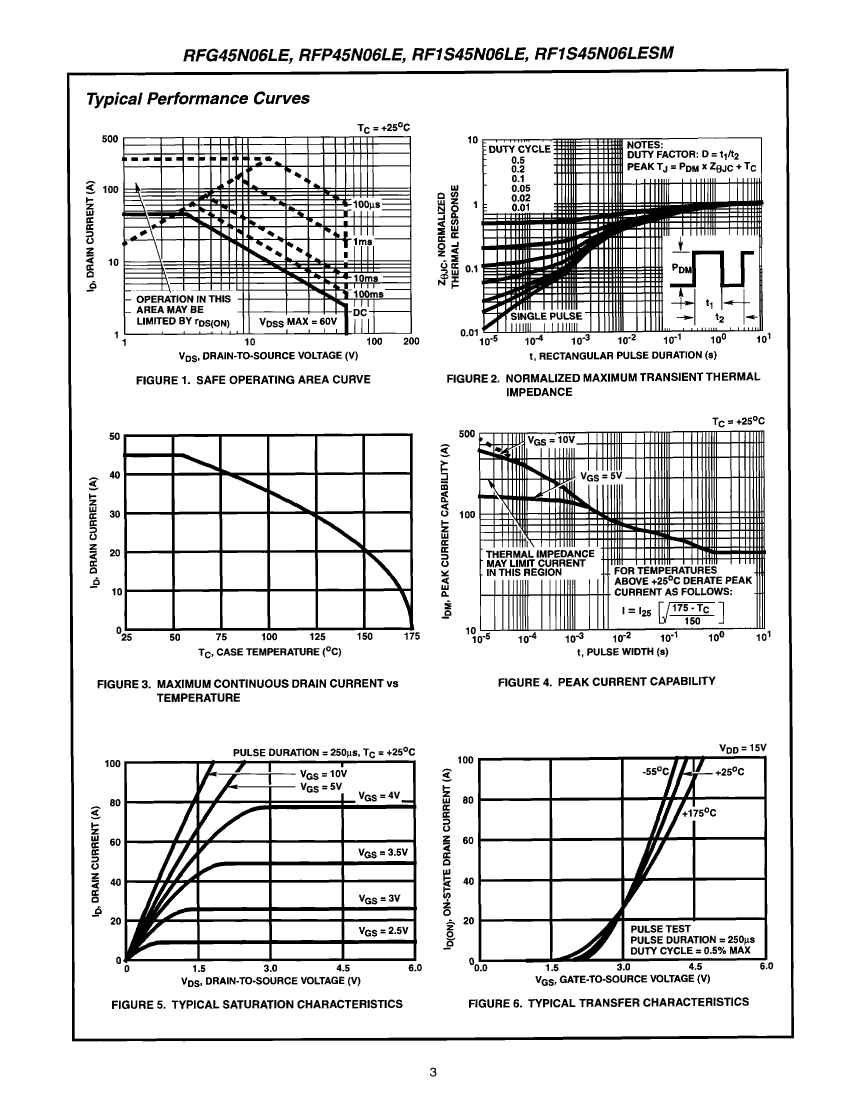

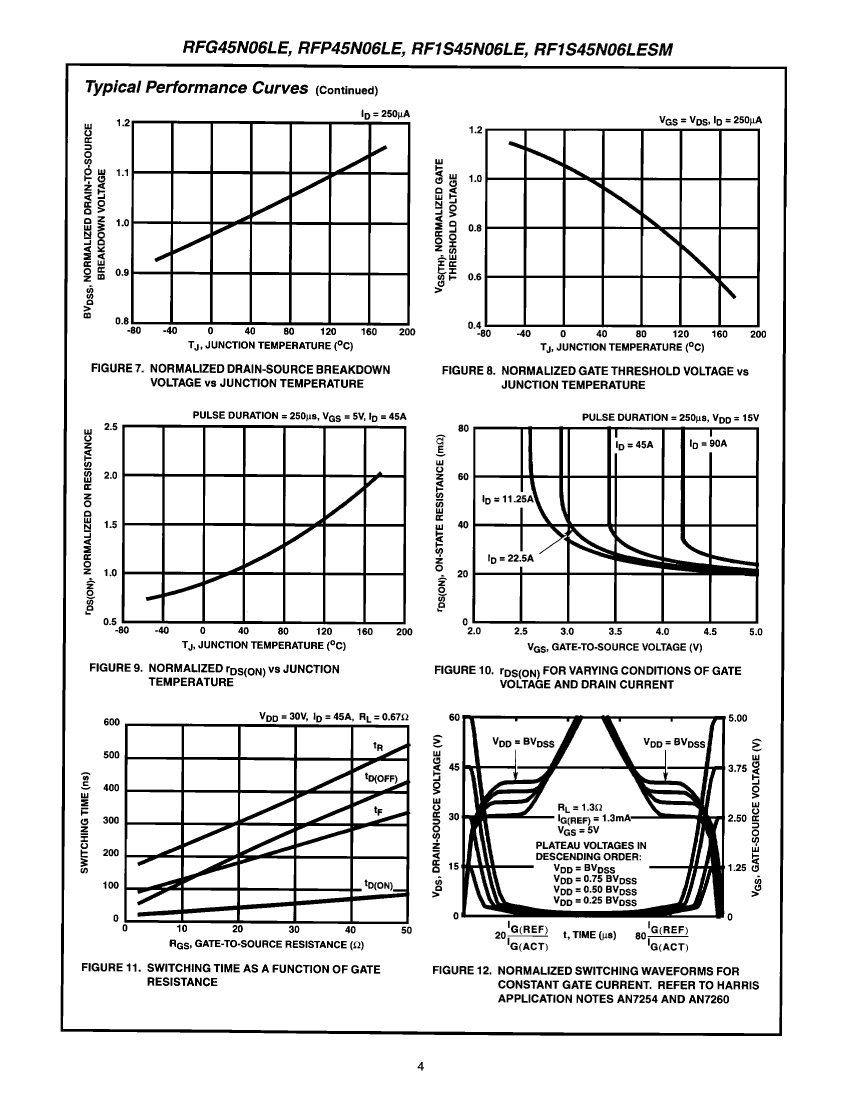

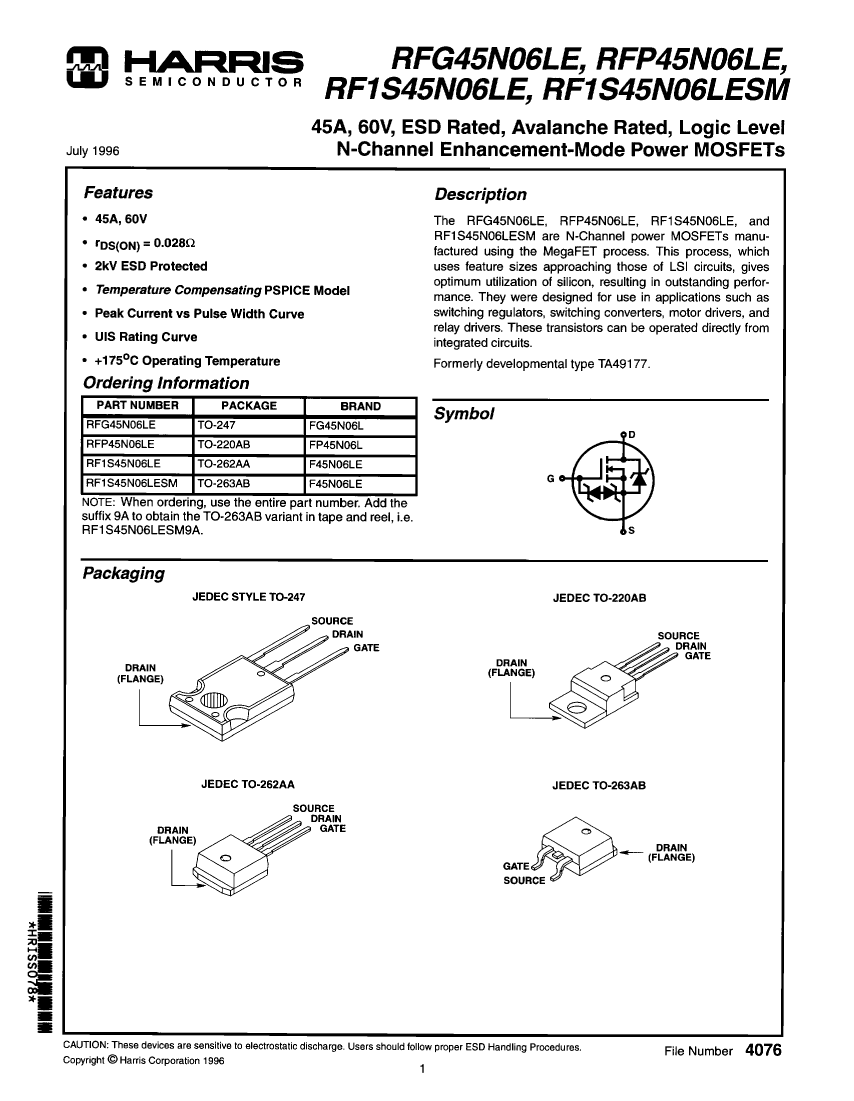

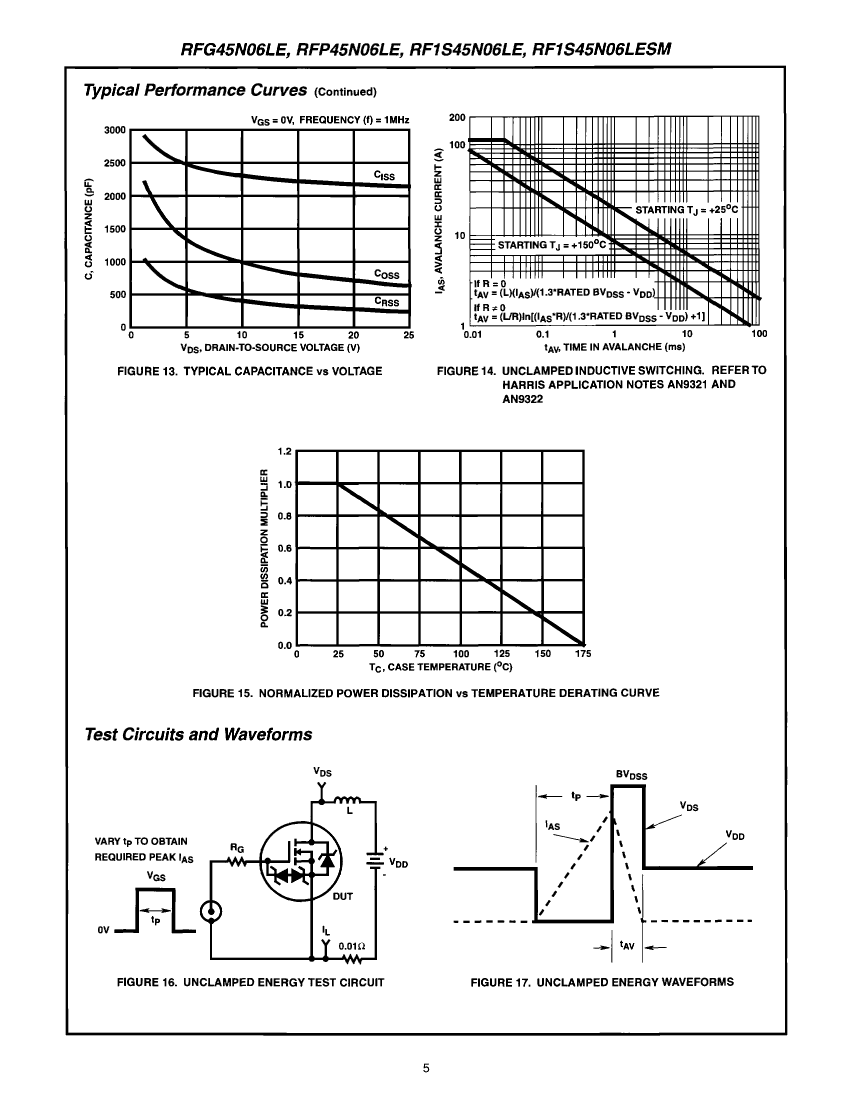

RF1S45N06LE Overview

Power Field-Effect Transistor, 45A I(D), 60V, 0.028ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA

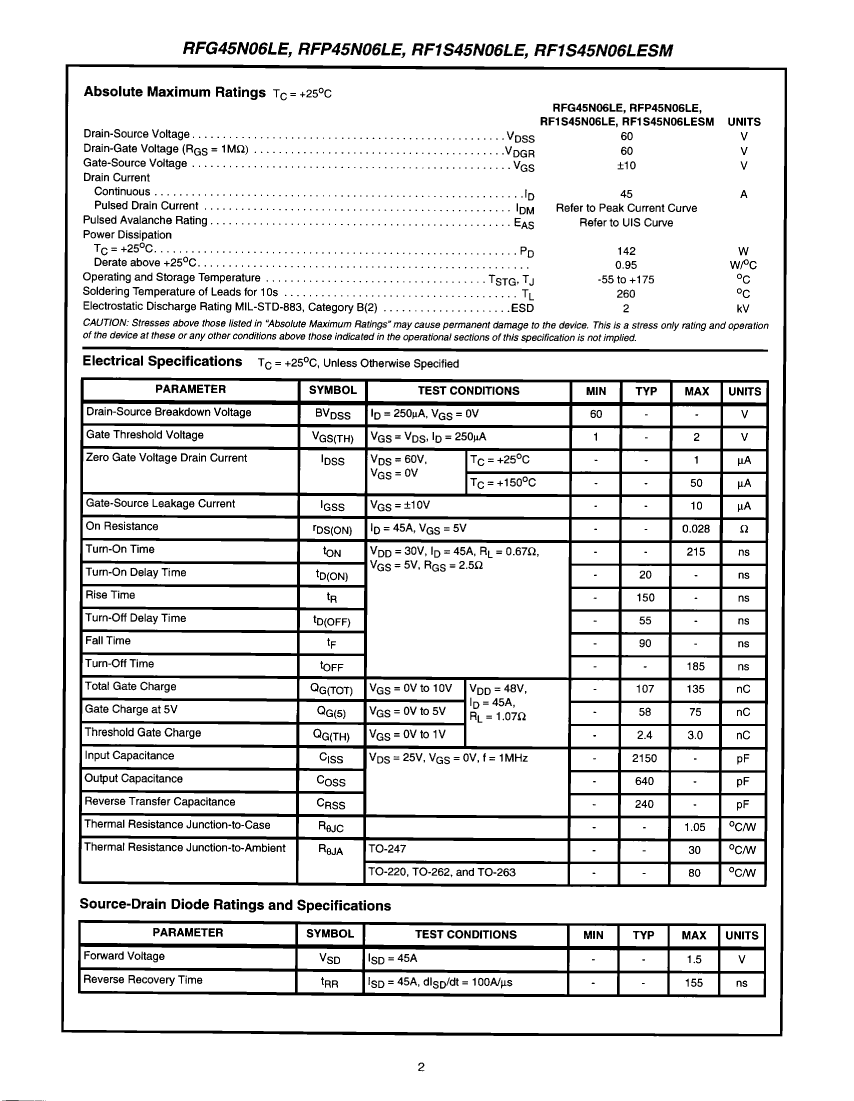

Parameter Name	Attribute value
Maker	Fairchild
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ESD PROTECTED, LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	45 A
Maximum drain-source on-resistance	0.028 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-262AA
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	RF1S45N06LE
Description	Power Field-Effect Transistor, 45A I(D), 60V, 0.028ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA
Maker	Fairchild
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ESD PROTECTED, LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	45 A
Maximum drain-source on-resistance	0.028 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-262AA
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
