BMR4540002/004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BMR4540002/004

BMR4540002/004: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 190W, Hybrid, EIGHTH-BRICK PACKAGE-16/15; CategoryPower/power management The power supply circuit; File Size2MB，37 Pages; ManufacturerEricsson; Websitehttp://www.ericsson.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BMR4540002/004 Overview

DC-DC Regulated Power Supply Module, 1 Output, 190W, Hybrid, EIGHTH-BRICK PACKAGE-16/15

BMR4540002/004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ericsson
Parts packaging code	MODULE
package instruction	,
Contacts	16/15
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL
Efficiency (main output)	93.3%
high	10.2 mm
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	53 V
JESD-30 code	R-XDMA-P15
length	58.4 mm
Maximum grid adjustment rate	0.42%
Maximum load regulation	0.36%
Humidity sensitivity level	3
Number of functions	1
Output times	1
Number of terminals	15
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	38 A
Maximum output voltage	6.7 V
Minimum output voltage	3 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Ripple voltage (main output)	0.02651 Vrms
Maximum seat height	10.2 mm
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal pitch	7.62 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	60
Maximum total power output	190 W
Fine-tuning/adjustable output	YES
width	22.7 mm

Preview

Download Datasheet

View All

SEC/S Kevin Zhou

EZHIXZH

Approved

Ericsson Internal

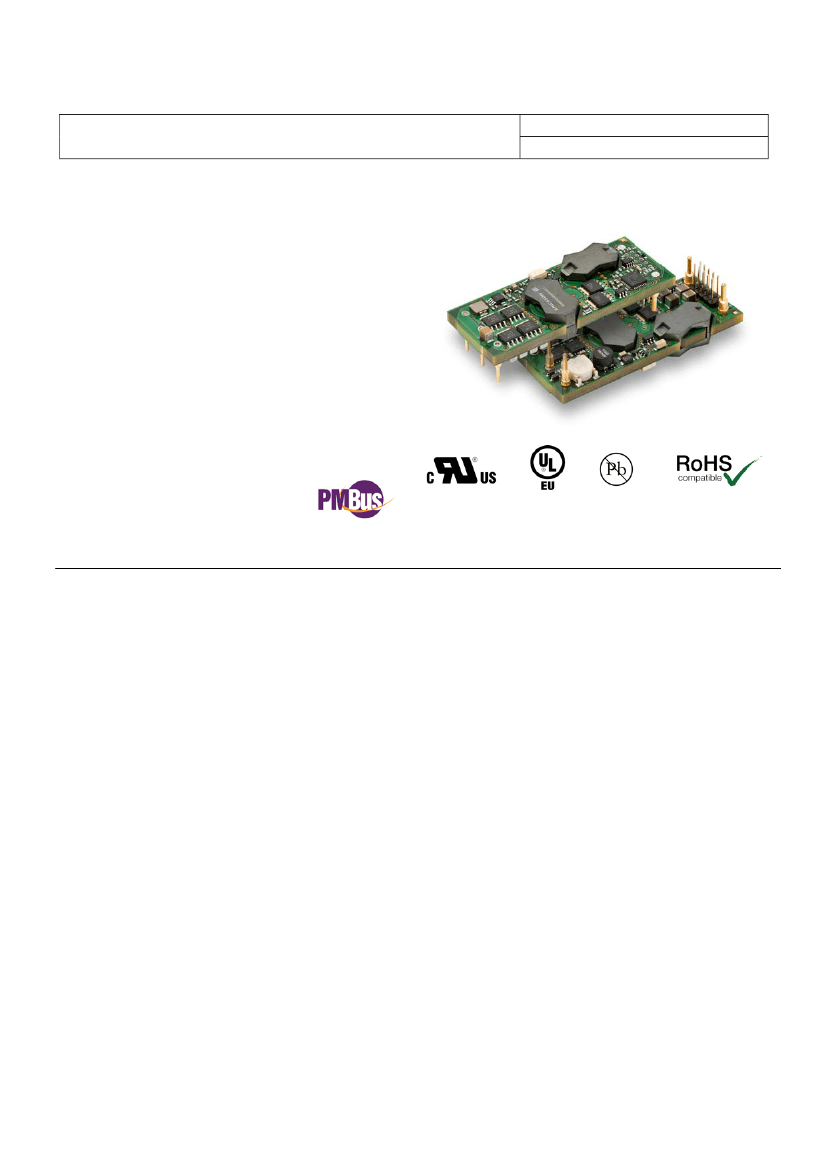

TABLE OF SPECIFICATION

PRODUCT CONTENTS

No.

1 (1)

(5)

Prepared (also subject responsible if other)

BMR454 series

SEC/S (Julia Zhou

SEC/D Kevin You)

Fully regulated Intermediate Bus Converters

2012-06-15

2012-08-09

Input 36-75 V, Output up to

A / 240 W

Key Features



Industry standard five pin Eighth-brick

58.4 x 22.7 x 10.2 mm (2.30 x 0.89 x 0.40 in.)



Optional digital PMBus interface



Fully regulated intermediate bus converter



High efficiency, typ. 95.5% at 12 Vout half load



+/- 2% output voltage tolerance band



1500 Vdc input to output isolation



2.5

million hours MTBF



Optional baseplate



ISO 9001/14001 certified supplier



PMBus Revision 1.1 compliant

Checked

Date

1/1301- BMR 454 Uen

Technical Speciﬁcation

EN/LZT 146

404

R7A

March

2013

Rev

Reference

Power Management



Configurable soft start/stop

Precision delay and ramp-up

Voltage sequencing and margining

Voltage/current/temperature monitoring

Wide output voltage range

Configurable protection features

Synchronization

Safety Approvals

Design for Environment

Meets requirements in high-

temperature lead-free soldering

processes

Contents

Ordering Information

General Information

Safety Specification

Absolute Maximum Ratings

Functional Description

Electrical Specification

3.3 V, 40 A / 132 W

5 V, 38 A / 190 W

9 V, 20 A / 180 W

12 V, 20 A / 240 W

EMC Specification

Operating Information

Thermal considerations

Connections

PMBus communications

Mechanical Information

Soldering Information

Delivery Information

Product Qualification Specification

............................................................. 2

............................................................. 4

............................................................. 5

............................................................. 6

BMR 454 0002/003............................... 7

BMR 454 0002/004............................. 10

BMR 454 0000/002............................. 13

BMR 454 0000/001............................. 16

BMR 454 0004/005............................. 19

........................................................... 22

........................................................... 23

........................................................... 26

........................................................... 27

........................................................... 28

........................................................... 31

........................................................... 34

........................................................... 35

........................................................... 37

BMR4540002/004 Related Products

	BMR4540002/004	BMR4540000/002	BMR4540002/003
Description	DC-DC Regulated Power Supply Module, 1 Output, 190W, Hybrid, EIGHTH-BRICK PACKAGE-16/15	DC-DC Regulated Power Supply Module, 1 Output, 180W, Hybrid, EIGHTH-BRICK PACKAGE-16/15	DC-DC Regulated Power Supply Module, 1 Output, 132W, Hybrid, EIGHTH-BRICK PACKAGE-16/15
Is it Rohs certified?	conform to	conform to	conform to
Parts packaging code	MODULE	MODULE	MODULE
Contacts	16/15	16/15	16/15
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	REMOTE SHUTDOWN	REMOTE SHUTDOWN	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL	UL	UL
Efficiency (main output)	93.3%	94%	91.2%
high	10.2 mm	10.2 mm	10.2 mm
Maximum input voltage	75 V	75 V	75 V
Minimum input voltage	36 V	36 V	36 V
Nominal input voltage	53 V	53 V	53 V
JESD-30 code	R-XDMA-P15	R-XDMA-P15	R-XDMA-P15
length	58.4 mm	58.4 mm	58.4 mm
Maximum grid adjustment rate	0.42%	0.5%	0.6%
Maximum load regulation	0.36%	0.33%	0.48%
Humidity sensitivity level	3	3	3
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	15	15	15
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Maximum output current	38 A	20 A	40 A
Maximum output voltage	6.7 V	13.2 V	6.7 V
Minimum output voltage	3 V	8.1 V	3 V
Nominal output voltage	5 V	9 V	3.3 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Ripple voltage (main output)	0.02651 Vrms	0.04242 Vrms	0.01767 Vrms
Maximum seat height	10.2 mm	10.2 mm	10.2 mm
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	7.62 mm	7.62 mm	7.62 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	60	60	60
Maximum total power output	190 W	180 W	132 W
Fine-tuning/adjustable output	YES	YES	YES
width	22.7 mm	22.7 mm	22.7 mm
Maker	Ericsson	-	Ericsson
