RJ High Precision Resistors
High Precision
Resistors
Precision Metal-Film Resistors for Low-Cost Uses
Preview

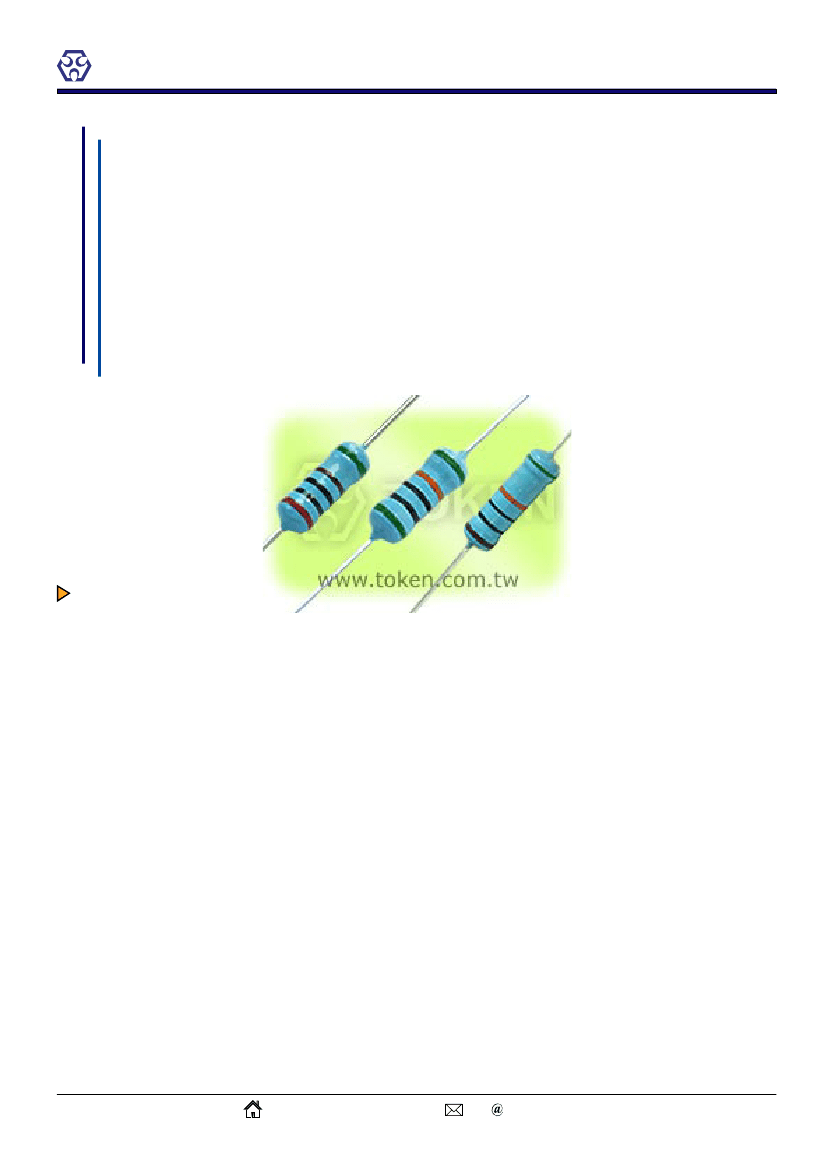

The RJ Series Precision Metal Film Resistors are manufactured using vacuum sputtering system to deposit
multiple layers of mixed metals and passivative materials onto a carefully treated high grade ceramic substrate,
the resistors are coated with layers of blue lacquer.
The metal-film technology is capable of supporting accuracy characteristics over a broad resistance range. Types
include axial through-hole and metal film fusible resistor for special purpose.
The RJ Metal Film Resistors is designed as a low-cost alternative to traditional solutions for precision
applications.
RJ Series equate Vishay, IRC, EBG, Panasonic Precision Devices with more competitive price and fast delivery.
Contact us with your specific needs.
Features :
- High thermal conductivity and specific gravity rods.
- Power Rating : 0.16W~3W, precision tolerance tight to A5(±0.05).
- Superior electrical TCR performances narrowed to C7(±5) ppm/°C.
- Epoxy coating, precision metal film, Lead (Pb)-free and RoHS compliant.
Applications :
- Telecom, Measuring and Calibration Equipment, Industrial Process Control Systems, Audio, Vedio
Version 2010
http://www.token.com.tw/
rfq token.com.tw
01 of 03
TOKEN
Quick Reference Data
RJ High Precision Resistors
d
H
Type
MIL-R-10509F type
Resistance range (Ω)
Resistance tolerance (%)
Temperature coefficient (ppm/°C)
Climatic category (LCT/UCT/days)
Rated dissipation (W)
P70
Operating voltage (V)
Umax
Short time over load voltage (V)
Umax
Operating Temperature range
Insulation voltage
Insulation resistance
L (Max.)
D (Max.)
Dimensions (mm)
d ± 0.1
H±2
Type
MIL-R-10509F type
Resistance range (Ω)
Resistance tolerance (%)
Temperature coefficient (ppm/°C)
Climatic category (LCT/UCT/days)
Rated dissipation (W) P70
Operating voltage (V) Umax
Short time over load voltage (V)
Umax
Operating Temperature range
Insulation voltage
Insulation resistance
L (Max.)
D (Max.)
Dimensions (mm)
d ± 0.1
H±2
RJ72
RN50
RJ73
RN55
L
RJ74
RJ16
RN60
RN65
0.1 ~ 22M
D
RJ17
RN70
RJ18
RN75
A5 ( ±0.05 ), B ( ±0.10 ), C ( ±0.25 ), D ( ±0.5 ), F ( ±1), J ( ±5.0)
C7 ( ±5 ), C6 ( ±10 ), C5 ( ±15 ), C3 ( ±25 ), C2 ( ±50 ), C1 ( ±100 )
55 / 125 / 56
0.16
0.25
0.50
1.0
2.0
3.0
200
250
300
350
450
500
400
500
600
700
900
1000
-55°C to 125°C
>500V
>1GΩ
3.8
6
10
12
16
26
2.0
2.5
3.5
4.5
5.5
8.6
0.45
0.5
0.6
0.7
0.8
0.8
24
24
26
26
26
26
RJ73S RJ74S RJ16M RJ16S RJ17M RJ17S RJ18M RJ18S
RN50
RN55
RN60 RN60 RN65
RN65
RN70
RN70
0.1 ~ 22M
A5 ( ±0.05 ), B ( ±0.10 ), C ( ±0.25 ), D ( ±0.50 ), F ( ±1.0 ), J ( ±5.0 )
C7 ( ±5 ), C6 ( ±10 ), C5 ( ±15 ), C3 ( ±25 ), C2 ( ±50 ), C1 ( ±100 )
55 / 125 / 56
0.25
0.50
1.00
1.00
2.00
2.00
3.00
3.00
250
300
350
350
400
400
450
450
500
600
700
700
800
800
900
900
3.8
2.00
0.5
24
6.0
2.54
0.6
24
6.3
2.54
0.6
24
-55°C to 125°C
>500V
>1GΩ
10
10
3.50
3.50
0.6
0.7
26
26
12
4.50
0.8
26
12
4.50
0.8
26
16
5.50
0.8
26
Notice : Resistance out of range, tolerance and temperature coefficient match are under request.
02 of 03
http://www.token.com.tw/
rfq token.com.tw
Version 2010
TOKEN
How to Order
RJ High Precision Resistors
RJ16
Part Number: RJ72
RJ73
RJ74
RJ73S
RJ74S
RJ16M
22R
B
C6
P
Rated Power (W)
Code
22R
220R
2K2
22K
Resistance Tolerance (%)
22Ω
220Ω
2.2KΩ
22KΩ
2.2MΩ
22MΩ
2M2
22M
Resistance Tolerance (%)
Code
A5
B
C
D
F
J
Code
C7
C6
C5
C3
C2
C1
Resistance Tolerance (%)
±0.05
±0.10
±0.25
±0.5%
±1.00
±5.00
Temperature Coefficient (ppm/°C)
±5
±10
±15
±25
±50
±100
Packaging
Bulk
Taping Box
Temperature Coefficient (ppm/°C)
Packaging
Code
P
TB
Back to 1st Page - Precision Resistors (RJ)
Version 2010
http://www.token.com.tw/
rfq token.com.tw
03 of 03
