DM54S195J

Description
Parallel In Parallel Out, S Series, 4-Bit, Right Direction, True Output, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size513KB,4 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

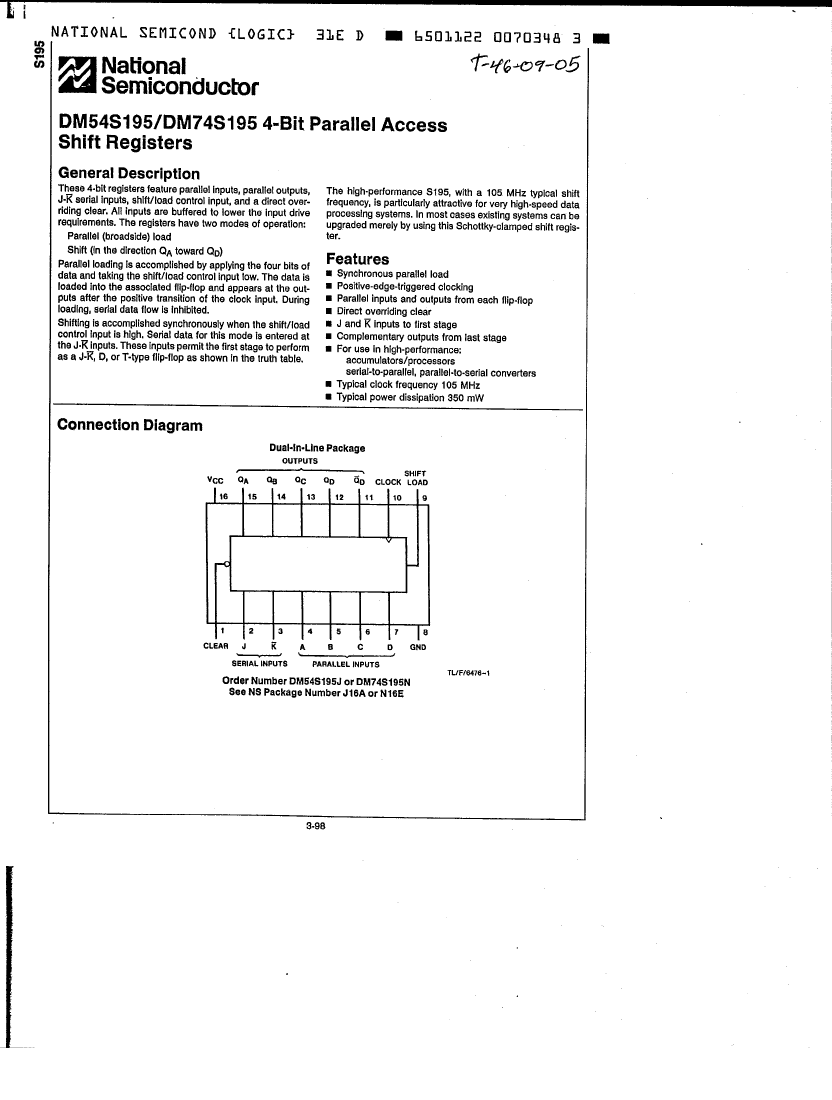

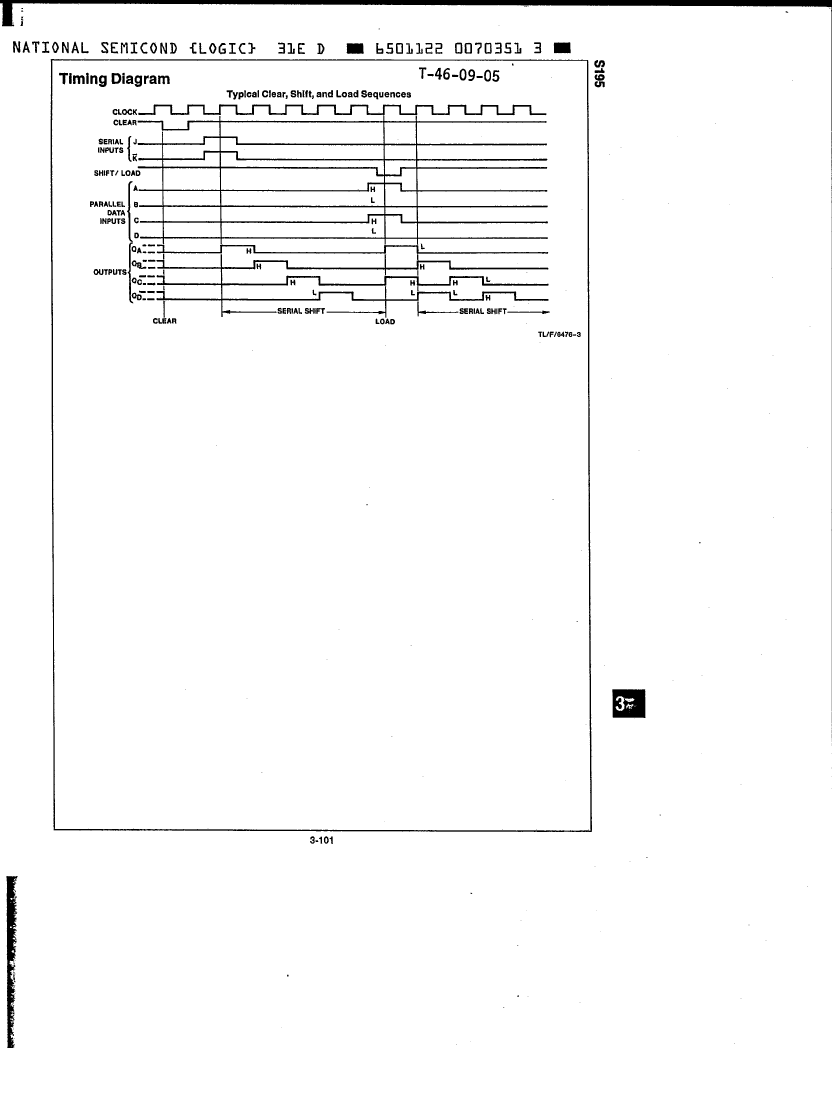

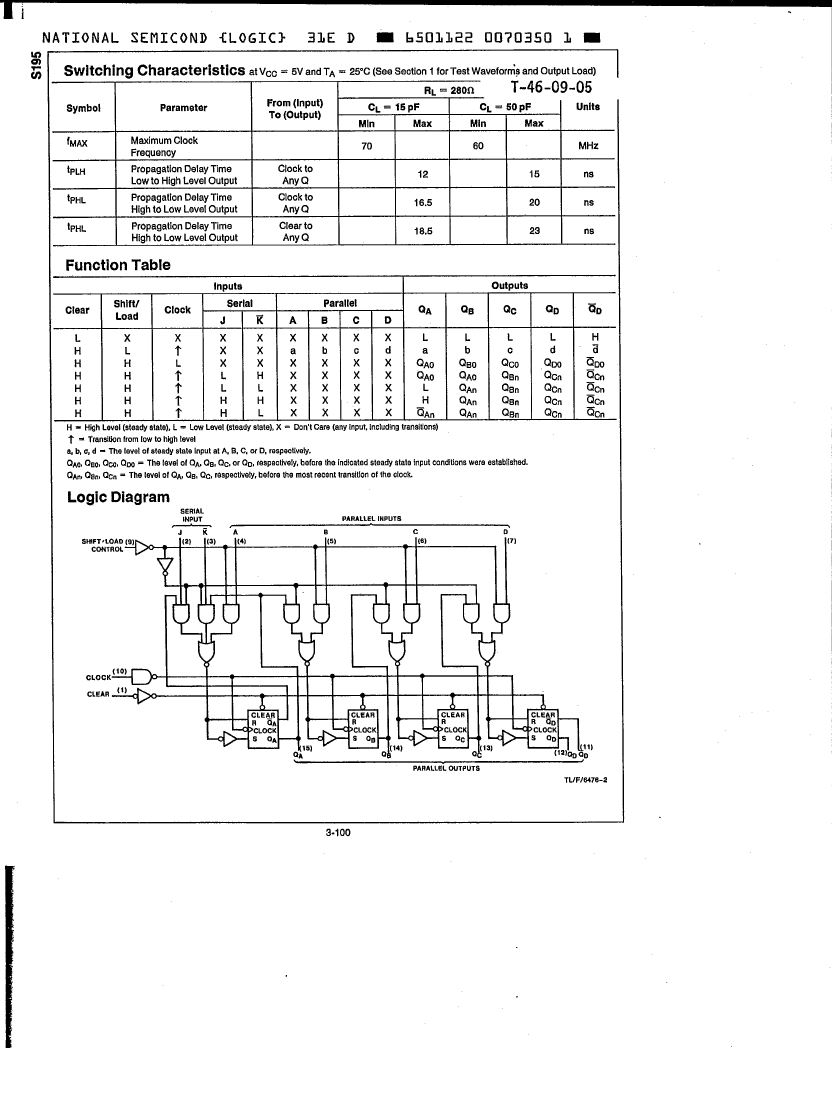

DM54S195J Overview

Parallel In Parallel Out, S Series, 4-Bit, Right Direction, True Output, CDIP16, CERAMIC, DIP-16

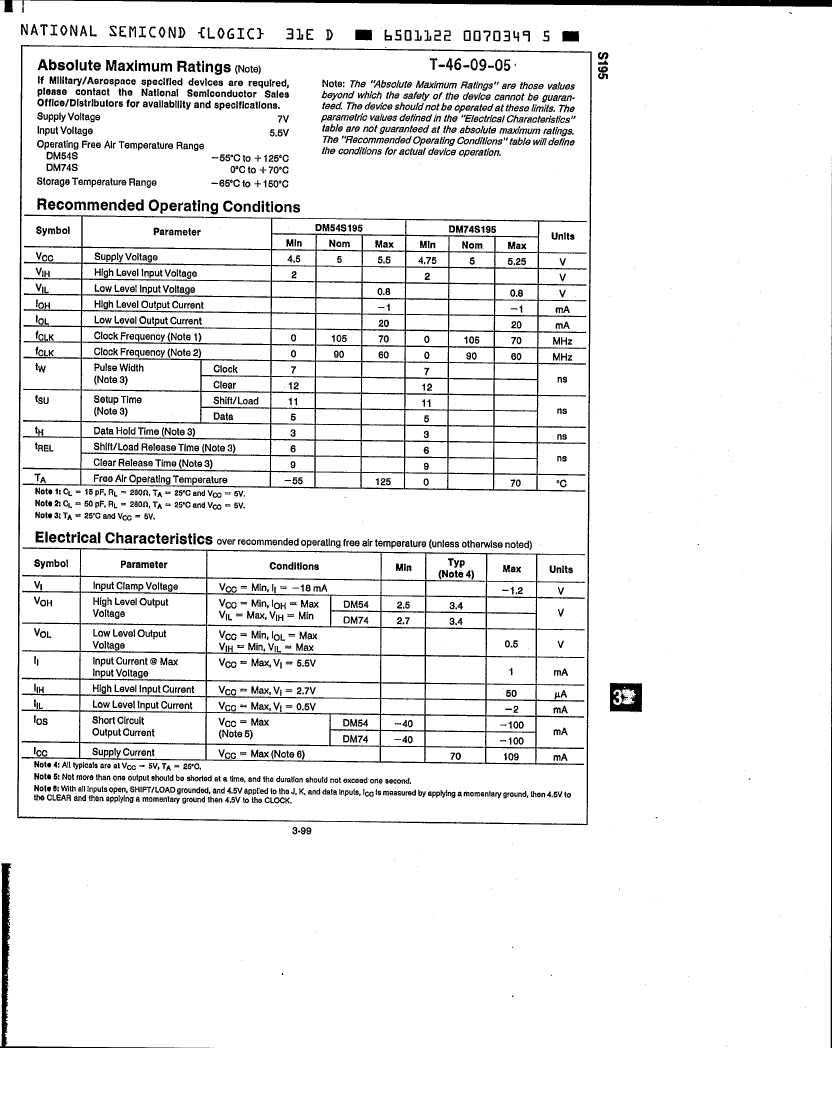

DM54S195J Parametric

Parameter NameAttribute value
MakerRochester Electronics
package instructionDIP,
Reach Compliance Codeunknown
Counting directionRIGHT
seriesS
JESD-30 codeR-GDIP-T16
Logic integrated circuit typePARALLEL IN PARALLEL OUT
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityTRUE
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)23 ns
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax70 MHz
COPYRIGHT 2010 Information Handling Services

DM54S195J Related Products

DM54S195J
Description Parallel In Parallel Out, S Series, 4-Bit, Right Direction, True Output, CDIP16, CERAMIC, DIP-16
Maker Rochester Electronics
package instruction DIP,
Reach Compliance Code unknown
Counting direction RIGHT
series S
JESD-30 code R-GDIP-T16
Logic integrated circuit type PARALLEL IN PARALLEL OUT
Number of digits 4
Number of functions 1
Number of terminals 16
Maximum operating temperature 125 °C
Minimum operating temperature -55 °C
Output polarity TRUE
Package body material CERAMIC, GLASS-SEALED
encapsulated code DIP
Package shape RECTANGULAR
Package form IN-LINE
propagation delay (tpd) 23 ns
Maximum seat height 5.08 mm
Maximum supply voltage (Vsup) 5.5 V
Minimum supply voltage (Vsup) 4.5 V
Nominal supply voltage (Vsup) 5 V
surface mount NO
Temperature level MILITARY
Terminal form THROUGH-HOLE
Terminal pitch 2.54 mm
Terminal location DUAL
Trigger type POSITIVE EDGE
width 7.62 mm
minfmax 70 MHz
