M5R65UQJ-RFREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> M5R65UQJ-RFREQ

M5R65UQJ-RFREQ: DescriptionPECL Output Clock Oscillator, 170MHz Min, 800MHz Max, ROHS COMPLIANT, J LEADED PACKAGE-6; CategoryPassive components oscillator; File Size385KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M5R65UQJ-RFREQ Overview

PECL Output Clock Oscillator, 170MHz Min, 800MHz Max, ROHS COMPLIANT, J LEADED PACKAGE-6

M5R65UQJ-RFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Other features	OUTPUT ENABLE FUNCTION
maximum descent time	0.55 ns
Frequency Adjustment - Mechanical	NO
frequency stability	35%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	170 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	PECL
Output load	50 OHM
physical size	14.22mm x 9.78mm x 3.68mm
longest rise time	0.55 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

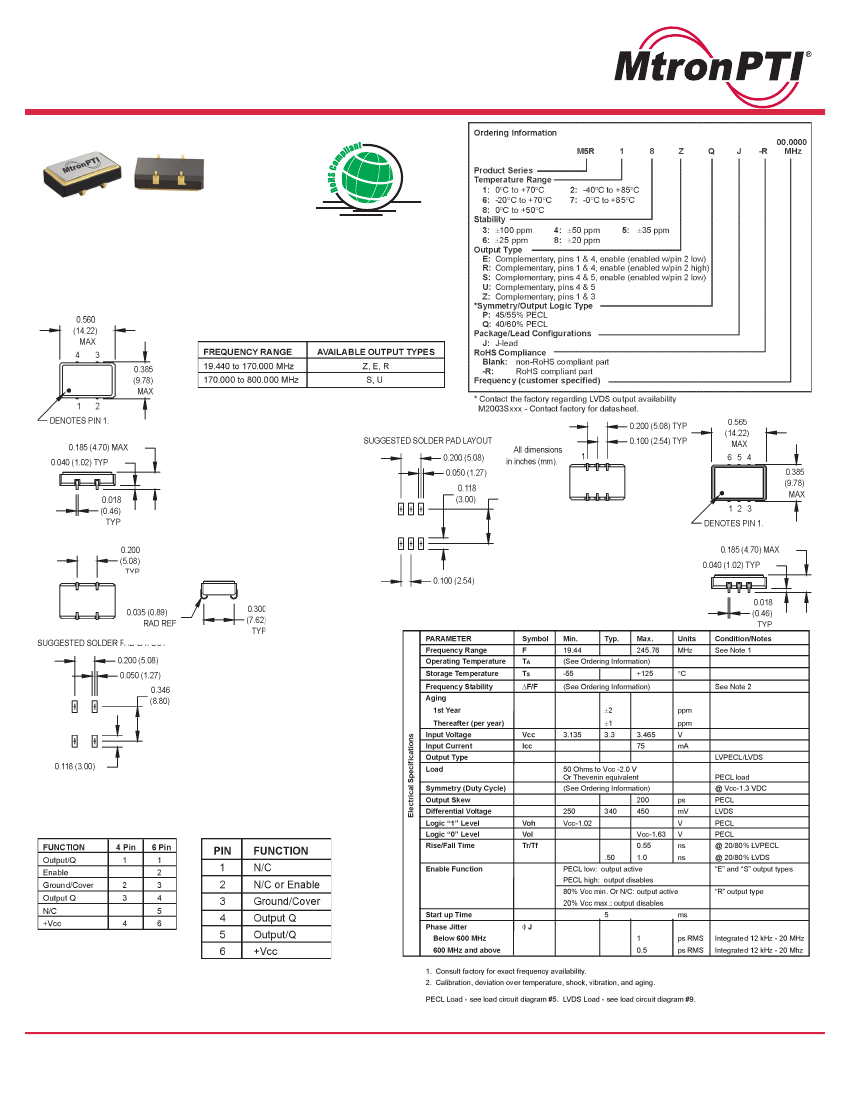

M5RJ Series

9x14 mm, 3.3 Volt, LVPECL/LVDS, Clock Oscillator

•

Integrated phase jitter of less than 1 ps

from 12 kHz to 20 MHz

Ideal for 10 and 40 Gigabit Ethernet and

Optical Carrier applications

Pin Connections

(Z, E, and R Output Types)

Pin Connections

(S and U Output Types)

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 08-13-07
