D2SB60-4003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D2SB60-4003

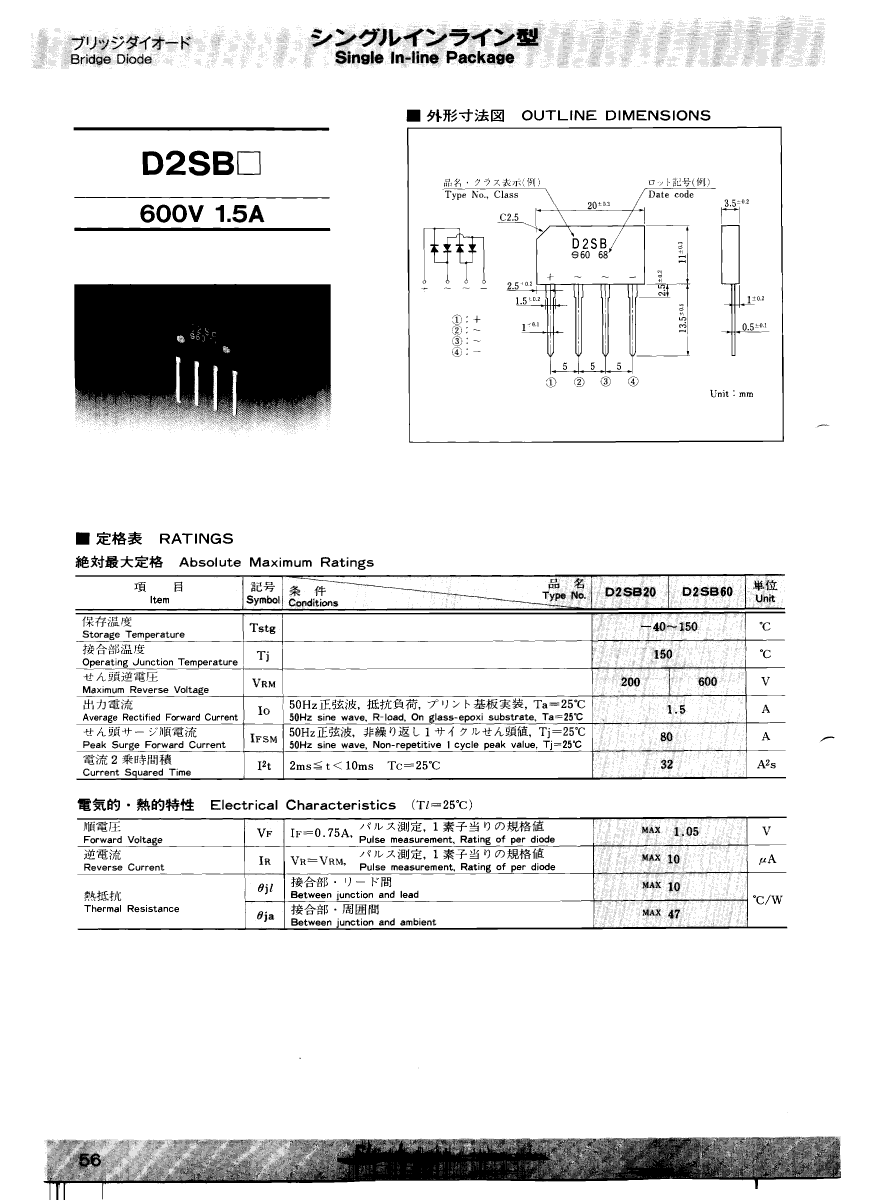

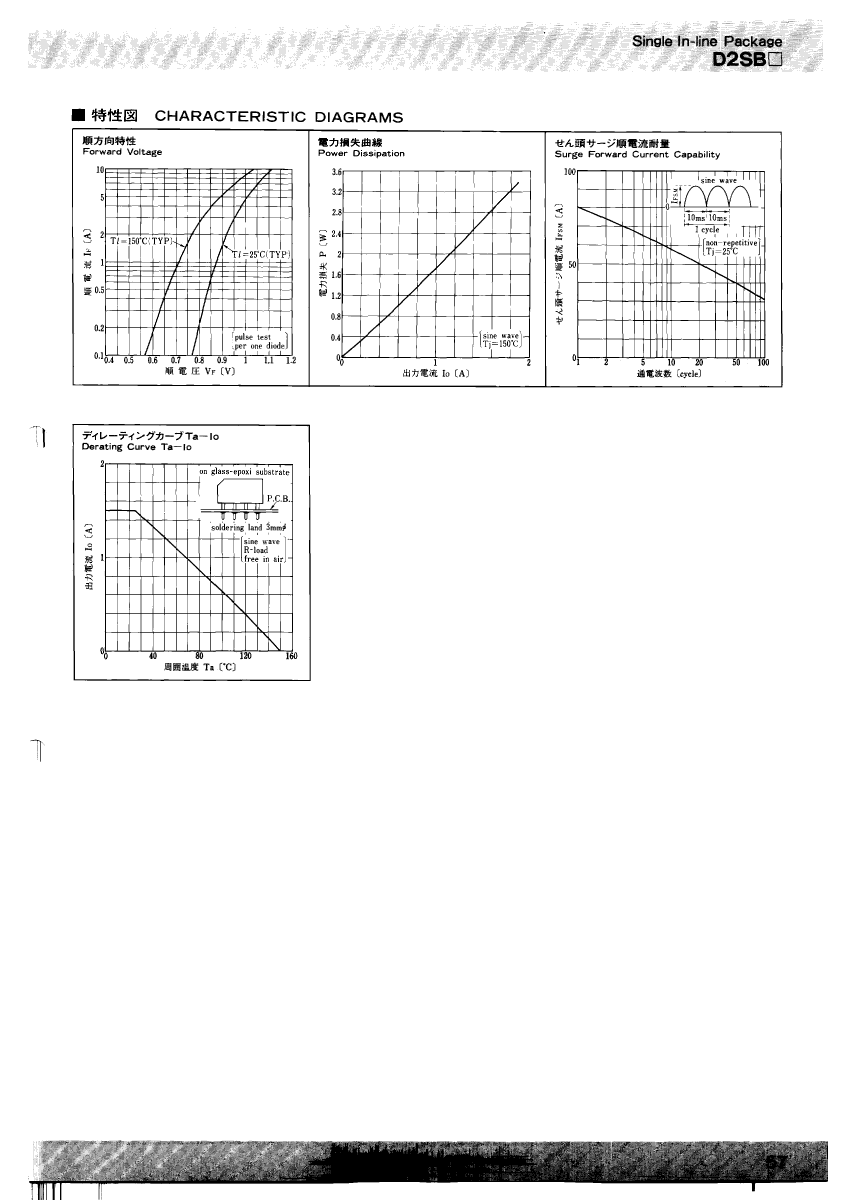

D2SB60-4003: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, Silicon,; CategoryDiscrete semiconductor diode; File Size309KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D2SB60-4003 Overview

Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,

D2SB60-4003 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	R-PSIP-T4
Reach Compliance Code	unknown
Minimum breakdown voltage	600 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	R-PSIP-T4
Maximum non-repetitive peak forward current	80 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

D2SB60-4003 Related Products

	D2SB60-4003	D2SB20-4001	D2SB20-4004	D2SB20-4003	D2SB60-4001	D2SB60-4004
Description	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,	Bridge Rectifier Diode, 1 Phase, 1.5A, Silicon,
package instruction	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Minimum breakdown voltage	600 V	200 V	200 V	200 V	600 V	600 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V
JESD-30 code	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4	R-PSIP-T4
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	80 A	80 A
Number of components	4	4	4	4	4	4
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.00001 µA	10 µA	10 µA	10 µA	0.00001 µA	0.00001 µA
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	SHINDENGEN	SHINDENGEN	-	SHINDENGEN	SHINDENGEN	SHINDENGEN
